python VTK三维重建出现错误

阿里发发 2021-02-08 10:21:50

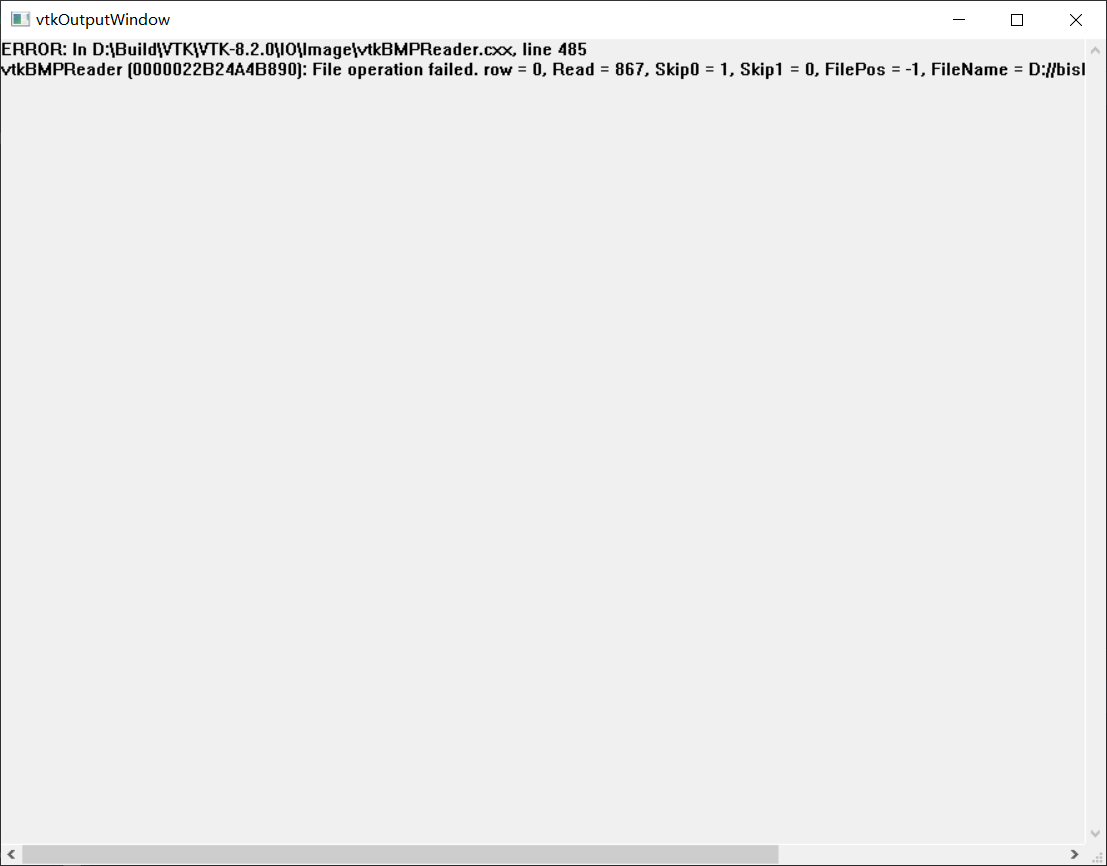

错误写的是File operation failed. row = 0, Read = 867, Skip0 = 1, Skip1 = 0, FilePos = -1, FileName = D://bisheshuju//all biaoding//50p//dong5//dong5//000.bmp
但是在网上找到的类似错误下面都没有回复解决方法
代码如下

import vtk



aRender = vtk.vtkRenderer()

Renwin = vtk.vtkRenderWindow()

Renwin.AddRenderer(aRender)

iren = vtk.vtkRenderWindowInteractor()

iren.SetRenderWindow(Renwin)



# 定义个图片读取接口

Jpg_Reader = vtk.vtkBMPReader()

Jpg_Reader.SetNumberOfScalarComponents(1)

Jpg_Reader.SetFileDimensionality(3) # 说明图像是三维的



Jpg_Reader.SetDataSpacing(3.2, 3.2, 1.5)

Jpg_Reader.SetDataExtent(0, 289, 0, 289, 0, 240)

# 设置图像的存放位置

Jpg_Reader.SetFilePrefix("D://bisheshuju//all biaoding//50p//dong5//dong5//")

# 设置图像前缀名字

Jpg_Reader.SetFilePattern("%s%03d.bmp")

Jpg_Reader.SetAllow8BitBMP(16)

Jpg_Reader.Update()

Jpg_Reader.SetDataByteOrderToLittleEndian()





contour = vtk.vtkMarchingCubes()

contour.SetInputConnection(Jpg_Reader.GetOutputPort())

contour.ComputeNormalsOn()

contour.SetValue(0, 175)





mapper = vtk.vtkPolyDataMapper()

mapper.SetInputConnection(contour.GetOutputPort())

mapper.ScalarVisibilityOff()



actor = vtk.vtkActor()

actor.SetMapper(mapper)



renderer = vtk.vtkRenderer()

renderer.SetBackground([0.1, 0.1, 0.5])

renderer.AddActor(actor)



window = vtk.vtkRenderWindow()

window.SetSize(512, 512)

window.AddRenderer(renderer)





interactor = vtk.vtkRenderWindowInteractor()

interactor.SetRenderWindow(window)



# 开始显示

window.Render()

interactor.Initialize()

interactor.Start()
