  • Titanic生存预测

    2019-05-27 10:21:00
    /home/zwt/PycharmProjects/test/Machine_Learning/Titanic/train.csv ' ) test = pd.read_csv( ' /home/zwt/PycharmProjects/test/Machine_Learning/Titanic/test.csv ' ) # Store our passenger ID for easy ...



    import pandas as pd
    #显示所有行(参数设置为None代表显示所有行,也可以自行设置数字)
    pd.set_option('display.max_columns',None)
    #显示所有列
    pd.set_option('display.max_rows',None)
    #设置数据的显示长度,默认为50
    pd.set_option('max_colwidth',200)
    #禁止自动换行(设置为Flase不自动换行,True反之)
    pd.set_option('expand_frame_repr', False)
    import numpy as np
    import re
    import sklearn
    import xgboost as xgb
    import seaborn as sns
    import matplotlib.pyplot as plt

    import plotly.offline as py
    py.init_notebook_mode(connected=True)
    import plotly.graph_objs as go
    import plotly.tools as tls

    import warnings
    warnings.filterwarnings('ignore')

    # Going to use these 5 base models for the stacking . 注意stacking的过程
    from sklearn.ensemble import (RandomForestClassifier, AdaBoostClassifier,
                                  GradientBoostingClassifier, ExtraTreesClassifier)
    from sklearn.svm import SVC
    from sklearn.model_selection import KFold

    # Load in the train and test datasets
    train = pd.read_csv('/home/zwt/PycharmProjects/test/Machine_Learning/Titanic/train.csv')
    test = pd.read_csv('/home/zwt/PycharmProjects/test/Machine_Learning/Titanic/test.csv')

    # Store our passenger ID for easy access
    PassengerId = test['PassengerId']

    train.head(3)

    full_data = [train,test]
    #下面自己手动添加一下特征值到数据集里

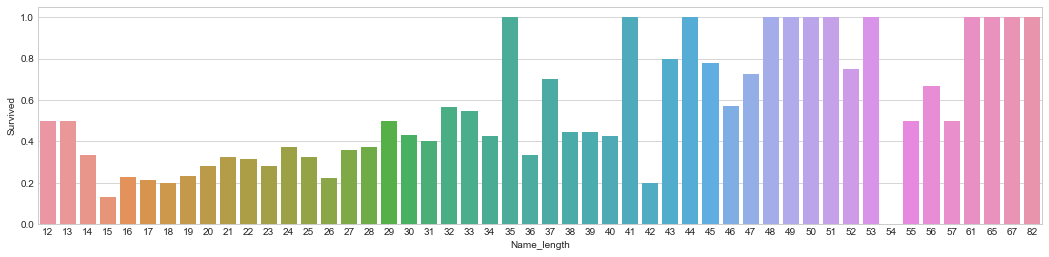

    #Features1:名字长度
    train['Name_length'] = train['Name'].apply(len)
    test['Name_length'] = test['Name'].apply(len)

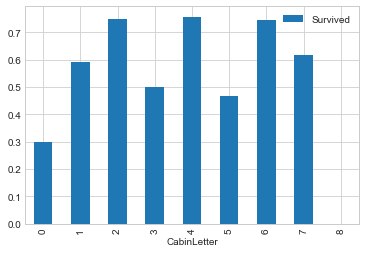

    #Features2:乘客是否有隔间
        #type(x)为float则记为1,否则记为0,空值虽然显示为NAN但其的类型为float,如 type(train['Cabin'][0])输出为float,type(train['Cabin'][1])输出为str
    train['Has_cabin'] = train['Cabin'].apply(lambda x: 0 if type(x) == float else 1)
    test['Has_cabin'] = test['Cabin'].apply(lambda x: 0 if type(x) == float else 1)
    #Feature3:家庭关系进阶版,将原始数据中定义家庭关系的两个变量SibSp和Parch结合起来
    for dataset in full_data:
        dataset['FamilySize'] = dataset['SibSp'] + dataset['Parch'] + 1
    #Feature4:是否独自一人在船上,根据家庭关系进阶版设置的特征
    for dataset in full_data:
        dataset['IsAlone'] = 0
        dataset.loc[dataset['FamilySize'] == 1, 'IsAlone'] = 1

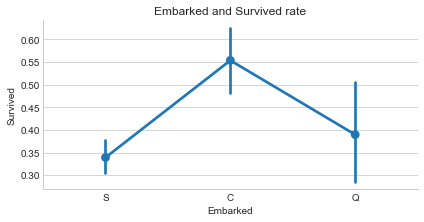

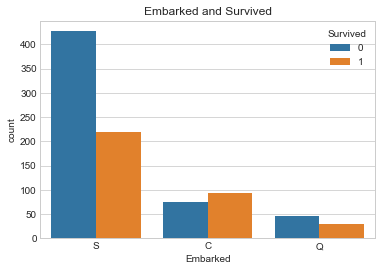

    #填补登船港未知的数据
    for dataset in full_data:
        dataset['Embarked'] = dataset['Embarked'].fillna('S')

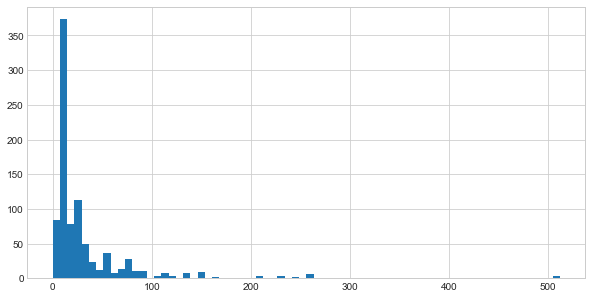

    #填补票价的空值并生成新特征Feature5
    for dataset in full_data:
        dataset['Fare'] = dataset['Fare'].fillna(train['Fare'].median())
    train['CategoricalFare'] = pd.qcut(train['Fare'], 4)  #pd.qcut是为了把票价分成一个个区间,注意qcut和cut的区别

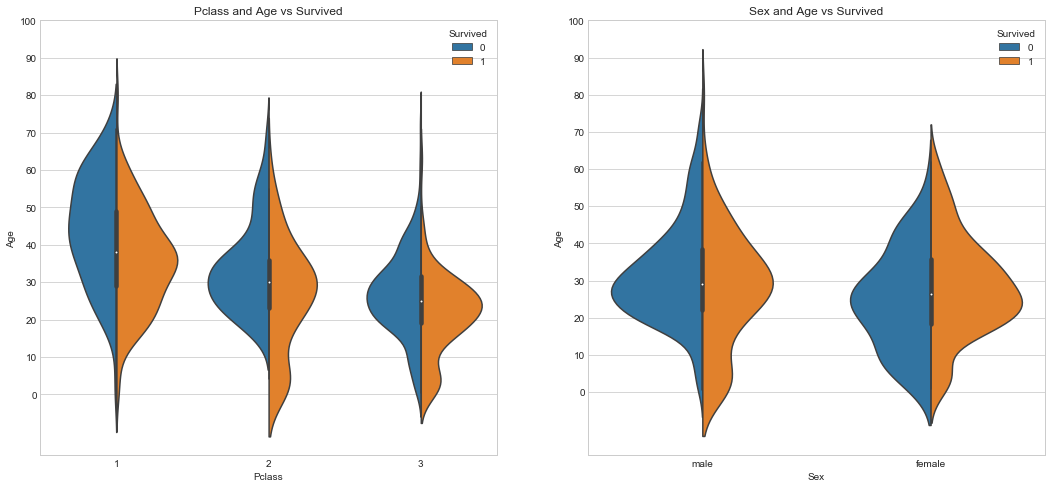

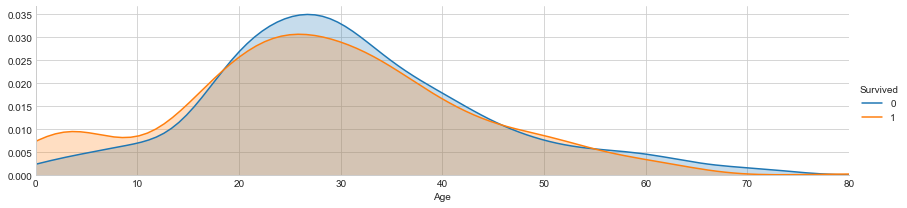

    #对年龄空值进行填补
    for dataset in full_data:
        age_avg = dataset['Age'].mean()
        age_std = dataset['Age'].std()
        age_null_count = dataset['Age'].isnull().sum()
        age_null_random_list = np.random.randint(age_avg - age_std, age_avg + age_std, size = age_null_count)
        dataset['Age'][np.isnan(dataset['Age'])] = age_null_random_list
        dataset['Age'] = dataset['Age'].astype(int)
    train['CategoricalAge'] = pd.cut(train['Age'], 5)   #年龄分区
    #定义函数对乘客name一栏中的称谓进行提取
    def get_title(name):
        title_search = re.search('([A-Za-z]+)\.', name)
        if title_search:
            return title_search.group(1)
        return ""

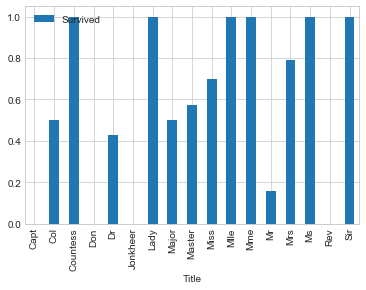

    #Feature5:乘客称谓
    for dataset in full_data:
        dataset['Title'] = dataset['Name'].apply(get_title)

    for dataset in full_data:
        dataset['Title'] = dataset['Title'].replace(['Lady', 'Countess','Capt', 'Col','Don', 'Dr', 'Major', 'Rev', 'Sir', 'Jonkheer', 'Dona'], 'Rare')

        dataset['Title'] = dataset['Title'].replace('Mlle', 'Miss')
        dataset['Title'] = dataset['Title'].replace('Ms', 'Miss')
        dataset['Title'] = dataset['Title'].replace('Mme', 'Mrs')

    #映射特征,全部转换为数字变量
    for dataset in full_data:

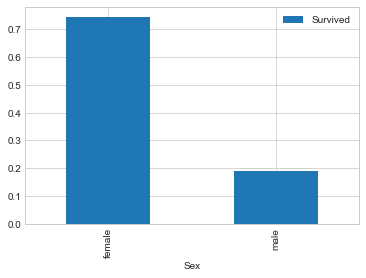

        #mapping sex
        dataset['Sex'] = dataset['Sex'].map({'female':0, 'male':1}).astype(int)
        #mapping titles
        title_mapping = {'Mr':1 ,'Miss':2, 'Mrs':3, 'Master':4, 'Rare':5}
        dataset['Title'] = dataset['Title'].map(title_mapping)
        dataset['Title'] = dataset['Title'].fillna(0)
        # Mapping Embarked
        dataset['Embarked'] = dataset['Embarked'].map({'S': 0, 'C': 1, 'Q': 2}).astype(int)
        # Mapping Fare
        dataset.loc[dataset['Fare'] <= 7.91, 'Fare'] = 0
        dataset.loc[(dataset['Fare'] > 7.91) & (dataset['Fare'] <= 14.454), 'Fare'] = 1
        dataset.loc[(dataset['Fare'] > 14.454) & (dataset['Fare'] <= 31), 'Fare'] = 2
        dataset.loc[dataset['Fare'] > 31, 'Fare'] = 3
        dataset['Fare'] = dataset['Fare'].astype(int)
        # Mapping Age
        dataset.loc[dataset['Age'] <= 16, 'Age'] = 0
        dataset.loc[(dataset['Age'] > 16) & (dataset['Age'] <= 32), 'Age'] = 1
        dataset.loc[(dataset['Age'] > 32) & (dataset['Age'] <= 48), 'Age'] = 2
        dataset.loc[(dataset['Age'] > 48) & (dataset['Age'] <= 64), 'Age'] = 3
        dataset.loc[dataset['Age'] > 64, 'Age'] = 4


    #数据处理完毕,选择特征
    drop_elements = ['PassengerId', 'Name', 'Ticket', 'Cabin', 'SibSp']
    train = train.drop(drop_elements, axis = 1)
    train = train.drop(['CategoricalAge', 'CategoricalFare'], axis = 1)
    test  = test.drop(drop_elements, axis = 1)

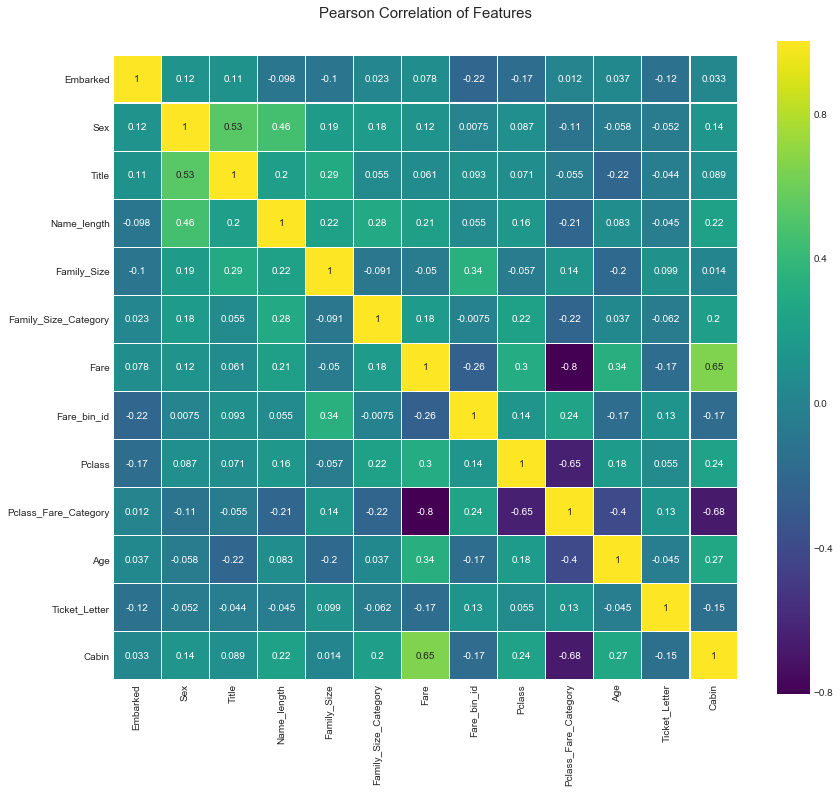

    #画热力图看各个特征值之间的关联度
    colormap = plt.cm.RdBu
    plt.figure(figsize = (14,12))
    plt.title('Pearson Correlation of Features', y = 1.05, size = 15)
    sns.heatmap(train.astype(float).corr(), linewidths = 0.1, vmax = 1.0, square = True, cmap = colormap, linecolor = 'white', annot = True)
    #结果显示,除了Family size和Parch之间,各特征之间没有较高的相关性,对机器学习是有帮助的,说明各特征之间具有较强的独立性,包含更多的信息、更少的信息冗余

    #编写类来帮助后面我们调用不同的分类方法
    # Some useful parameters which will come in handy later on
    ntrain = train.shape[0]
    ntest = test.shape[0]
    SEED = 0 # for reproducibility
    NFOLDS = 5 # set folds for out-of-fold prediction
    kfold = KFold(n_splits = NFOLDS, random_state = SEED)
    kf = kfold.split(train)


    # Class to extend the Sklearn classifier
    class SklearnHelper(object):
        def __init__(self, clf, seed=0, params=None):
            params['random_state'] = seed
            self.clf = clf(**params)

        def train(self, x_train, y_train):
            self.clf.fit(x_train, y_train)

        def predict(self, x):
            return self.clf.predict(x)

        def fit(self, x, y):
            return self.clf.fit(x, y)

        def feature_importances(self, x, y):
            print(self.clf.fit(x, y).feature_importances_)

    # Class to extend XGboost classifer
    def get_oof(clf, x_train, y_train, x_test):
        oof_train = np.zeros((ntrain,))
        oof_test = np.zeros((ntest,))
        oof_test_skf = np.empty((NFOLDS, ntest))

        for i, (train_index, test_index) in enumerate(kf):
            x_tr = x_train[train_index]
            y_tr = y_train[train_index]
            x_te = x_train[test_index]

            clf.train(x_tr, y_tr)

            oof_train[test_index] = clf.predict(x_te)
            oof_test_skf[i, :] = clf.predict(x_test)

        oof_test[:] = oof_test_skf.mean(axis=0)
        return oof_train.reshape(-1, 1), oof_test.reshape(-1, 1)


    # Put in our parameters for said classifiers
    # Random Forest parameters
    rf_params = {
        'n_jobs': -1,
        'n_estimators': 500,
         'warm_start': True,
         #'max_features': 0.2,
        'max_depth': 6,
        'min_samples_leaf': 2,
        'max_features' : 'sqrt',
        'verbose': 0
    }

    # Extra Trees Parameters
    et_params = {
        'n_jobs': -1,
        'n_estimators':500,
        #'max_features': 0.5,
        'max_depth': 8,
        'min_samples_leaf': 2,
        'verbose': 0
    }

    # AdaBoost parameters
    ada_params = {
        'n_estimators': 500,
        'learning_rate' : 0.75
    }

    # Gradient Boosting parameters
    gb_params = {
        'n_estimators': 500,
         #'max_features': 0.2,
        'max_depth': 5,
        'min_samples_leaf': 2,
        'verbose': 0
    }

    # Support Vector Classifier parameters
    svc_params = {
        'kernel' : 'linear',
        'C' : 0.025
        }

    # Create 5 objects that represent our 4 models
    rf = SklearnHelper(clf=RandomForestClassifier, seed=SEED, params=rf_params)
    et = SklearnHelper(clf=ExtraTreesClassifier, seed=SEED, params=et_params)
    ada = SklearnHelper(clf=AdaBoostClassifier, seed=SEED, params=ada_params)
    gb = SklearnHelper(clf=GradientBoostingClassifier, seed=SEED, params=gb_params)
    svc = SklearnHelper(clf=SVC, seed=SEED, params=svc_params)


    # Create Numpy arrays of train, test and target ( Survived) dataframes to feed into our models
    y_train = train['Survived'].ravel()
    train = train.drop(['Survived'], axis=1)
    x_train = train.values # Creates an array of the train data
    x_test = test.values # Creats an array of the test data

    # Create our OOF train and test predictions. These base results will be used as new features
    et_oof_train, et_oof_test = get_oof(et, x_train, y_train, x_test) # Extra Trees
    rf_oof_train, rf_oof_test = get_oof(rf, x_train, y_train, x_test) # Random Forest
    ada_oof_train, ada_oof_test = get_oof(ada, x_train, y_train, x_test) # AdaBoost
    gb_oof_train, gb_oof_test = get_oof(gb, x_train, y_train, x_test) # Gradient Boost
    svc_oof_train, svc_oof_test = get_oof(svc, x_train, y_train, x_test) # Support Vector Classifier

    print("Training is complete")

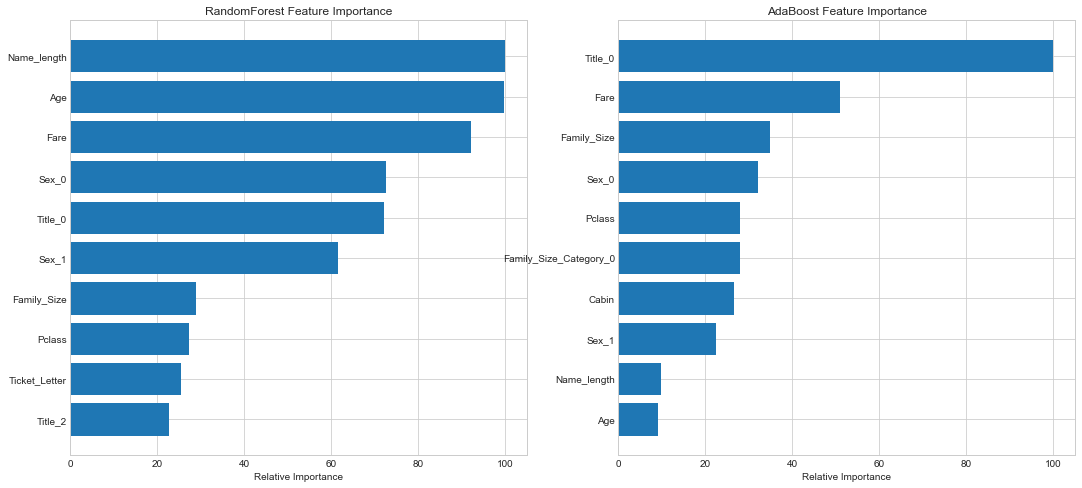

    #输出各个模型的性能特征
    rf_feature = rf.feature_importances(x_train,y_train)
    et_feature = et.feature_importances(x_train, y_train)
    ada_feature = ada.feature_importances(x_train, y_train)
    gb_feature = gb.feature_importances(x_train,y_train)
    #手动将性能特征以列表形式复制给变量(11个数值分别对应11个特征的重要程度)
    rf_feature = [0.11074583, 0.24280623, 0.03293436, 0.02004395, 0.04902856, 0.02234903, 0.11151027, 0.06718905, 0.07099594, 0.01131659, 0.26108018]
    et_feature = [0.11860983, 0.37755262, 0.02632776, 0.01763431, 0.05555148, 0.02909049, 0.04819049, 0.0852282,  0.04603893, 0.02063341, 0.17514248]
    ada_feature = [0.03, 0.012, 0.014, 0.066, 0.04, 0.01, 0.688, 0.014, 0.056, 0, 0.07 ]
    gb_feature = [0.08952558, 0.01251838, 0.0507058, 0.01486893, 0.0519019, 0.02562565, 0.17077917, 0.03627126, 0.11332225, 0.00654679, 0.42793428]

    #创建数据框以便画图
    cols = train.columns.values
    # Create a dataframe with features
    feature_dataframe = pd.DataFrame( {'features': cols,
         'Random Forest feature importances': rf_feature,
         'Extra Trees  feature importances': et_feature,
          'AdaBoost feature importances': ada_feature,
        'Gradient Boost feature importances': gb_feature
        })

    #画图
    # Scatter plot
    trace = go.Scatter(
        y = feature_dataframe['Random Forest feature importances'].values,
        x = feature_dataframe['features'].values,
        mode='markers',
        marker=dict(
            sizemode = 'diameter',
            sizeref = 1,
            size = 25,
            #size= feature_dataframe['AdaBoost feature importances'].values,
            #color = np.random.randn(500), #set color equal to a variable
            color = feature_dataframe['Random Forest feature importances'].values,
            colorscale='Portland',
            showscale=True
        ),
        text = feature_dataframe['features'].values
    )
    data = go.Data([trace])

    layout= go.Layout(
        autosize= True,
        title= 'Random Forest Feature Importance',
        hovermode= 'closest',
    #     xaxis= dict(
    #         title= 'Pop',
    #         ticklen= 5,
    #         zeroline= False,
    #         gridwidth= 2,
    #     ),
        yaxis=dict(
            title= 'Feature Importance',
            ticklen= 5,
            gridwidth= 2
        ),
        showlegend= False
    )
    fig = go.Figure(data=data, layout=layout)
    py.plot(fig,filename='scatter1')
    # Scatter plot
    trace = go.Scatter(
        y = feature_dataframe['Extra Trees  feature importances'].values,
        x = feature_dataframe['features'].values,
        mode='markers',
        marker=dict(
            sizemode = 'diameter',
            sizeref = 1,
            size = 25,
    #       size= feature_dataframe['AdaBoost feature importances'].values,
            #color = np.random.randn(500), #set color equal to a variable
            color = feature_dataframe['Extra Trees  feature importances'].values,
            colorscale='Portland',
            showscale=True
        ),
        text = feature_dataframe['features'].values
    )
    data = [trace]

    layout= go.Layout(
        autosize= True,
        title= 'Extra Trees Feature Importance',
        hovermode= 'closest',
    #     xaxis= dict(
    #         title= 'Pop',
    #         ticklen= 5,
    #         zeroline= False,
    #         gridwidth= 2,
    #     ),
        yaxis=dict(
            title= 'Feature Importance',
            ticklen= 5,
            gridwidth= 2
        ),
        showlegend= False
    )
    fig = go.Figure(data=data, layout=layout)
    py.plot(fig,filename='scatter2')

    # Scatter plot
    trace = go.Scatter(
        y = feature_dataframe['AdaBoost feature importances'].values,
        x = feature_dataframe['features'].values,
        mode='markers',
        marker=dict(
            sizemode = 'diameter',
            sizeref = 1,
            size = 25,
    #       size= feature_dataframe['AdaBoost feature importances'].values,
            #color = np.random.randn(500), #set color equal to a variable
            color = feature_dataframe['AdaBoost feature importances'].values,
            colorscale='Portland',
            showscale=True
        ),
        text = feature_dataframe['features'].values
    )
    data = [trace]

    layout= go.Layout(
        autosize= True,
        title= 'AdaBoost Feature Importance',
        hovermode= 'closest',
    #     xaxis= dict(
    #         title= 'Pop',
    #         ticklen= 5,
    #         zeroline= False,
    #         gridwidth= 2,
    #     ),
        yaxis=dict(
            title= 'Feature Importance',
            ticklen= 5,
            gridwidth= 2
        ),
        showlegend= False
    )
    fig = go.Figure(data=data, layout=layout)
    py.plot(fig,filename='scatter3')

    # Scatter plot
    trace = go.Scatter(
        y = feature_dataframe['Gradient Boost feature importances'].values,
        x = feature_dataframe['features'].values,
        mode='markers',
        marker=dict(
            sizemode = 'diameter',
            sizeref = 1,
            size = 25,
    #       size= feature_dataframe['AdaBoost feature importances'].values,
            #color = np.random.randn(500), #set color equal to a variable
            color = feature_dataframe['Gradient Boost feature importances'].values,
            colorscale='Portland',
            showscale=True
        ),
        text = feature_dataframe['features'].values
    )
    data = [trace]

    layout= go.Layout(
        autosize= True,
        title= 'Gradient Boosting Feature Importance',
        hovermode= 'closest',
    #     xaxis= dict(
    #         title= 'Pop',
    #         ticklen= 5,
    #         zeroline= False,
    #         gridwidth= 2,
    #     ),
        yaxis=dict(
            title= 'Feature Importance',
            ticklen= 5,
            gridwidth= 2
        ),
        showlegend= False
    )
    fig = go.Figure(data=data, layout=layout)
    py.plot(fig,filename='scatter4')


    #Create the new column containing the average of values
    feature_dataframe['mean'] = feature_dataframe.mean(axis= 1) # axis = 1 computes the mean row-wise
    feature_dataframe.head(5)


    y = feature_dataframe['mean'].values
    x = feature_dataframe['features'].values
    data = [go.Bar(
                x= x,
                 y= y,
                width = 0.5,
                marker=dict(
                   color = feature_dataframe['mean'].values,
                colorscale='Portland',
                showscale=True,
                reversescale = False
                ),
                opacity=0.6
            )]

    layout= go.Layout(
        autosize= True,
        title= 'Barplots of Mean Feature Importance',
        hovermode= 'closest',
    #     xaxis= dict(
    #         title= 'Pop',
    #         ticklen= 5,
    #         zeroline= False,
    #         gridwidth= 2,
    #     ),
        yaxis=dict(
            title= 'Feature Importance',
            ticklen= 5,
            gridwidth= 2
        ),
        showlegend= False
    )
    fig = go.Figure(data=data, layout=layout)
    py.plot(fig, filename='bar-direct-labels')

    #将第一次预测的结果作为新的变量,加入到原数据中,进行下一次分类
    base_predictions_train = pd.DataFrame( {'RandomForest': rf_oof_train.ravel(),
         'ExtraTrees': et_oof_train.ravel(),
         'AdaBoost': ada_oof_train.ravel(),
          'GradientBoost': gb_oof_train.ravel()
        })
    base_predictions_train.head(20)

    #热力图
    data = [
        go.Heatmap(
            z= base_predictions_train.astype(float).corr().values,
            x= base_predictions_train.columns.values,
            y= base_predictions_train.columns.values,
            colorscale='Viridis',
            showscale=True,
            reversescale = True
        )
    ]
    py.plot(data, filename='labelled-heatmap')
    View Code

    8oao

    转载于:https://www.cnblogs.com/zwtgyh/p/10929306.html

    展开全文
  • Titanic 生存预测(上)欢迎来到我的学习记录博客RMS Titanic(背景)Importing the LibrariesGetting the DataData Explorationisnull用法(小插曲)Data Analysis分析乘客年龄和票价分布整体生存状况性别与生存的...
  • Titanic生存预测机器学习数据集,包含了训练集和测试集以及性别数据。kaggle和天池经典案例,下载后可进行机器学习入门学习。
  • Kaggle_Titanic生存预测 -- 详细流程吐血梳理

    万次阅读 多人点赞 2017-12-06 10:55:55
    Kaggle 泰坦尼克生存预测,详细流程分析整理:特征分析,特征工程,数据处理,Stacking框架,xgboost融合

    作者大树先生
    博客http://blog.csdn.net/koala_tree
    知乎https://www.zhihu.com/people/dashuxiansheng
    GitHubhttps://github.com/MrLeeTree
    2017 年 12 月 5 日


    一直想在Kaggle上参加一次比赛,奈何被各种事情所拖累。为了熟悉一下比赛的流程和对数据建模有个较为直观的认识,断断续续用一段时间做了Kaggle上的入门比赛:Titanic: Machine Learning from Disaster

    总的来说收获还算是挺大的吧。本来想的是只简单的做一下,在整个进行的过程中发现有很多好的Kernels以及数据分析的流程和方法,但是却鲜有比较清晰直观的流程和较为全面的分析方法。所以,本着自己强迫症的精神,同时也算对这次小比赛的一些方式方法以及绘图分析技巧做一个较为系统的笔记,经过几天快要吐血的整理下,本文新鲜出炉。

    本文参考了若干kernels以及博客知文,文章下方均有引用说明。


    同时我在知乎上开设了关于机器学习深度学习的专栏收录下面的内容,以方便大家在移动端的学习。欢迎关注我的知乎:大树先生。一起学习一起进步呀!_


    1. 数据总览

    Titanic 生存模型预测,其中包含了两组数据:train.csvtest.csv,分别为训练集合和测试集合。

    import re
    import numpy as np
    import pandas as pd
    import matplotlib.pyplot as plt
    import seaborn as sns

    import warnings
    warnings.filterwarnings('ignore')

    %matplotlib inline


    观察前几行的源数据:

    train_data = pd.read_csv('data/train.csv')
    test_data = pd.read_csv('data/test.csv')

    sns.set_style('whitegrid')
    train_data.head()

    PassengerIdSurvivedPclassNameSexAgeSibSpParchTicketFareCabinEmbarked
    0103Braund, Mr. Owen Harrismale22.010A/5 211717.2500NaNS
    1211Cumings, Mrs. John Bradley (Florence Briggs Th...female38.010PC 1759971.2833C85C
    2313Heikkinen, Miss. Lainafemale26.000STON/O2. 31012827.9250NaNS
    3411Futrelle, Mrs. Jacques Heath (Lily May Peel)female35.01011380353.1000C123S
    4503Allen, Mr. William Henrymale35.0003734508.0500NaNS

    数据信息总览:

    train_data.info()
    print("-" * 40)
    test_data.info()

    <class 'pandas.core.frame.DataFrame'>
    RangeIndex: 891 entries, 0 to 890
    Data columns (total 12 columns):
    PassengerId    891 non-null int64
    Survived       891 non-null int64
    Pclass         891 non-null int64
    Name           891 non-null object
    Sex            891 non-null object
    Age            714 non-null float64
    SibSp          891 non-null int64
    Parch          891 non-null int64
    Ticket         891 non-null object
    Fare           891 non-null float64
    Cabin          204 non-null object
    Embarked       889 non-null object
    dtypes: float64(2), int64(5), object(5)
    memory usage: 83.6+ KB
    ----------------------------------------
    <class 'pandas.core.frame.DataFrame'>
    RangeIndex: 418 entries, 0 to 417
    Data columns (total 11 columns):
    PassengerId    418 non-null int64
    Pclass         418 non-null int64
    Name           418 non-null object
    Sex            418 non-null object
    Age            332 non-null float64
    SibSp          418 non-null int64
    Parch          418 non-null int64
    Ticket         418 non-null object
    Fare           417 non-null float64
    Cabin          91 non-null object
    Embarked       418 non-null object
    dtypes: float64(2), int64(4), object(5)
    memory usage: 36.0+ KB


    从上面我们可以看出,Age、Cabin、Embarked、Fare几个特征存在缺失值。

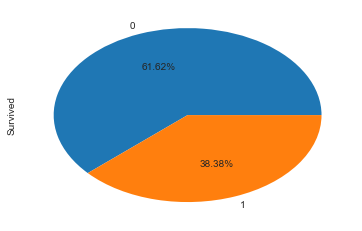

    绘制存活的比例:

    train_data['Survived'].value_counts().plot.pie(autopct = '%1.2f%%')

    <matplotlib.axes._subplots.AxesSubplot at 0x230c2508ef0>


    这里写图片描述

    2. 缺失值处理的方法

    对数据进行分析的时候要注意其中是否有缺失值。

    一些机器学习算法能够处理缺失值,比如神经网络,一些则不能。对于缺失值,一般有以下几种处理方法:

    (1)如果数据集很多,但有很少的缺失值,可以删掉带缺失值的行;

    (2)如果该属性相对学习来说不是很重要,可以对缺失值赋均值或者众数。比如在哪儿上船Embarked这一属性(共有三个上船地点),缺失俩值,可以用众数赋值

    train_data.Embarked[train_data.Embarked.isnull()] = train_data.Embarked.dropna().mode().values


    (3)对于标称属性,可以赋一个代表缺失的值,比如‘U0’。因为缺失本身也可能代表着一些隐含信息。比如船舱号Cabin这一属性,缺失可能代表并没有船舱。

    #replace missing value with U0
    train_data['Cabin'] = train_data.Cabin.fillna('U0') # train_data.Cabin[train_data.Cabin.isnull()]='U0'


    (4)使用回归 随机森林等模型来预测缺失属性的值。因为Age在该数据集里是一个相当重要的特征(先对Age进行分析即可得知),所以保证一定的缺失值填充准确率是非常重要的,对结果也会产生较大影响。一般情况下,会使用数据完整的条目作为模型的训练集,以此来预测缺失值。对于当前的这个数据,可以使用随机森林来预测也可以使用线性回归预测。这里使用随机森林预测模型,选取数据集中的数值属性作为特征(因为sklearn的模型只能处理数值属性,所以这里先仅选取数值特征,但在实际的应用中需要将非数值特征转换为数值特征)

    from sklearn.ensemble import RandomForestRegressor

    #choose training data to predict age
    age_df = train_data[['Age','Survived','Fare', 'Parch', 'SibSp', 'Pclass']]
    age_df_notnull = age_df.loc[(train_data['Age'].notnull())]
    age_df_isnull = age_df.loc[(train_data['Age'].isnull())]
    X = age_df_notnull.values[:,1:]
    Y = age_df_notnull.values[:,0]
    # use RandomForestRegression to train data
    RFR = RandomForestRegressor(n_estimators=1000, n_jobs=-1)
    RFR.fit(X,Y)
    predictAges = RFR.predict(age_df_isnull.values[:,1:])
    train_data.loc[train_data['Age'].isnull(), ['Age']]= predictAges


    让我们再来看一下缺失数据处理后的DataFram:

    train_data.info()

    <class 'pandas.core.frame.DataFrame'>
    RangeIndex: 891 entries, 0 to 890
    Data columns (total 12 columns):
    PassengerId    891 non-null int64
    Survived       891 non-null int64
    Pclass         891 non-null int64
    Name           891 non-null object
    Sex            891 non-null object
    Age            891 non-null float64
    SibSp          891 non-null int64
    Parch          891 non-null int64
    Ticket         891 non-null object
    Fare           891 non-null float64
    Cabin          891 non-null object
    Embarked       891 non-null object
    dtypes: float64(2), int64(5), object(5)
    memory usage: 83.6+ KB


    3. 分析数据关系

    (1) 性别与是否生存的关系 Sex

    train_data.groupby(['Sex','Survived'])['Survived'].count()

    Sex     Survived
    female  0            81
            1           233
    male    0           468
            1           109
    Name: Survived, dtype: int64

    train_data[['Sex','Survived']].groupby(['Sex']).mean().plot.bar()

    <matplotlib.axes._subplots.AxesSubplot at 0x230c251ab00>


    这里写图片描述

    以上为不同性别的生存率,可见在泰坦尼克号事故中,还是体现了Lady First。

    (2) 船舱等级和生存与否的关系 Pclass

    train_data.groupby(['Pclass','Survived'])['Pclass'].count()

    Pclass  Survived
    1       0            80
            1           136
    2       0            97
            1            87
    3       0           372
            1           119
    Name: Pclass, dtype: int64

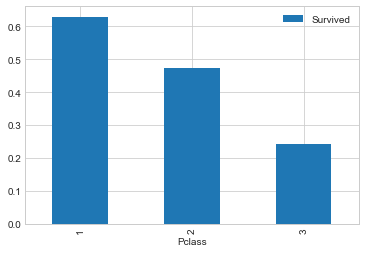

    train_data[['Pclass','Survived']].groupby(['Pclass']).mean().plot.bar()

    <matplotlib.axes._subplots.AxesSubplot at 0x230c5e08b70>


    这里写图片描述

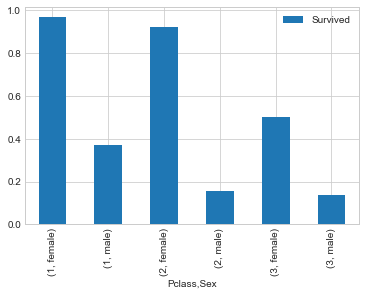

    train_data[['Sex','Pclass','Survived']].groupby(['Pclass','Sex']).mean().plot.bar()

    <matplotlib.axes._subplots.AxesSubplot at 0x230c5e2ad68>


    这里写图片描述

    不同等级船舱的男女生存率:

    train_data.groupby(['Sex', 'Pclass', 'Survived'])['Survived'].count()

    Sex     Pclass  Survived
    female  1       0             3
                    1            91
            2       0             6
                    1            70
            3       0            72
                    1            72
    male    1       0            77
                    1            45
            2       0            91
                    1            17
            3       0           300
                    1            47
    Name: Survived, dtype: int64


    从图和表中可以看出,总体上泰坦尼克号逃生是妇女优先,但是对于不同等级的船舱还是有一定的区别。

    (3) 年龄与存活与否的关系 Age

    分别分析不同等级船舱和不同性别下的年龄分布和生存的关系:

    fig, ax = plt.subplots(1, 2, figsize = (18, 8))
    sns.violinplot("Pclass", "Age", hue="Survived", data=train_data, split=True, ax=ax[0])
    ax[0].set_title('Pclass and Age vs Survived')
    ax[0].set_yticks(range(0, 110, 10))

    sns.violinplot("Sex", "Age", hue="Survived", data=train_data, split=True, ax=ax[1])
    ax[1].set_title('Sex and Age vs Survived')
    ax[1].set_yticks(range(0, 110, 10))

    plt.show()


    这里写图片描述

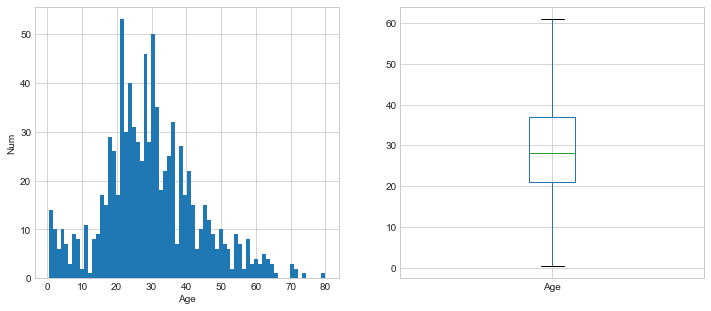

    分析总体的年龄分布:

    plt.figure(figsize=(12,5))
    plt.subplot(121)
    train_data['Age'].hist(bins=70)
    plt.xlabel('Age')
    plt.ylabel('Num')

    plt.subplot(122)
    train_data.boxplot(column='Age', showfliers=False)
    plt.show()


    这里写图片描述

    不同年龄下的生存和非生存的分布情况:

    facet = sns.FacetGrid(train_data, hue="Survived",aspect=4)
    facet.map(sns.kdeplot,'Age',shade= True)
    facet.set(xlim=(0, train_data['Age'].max()))
    facet.add_legend()

    <seaborn.axisgrid.FacetGrid at 0x230c5e53cf8>


    png

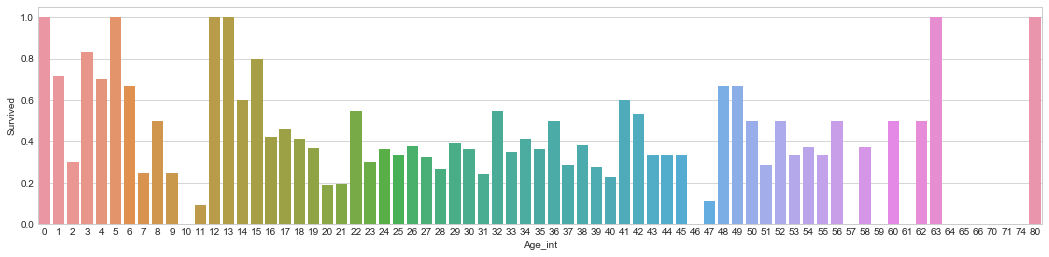

    不同年龄下的平均生存率:

    # average survived passengers by age
    fig, axis1 = plt.subplots(1,1,figsize=(18,4))
    train_data["Age_int"] = train_data["Age"].astype(int)
    average_age = train_data[["Age_int", "Survived"]].groupby(['Age_int'],as_index=False).mean()
    sns.barplot(x='Age_int', y='Survived', data=average_age)

    <matplotlib.axes._subplots.AxesSubplot at 0x230c60135f8>


    这里写图片描述

    train_data['Age'].describe()

    count    891.000000
    mean      29.668231
    std       13.739002
    min        0.420000
    25%       21.000000
    50%       28.000000
    75%       37.000000
    max       80.000000
    Name: Age, dtype: float64


    样本有891,平均年龄约为30岁,标准差13.5岁,最小年龄为0.42,最大年龄80.

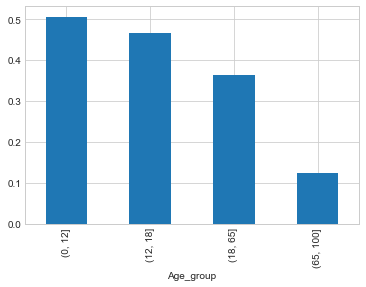

    按照年龄,将乘客划分为儿童、少年、成年和老年,分析四个群体的生还情况:

    bins = [0, 12, 18, 65, 100]
    train_data['Age_group'] = pd.cut(train_data['Age'], bins)
    by_age = train_data.groupby('Age_group')['Survived'].mean()
    by_age

    Age_group
    (0, 12]      0.506173
    (12, 18]     0.466667
    (18, 65]     0.364512
    (65, 100]    0.125000
    Name: Survived, dtype: float64

    by_age.plot(kind = 'bar')

    <matplotlib.axes._subplots.AxesSubplot at 0x230c6079e80>


    这里写图片描述

    (4) 称呼与存活与否的关系 Name

    通过观察名字数据,我们可以看出其中包括对乘客的称呼,如:Mr、Miss、Mrs等,称呼信息包含了乘客的年龄、性别,同时也包含了如社会地位等的称呼,如:Dr,、Lady、Major、Master等的称呼。

    train_data['Title'] = train_data['Name'].str.extract(' ([A-Za-z]+)\.', expand=False)

    pd.crosstab(train_data['Title'], train_data['Sex'])

    Sexfemalemale
    Title
    Capt01
    Col02
    Countess10
    Don01
    Dr16
    Jonkheer01
    Lady10
    Major02
    Master040
    Miss1820
    Mlle20
    Mme10
    Mr0517
    Mrs1250
    Ms10
    Rev06
    Sir01

    观察不同称呼与生存率的关系:

    train_data[['Title','Survived']].groupby(['Title']).mean().plot.bar()

    <matplotlib.axes._subplots.AxesSubplot at 0x230c61699b0>


    这里写图片描述

    同时,对于名字,我们还可以观察名字长度和生存率之间存在关系的可能:

    fig, axis1 = plt.subplots(1,1,figsize=(18,4))
    train_data['Name_length'] = train_data['Name'].apply(len)
    name_length = train_data[['Name_length','Survived']].groupby(['Name_length'],as_index=False).mean()
    sns.barplot(x='Name_length', y='Survived', data=name_length)

    <matplotlib.axes._subplots.AxesSubplot at 0x230c61689b0>


    这里写图片描述

    从上面的图片可以看出,名字长度和生存与否确实也存在一定的相关性。

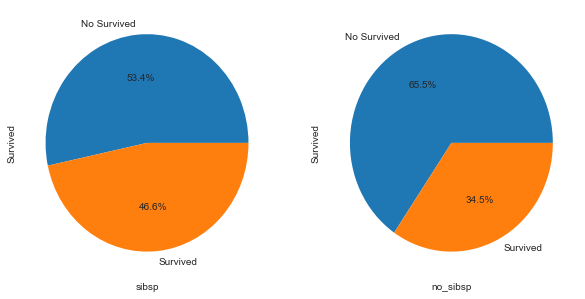

    (5) 有无兄弟姐妹和存活与否的关系 SibSp

    # 将数据分为有兄弟姐妹的和没有兄弟姐妹的两组:
    sibsp_df = train_data[train_data['SibSp'] != 0]
    no_sibsp_df = train_data[train_data['SibSp'] == 0]

    plt.figure(figsize=(10,5))
    plt.subplot(121)
    sibsp_df['Survived'].value_counts().plot.pie(labels=['No Survived', 'Survived'], autopct = '%1.1f%%')
    plt.xlabel('sibsp')

    plt.subplot(122)
    no_sibsp_df['Survived'].value_counts().plot.pie(labels=['No Survived', 'Survived'], autopct = '%1.1f%%')
    plt.xlabel('no_sibsp')

    plt.show()


    这里写图片描述

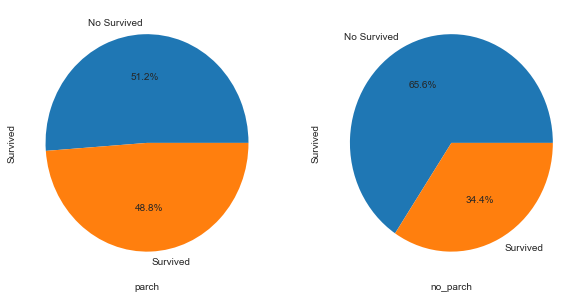

    (6) 有无父母子女和存活与否的关系 Parch

    和有无兄弟姐妹一样,同样分析可以得到:

    parch_df = train_data[train_data['Parch'] != 0]
    no_parch_df = train_data[train_data['Parch'] == 0]

    plt.figure(figsize=(10,5))
    plt.subplot(121)
    parch_df['Survived'].value_counts().plot.pie(labels=['No Survived', 'Survived'], autopct = '%1.1f%%')
    plt.xlabel('parch')

    plt.subplot(122)
    no_parch_df['Survived'].value_counts().plot.pie(labels=['No Survived', 'Survived'], autopct = '%1.1f%%')
    plt.xlabel('no_parch')

    plt.show()


    这里写图片描述

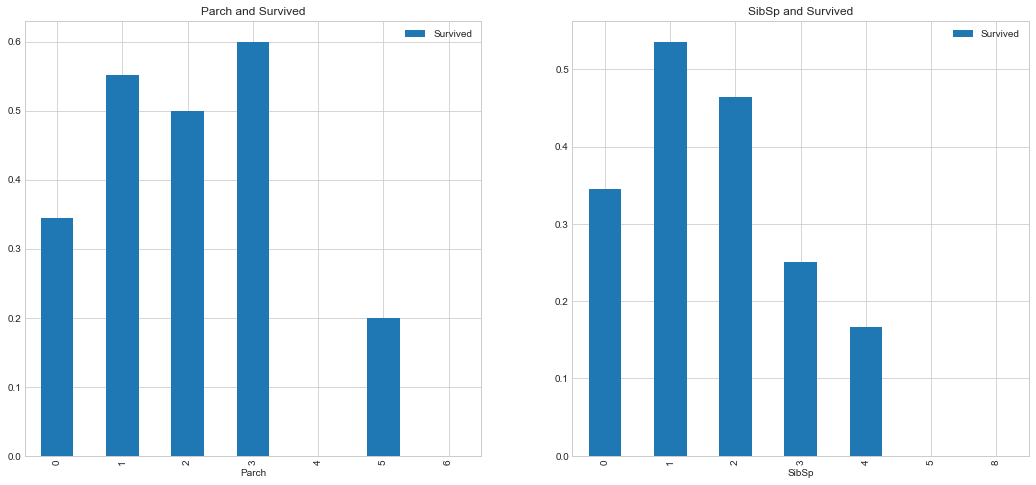

    (7) 亲友的人数和存活与否的关系 SibSp & Parch

    fig,ax=plt.subplots(1,2,figsize=(18,8))
    train_data[['Parch','Survived']].groupby(['Parch']).mean().plot.bar(ax=ax[0])
    ax[0].set_title('Parch and Survived')
    train_data[['SibSp','Survived']].groupby(['SibSp']).mean().plot.bar(ax=ax[1])
    ax[1].set_title('SibSp and Survived')

    Text(0.5,1,'SibSp and Survived')


    这里写图片描述

    train_data['Family_Size'] = train_data['Parch'] + train_data['SibSp'] + 1
    train_data[['Family_Size','Survived']].groupby(['Family_Size']).mean().plot.bar()

    <matplotlib.axes._subplots.AxesSubplot at 0x230c77155c0>


    这里写图片描述

    从图表中可以看出,若独自一人,那么其存活率比较低;但是如果亲友太多的话,存活率也会很低。

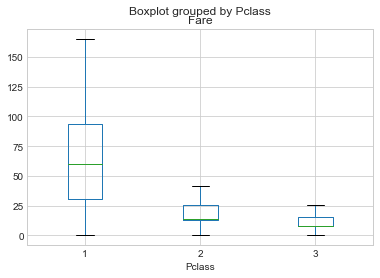

    (8) 票价分布和存活与否的关系 Fare

    首先绘制票价的分布情况:

    plt.figure(figsize=(10,5))
    train_data['Fare'].hist(bins = 70)

    train_data.boxplot(column='Fare', by='Pclass', showfliers=False)
    plt.show()


    这里写图片描述

    这里写图片描述

    train_data['Fare'].describe()

    count    891.000000
    mean      32.204208
    std       49.693429
    min        0.000000
    25%        7.910400
    50%       14.454200
    75%       31.000000
    max      512.329200
    Name: Fare, dtype: float64

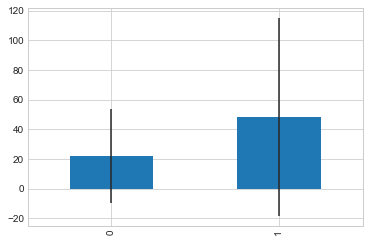

    绘制生存与否与票价均值和方差的关系:

    fare_not_survived = train_data['Fare'][train_data['Survived'] == 0]
    fare_survived = train_data['Fare'][train_data['Survived'] == 1]

    average_fare = pd.DataFrame([fare_not_survived.mean(), fare_survived.mean()])
    std_fare = pd.DataFrame([fare_not_survived.std(), fare_survived.std()])
    average_fare.plot(yerr=std_fare, kind='bar', legend=False)

    plt.show()


    这里写图片描述

    由上图标可知,票价与是否生还有一定的相关性,生还者的平均票价要大于未生还者的平均票价。

    (9) 船舱类型和存活与否的关系 Cabin

    由于船舱的缺失值确实太多,有效值仅仅有204个,很难分析出不同的船舱和存活的关系,所以在做特征工程的时候,可以直接将该组特征丢弃。

    当然,这里我们也可以对其进行一下分析,对于缺失的数据都分为一类。

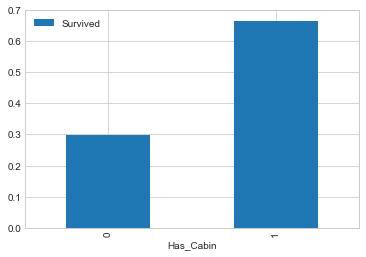

    简单地将数据分为是否有Cabin记录作为特征,与生存与否进行分析:

    # Replace missing values with "U0"
    train_data.loc[train_data.Cabin.isnull(), 'Cabin'] = 'U0'
    train_data['Has_Cabin'] = train_data['Cabin'].apply(lambda x: 0 if x == 'U0' else 1)
    train_data[['Has_Cabin','Survived']].groupby(['Has_Cabin']).mean().plot.bar()

    <matplotlib.axes._subplots.AxesSubplot at 0x230c7566080>


    png

    对不同类型的船舱进行分析:

    # create feature for the alphabetical part of the cabin number
    train_data['CabinLetter'] = train_data['Cabin'].map(lambda x: re.compile("([a-zA-Z]+)").search(x).group())
    # convert the distinct cabin letters with incremental integer values
    train_data['CabinLetter'] = pd.factorize(train_data['CabinLetter'])[0]
    train_data[['CabinLetter','Survived']].groupby(['CabinLetter']).mean().plot.bar()

    <matplotlib.axes._subplots.AxesSubplot at 0x230c5ebcd30>


    这里写图片描述

    可见,不同的船舱生存率也有不同,但是差别不大。所以在处理中,我们可以直接将特征删除。

    (10) 港口和存活与否的关系 Embarked

    泰坦尼克号从英国的南安普顿港出发,途径法国瑟堡和爱尔兰昆士敦,那么在昆士敦之前上船的人,有可能在瑟堡或昆士敦下船,这些人将不会遇到海难。

    sns.countplot('Embarked', hue='Survived', data=train_data)
    plt.title('Embarked and Survived')

    Text(0.5,1,'Embarked and Survived')


    这里写图片描述

    sns.factorplot('Embarked', 'Survived', data=train_data, size=3, aspect=2)
    plt.title('Embarked and Survived rate')
    plt.show()


    这里写图片描述

    由上可以看出,在不同的港口上船,生还率不同,C最高,Q次之,S最低。

    以上为所给出的数据特征与生还与否的分析。

    据了解,泰坦尼克号上共有2224名乘客。本训练数据只给出了891名乘客的信息,如果该数据集是从总共的2224人中随机选出的,根据中心极限定理,该样本的数据也足够大,那么我们的分析结果就具有代表性;但如果不是随机选取,那么我们的分析结果就可能不太靠谱了。

    (11) 其他可能和存活与否有关系的特征

    对于数据集中没有给出的特征信息,我们还可以联想其他可能会对模型产生影响的特征因素。如:乘客的国籍、乘客的身高、乘客的体重、乘客是否会游泳、乘客职业等等。

    另外还有数据集中没有分析的几个特征:Ticket(船票号)、Cabin(船舱号),这些因素的不同可能会影响乘客在船中的位置从而影响逃生的顺序。但是船舱号数据缺失,船票号类别大,难以分析规律,所以在后期模型融合的时候,将这些因素交由模型来决定其重要性。

    4. 变量转换

    变量转换的目的是将数据转换为适用于模型使用的数据,不同模型接受不同类型的数据,Scikit-learn要求数据都是数字型numeric,所以我们要将一些非数字型的原始数据转换为数字型numeric。

    所以下面对数据的转换进行介绍,以在进行特征工程的时候使用。

    所有的数据可以分为两类:

    • 1.定量(Quantitative)变量可以以某种方式排序,Age就是一个很好的列子。
    • 2.定性(Qualitative)变量描述了物体的某一(不能被数学表示的)方面,Embarked就是一个例子。

    定性(Qualitative)转换:

    1. Dummy Variables

    就是类别变量或者二元变量,当qualitative variable是一些频繁出现的几个独立变量时,Dummy Variables比较适合使用。我们以Embarked为例,Embarked只包含三个值’S’,‘C’,‘Q’,我们可以使用下面的代码将其转换为dummies:

    embark_dummies  = pd.get_dummies(train_data['Embarked'])
    train_data = train_data.join(embark_dummies)
    train_data.drop(['Embarked'], axis=1,inplace=True)

    embark_dummies = train_data[['S', 'C', 'Q']]
    embark_dummies.head()

    SCQ
    0100
    1010
    2100
    3100
    4100

    2. Factorizing

    dummy不好处理Cabin(船舱号)这种标称属性,因为他出现的变量比较多。所以Pandas有一个方法叫做factorize(),它可以创建一些数字,来表示类别变量,对每一个类别映射一个ID,这种映射最后只生成一个特征,不像dummy那样生成多个特征。

    # Replace missing values with "U0"
    train_data['Cabin'][train_data.Cabin.isnull()] = 'U0'
    # create feature for the alphabetical part of the cabin number
    train_data['CabinLetter'] = train_data['Cabin'].map( lambda x : re.compile("([a-zA-Z]+)").search(x).group())
    # convert the distinct cabin letters with incremental integer values
    train_data['CabinLetter'] = pd.factorize(train_data['CabinLetter'])[0]

    train_data['CabinLetter'].head()

    0    0
    1    1
    2    0
    3    1
    4    0
    Name: CabinLetter, dtype: int64


    定量(Quantitative)转换:

    1. Scaling

    Scaling可以将一个很大范围的数值映射到一个很小的范围(通常是-1 - 1,或则是0 - 1),很多情况下我们需要将数值做Scaling使其范围大小一样,否则大范围数值特征将会由更高的权重。比如:Age的范围可能只是0-100,而income的范围可能是0-10000000,在某些对数组大小敏感的模型中会影响其结果。

    下面对Age进行Scaling:

    from sklearn import preprocessing

    assert np.size(train_data['Age']) == 891
    # StandardScaler will subtract the mean from each value then scale to the unit variance
    scaler = preprocessing.StandardScaler()
    train_data['Age_scaled'] = scaler.fit_transform(train_data['Age'].values.reshape(-1, 1))

    train_data['Age_scaled'].head()

    0   -0.558449
    1    0.606773
    2   -0.267144
    3    0.388293
    4    0.388293
    Name: Age_scaled, dtype: float64


    2. Binning

    Binning通过观察“邻居”(即周围的值)将连续数据离散化。存储的值被分布到一些“桶”或“箱“”中,就像直方图的bin将数据划分成几块一样。下面的代码对Fare进行Binning。

    # Divide all fares into quartiles
    train_data['Fare_bin'] = pd.qcut(train_data['Fare'], 5)
    train_data['Fare_bin'].head()

    0      (-0.001, 7.854]
    1    (39.688, 512.329]
    2        (7.854, 10.5]
    3    (39.688, 512.329]
    4        (7.854, 10.5]
    Name: Fare_bin, dtype: category
    Categories (5, interval[float64]): [(-0.001, 7.854] < (7.854, 10.5] < (10.5, 21.679] < (21.679, 39.688] < (39.688, 512.329]]


    在将数据Bining化后,要么将数据factorize化,要么dummies化。

    # qcut() creates a new variable that identifies the quartile range, but we can't use the string
    # so either factorize or create dummies from the result

    # factorize
    train_data['Fare_bin_id'] = pd.factorize(train_data['Fare_bin'])[0]

    # dummies
    fare_bin_dummies_df = pd.get_dummies(train_data['Fare_bin']).rename(columns=lambda x: 'Fare_' + str(x))
    train_data = pd.concat([train_data, fare_bin_dummies_df], axis=1)


    5. 特征工程

    在进行特征工程的时候,我们不仅需要对训练数据进行处理,还需要同时将测试数据同训练数据一起处理,使得二者具有相同的数据类型和数据分布。

    train_df_org = pd.read_csv('data/train.csv')
    test_df_org = pd.read_csv('data/test.csv')
    test_df_org['Survived'] = 0
    combined_train_test = train_df_org.append(test_df_org)
    PassengerId = test_df_org['PassengerId']


    对数据进行特征工程,也就是从各项参数中提取出对输出结果有或大或小的影响的特征,将这些特征作为训练模型的依据。

    一般来说,我们会先从含有缺失值的特征开始。

    (1) Embarked

    因为“Embarked”项的缺失值不多,所以这里我们以众数来填充:

    combined_train_test['Embarked'].fillna(combined_train_test['Embarked'].mode().iloc[0], inplace=True)


    对于三种不同的港口,由上面介绍的数值转换,我们知道可以有两种特征处理方式:dummy和facrorizing。因为只有三个港口,所以我们可以直接用dummy来处理:

    # 为了后面的特征分析,这里我们将 Embarked 特征进行facrorizing
    combined_train_test['Embarked'] = pd.factorize(combined_train_test['Embarked'])[0]

    # 使用 pd.get_dummies 获取one-hot 编码
    emb_dummies_df = pd.get_dummies(combined_train_test['Embarked'], prefix=combined_train_test[['Embarked']].columns[0])
    combined_train_test = pd.concat([combined_train_test, emb_dummies_df], axis=1)


    (2) Sex

    对Sex也进行one-hot编码,也就是dummy处理:

    # 为了后面的特征分析,这里我们也将 Sex 特征进行facrorizing
    combined_train_test['Sex'] = pd.factorize(combined_train_test['Sex'])[0]

    sex_dummies_df = pd.get_dummies(combined_train_test['Sex'], prefix=combined_train_test[['Sex']].columns[0])
    combined_train_test = pd.concat([combined_train_test, sex_dummies_df], axis=1)


    (3) Name

    首先先从名字中提取各种称呼:

    # what is each person's title?
    combined_train_test['Title'] = combined_train_test['Name'].map(lambda x: re.compile(", (.*?)\.").findall(x)[0])


    将各式称呼进行统一化处理:

    title_Dict = {}
    title_Dict.update(dict.fromkeys(['Capt', 'Col', 'Major', 'Dr', 'Rev'], 'Officer'))
    title_Dict.update(dict.fromkeys(['Don', 'Sir', 'the Countess', 'Dona', 'Lady'], 'Royalty'))
    title_Dict.update(dict.fromkeys(['Mme', 'Ms', 'Mrs'], 'Mrs'))
    title_Dict.update(dict.fromkeys(['Mlle', 'Miss'], 'Miss'))
    title_Dict.update(dict.fromkeys(['Mr'], 'Mr'))
    title_Dict.update(dict.fromkeys(['Master','Jonkheer'], 'Master'))

    combined_train_test['Title'] = combined_train_test['Title'].map(title_Dict)


    使用dummy对不同的称呼进行分列:

    # 为了后面的特征分析,这里我们也将 Title 特征进行facrorizing
    combined_train_test['Title'] = pd.factorize(combined_train_test['Title'])[0]

    title_dummies_df = pd.get_dummies(combined_train_test['Title'], prefix=combined_train_test[['Title']].columns[0])
    combined_train_test = pd.concat([combined_train_test, title_dummies_df], axis=1)


    增加名字长度的特征:

    combined_train_test['Name_length'] = combined_train_test['Name'].apply(len)


    (4) Fare

    由前面分析可以知道,Fare项在测试数据中缺少一个值,所以需要对该值进行填充。
    我们按照一二三等舱各自的均价来填充:
    下面transform将函数np.mean应用到各个group中。

    combined_train_test['Fare'] = combined_train_test[['Fare']].fillna(combined_train_test.groupby('Pclass').transform(np.mean))


    通过对Ticket数据的分析,我们可以看到部分票号数据有重复,同时结合亲属人数及名字的数据,和票价船舱等级对比,我们可以知道购买的票中有家庭票和团体票,所以我们需要将团体票的票价分配到每个人的头上。

    combined_train_test['Group_Ticket'] = combined_train_test['Fare'].groupby(by=combined_train_test['Ticket']).transform('count')
    combined_train_test['Fare'] = combined_train_test['Fare'] / combined_train_test['Group_Ticket']
    combined_train_test.drop(['Group_Ticket'], axis=1, inplace=True)


    使用binning给票价分等级:

    combined_train_test['Fare_bin'] = pd.qcut(combined_train_test['Fare'], 5)


    对于5个等级的票价我们也可以继续使用dummy为票价等级分列:

    combined_train_test['Fare_bin_id'] = pd.factorize(combined_train_test['Fare_bin'])[0]

    fare_bin_dummies_df = pd.get_dummies(combined_train_test['Fare_bin_id']).rename(columns=lambda x: 'Fare_' + str(x))
    combined_train_test = pd.concat([combined_train_test, fare_bin_dummies_df], axis=1)
    combined_train_test.drop(['Fare_bin'], axis=1, inplace=True)


    (5) Pclass

    Pclass这一项,其实已经可以不用继续处理了,我们只需要将其转换为dummy形式即可。

    但是为了更好的分析问题,我们这里假设对于不同等级的船舱,各船舱内部的票价也说明了各等级舱的位置,那么也就很有可能与逃生的顺序有关系。所以这里分出每等舱里的高价和低价位。

    from sklearn.preprocessing import LabelEncoder

    # 建立PClass Fare Category
    def pclass_fare_category(df, pclass1_mean_fare, pclass2_mean_fare, pclass3_mean_fare):
        if df['Pclass'] == 1:
            if df['Fare'] <= pclass1_mean_fare:
                return 'Pclass1_Low'
            else:
                return 'Pclass1_High'
        elif df['Pclass'] == 2:
            if df['Fare'] <= pclass2_mean_fare:
                return 'Pclass2_Low'
            else:
                return 'Pclass2_High'
        elif df['Pclass'] == 3:
            if df['Fare'] <= pclass3_mean_fare:
                return 'Pclass3_Low'
            else:
                return 'Pclass3_High'

    Pclass1_mean_fare = combined_train_test['Fare'].groupby(by=combined_train_test['Pclass']).mean().get([1]).values[0]
    Pclass2_mean_fare = combined_train_test['Fare'].groupby(by=combined_train_test['Pclass']).mean().get([2]).values[0]
    Pclass3_mean_fare = combined_train_test['Fare'].groupby(by=combined_train_test['Pclass']).mean().get([3]).values[0]

    # 建立Pclass_Fare Category
    combined_train_test['Pclass_Fare_Category'] = combined_train_test.apply(pclass_fare_category, args=(
        Pclass1_mean_fare, Pclass2_mean_fare, Pclass3_mean_fare), axis=1)
    pclass_level = LabelEncoder()

    # 给每一项添加标签
    pclass_level.fit(np.array(
        ['Pclass1_Low', 'Pclass1_High', 'Pclass2_Low', 'Pclass2_High', 'Pclass3_Low', 'Pclass3_High']))

    # 转换成数值
    combined_train_test['Pclass_Fare_Category'] = pclass_level.transform(combined_train_test['Pclass_Fare_Category'])

    # dummy 转换
    pclass_dummies_df = pd.get_dummies(combined_train_test['Pclass_Fare_Category']).rename(columns=lambda x: 'Pclass_' + str(x))
    combined_train_test = pd.concat([combined_train_test, pclass_dummies_df], axis=1)


    同时,我们将 Pclass 特征factorize化:

    combined_train_test['Pclass'] = pd.factorize(combined_train_test['Pclass'])[0]


    (6) Parch and SibSp

    由前面的分析,我们可以知道,亲友的数量没有或者太多会影响到Survived。所以将二者合并为FamliySize这一组合项,同时也保留这两项。

    def family_size_category(family_size):
        if family_size <= 1:
            return 'Single'
        elif family_size <= 4:
            return 'Small_Family'
        else:
            return 'Large_Family'

    combined_train_test['Family_Size'] = combined_train_test['Parch'] + combined_train_test['SibSp'] + 1
    combined_train_test['Family_Size_Category'] = combined_train_test['Family_Size'].map(family_size_category)

    le_family = LabelEncoder()
    le_family.fit(np.array(['Single', 'Small_Family', 'Large_Family']))
    combined_train_test['Family_Size_Category'] = le_family.transform(combined_train_test['Family_Size_Category'])

    family_size_dummies_df = pd.get_dummies(combined_train_test['Family_Size_Category'],
                                            prefix=combined_train_test[['Family_Size_Category']].columns[0])
    combined_train_test = pd.concat([combined_train_test, family_size_dummies_df], axis=1)


    (7) Age

    因为Age项的缺失值较多,所以不能直接填充age的众数或者平均数。

    常见的有两种对年龄的填充方式:一种是根据Title中的称呼,如Mr,Master、Miss等称呼不同类别的人的平均年龄来填充;一种是综合几项如Sex、Title、Pclass等其他没有缺失值的项,使用机器学习算法来预测Age。

    这里我们使用后者来处理。以Age为目标值,将Age完整的项作为训练集,将Age缺失的项作为测试集。

    missing_age_df = pd.DataFrame(combined_train_test[
        ['Age', 'Embarked', 'Sex', 'Title', 'Name_length', 'Family_Size', 'Family_Size_Category','Fare', 'Fare_bin_id', 'Pclass']])

    missing_age_train = missing_age_df[missing_age_df['Age'].notnull()]
    missing_age_test = missing_age_df[missing_age_df['Age'].isnull()]

    missing_age_test.head()

    AgeEmbarkedSexTitleName_lengthFamily_SizeFamily_Size_CategoryFareFare_bin_idPclass
    5NaN20016118.458320
    17NaN000281113.000032
    19NaN11123117.225040
    26NaN10023117.225040
    28NaN21229117.879200

    建立Age的预测模型,我们可以多模型预测,然后再做模型的融合,提高预测的精度。

    from sklearn import ensemble
    from sklearn import model_selection
    from sklearn.ensemble import GradientBoostingRegressor
    from sklearn.ensemble import RandomForestRegressor

    def fill_missing_age(missing_age_train, missing_age_test):
        missing_age_X_train = missing_age_train.drop(['Age'], axis=1)
        missing_age_Y_train = missing_age_train['Age']
        missing_age_X_test = missing_age_test.drop(['Age'], axis=1)

        # model 1  gbm
        gbm_reg = GradientBoostingRegressor(random_state=42)
        gbm_reg_param_grid = {'n_estimators': [2000], 'max_depth': [4], 'learning_rate': [0.01], 'max_features': [3]}
        gbm_reg_grid = model_selection.GridSearchCV(gbm_reg, gbm_reg_param_grid, cv=10, n_jobs=25, verbose=1, scoring='neg_mean_squared_error')
        gbm_reg_grid.fit(missing_age_X_train, missing_age_Y_train)
        print('Age feature Best GB Params:' + str(gbm_reg_grid.best_params_))
        print('Age feature Best GB Score:' + str(gbm_reg_grid.best_score_))
        print('GB Train Error for "Age" Feature Regressor:' + str(gbm_reg_grid.score(missing_age_X_train, missing_age_Y_train)))
        missing_age_test.loc[:, 'Age_GB'] = gbm_reg_grid.predict(missing_age_X_test)
        print(missing_age_test['Age_GB'][:4])

        # model 2 rf
        rf_reg = RandomForestRegressor()
        rf_reg_param_grid = {'n_estimators': [200], 'max_depth': [5], 'random_state': [0]}
        rf_reg_grid = model_selection.GridSearchCV(rf_reg, rf_reg_param_grid, cv=10, n_jobs=25, verbose=1, scoring='neg_mean_squared_error')
        rf_reg_grid.fit(missing_age_X_train, missing_age_Y_train)
        print('Age feature Best RF Params:' + str(rf_reg_grid.best_params_))
        print('Age feature Best RF Score:' + str(rf_reg_grid.best_score_))
        print('RF Train Error for "Age" Feature Regressor' + str(rf_reg_grid.score(missing_age_X_train, missing_age_Y_train)))
        missing_age_test.loc[:, 'Age_RF'] = rf_reg_grid.predict(missing_age_X_test)
        print(missing_age_test['Age_RF'][:4])

        # two models merge
        print('shape1', missing_age_test['Age'].shape, missing_age_test[['Age_GB', 'Age_RF']].mode(axis=1).shape)
        # missing_age_test['Age'] = missing_age_test[['Age_GB', 'Age_LR']].mode(axis=1)

        missing_age_test.loc[:, 'Age'] = np.mean([missing_age_test['Age_GB'], missing_age_test['Age_RF']])
        print(missing_age_test['Age'][:4])

        missing_age_test.drop(['Age_GB', 'Age_RF'], axis=1, inplace=True)

        return missing_age_test


    利用融合模型预测的结果填充Age的缺失值:

    combined_train_test.loc[(combined_train_test.Age.isnull()), 'Age'] = fill_missing_age(missing_age_train, missing_age_test)

    Fitting 10 folds for each of 1 candidates, totalling 10 fits


    [Parallel(n_jobs=25)]: Done   5 out of  10 | elapsed:    3.9s remaining:    3.9s
    [Parallel(n_jobs=25)]: Done  10 out of  10 | elapsed:    6.9s finished


    Age feature Best GB Params:{'n_estimators': 2000, 'learning_rate': 0.01, 'max_features': 3, 'max_depth': 4}
    Age feature Best GB Score:-130.295677599
    GB Train Error for "Age" Feature Regressor:-64.6566961723
    5     35.773942
    17    31.489153
    19    34.113840
    26    28.621281
    Name: Age_GB, dtype: float64
    Fitting 10 folds for each of 1 candidates, totalling 10 fits


    [Parallel(n_jobs=25)]: Done   5 out of  10 | elapsed:    6.2s remaining:    6.2s
    [Parallel(n_jobs=25)]: Done  10 out of  10 | elapsed:   10.7s finished


    Age feature Best RF Params:{'n_estimators': 200, 'random_state': 0, 'max_depth': 5}
    Age feature Best RF Score:-119.094956052
    RF Train Error for "Age" Feature Regressor-96.0603148448
    5     33.459421
    17    33.076798
    19    34.855942
    26    28.146718
    Name: Age_RF, dtype: float64
    shape1 (263,) (263, 2)
    5     30.000675
    17    30.000675
    19    30.000675
    26    30.000675
    Name: Age, dtype: float64


    (8) Ticket

    观察Ticket的值,我们可以看到,Ticket有字母和数字之分,而对于不同的字母,可能在很大程度上就意味着船舱等级或者不同船舱的位置,也会对Survived产生一定的影响,所以我们将Ticket中的字母分开,为数字的部分则分为一类。

    combined_train_test['Ticket_Letter'] = combined_train_test['Ticket'].str.split().str[0]
    combined_train_test['Ticket_Letter'] = combined_train_test['Ticket_Letter'].apply(lambda x: 'U0' if x.isnumeric() else x)

    # 如果要提取数字信息,则也可以这样做,现在我们对数字票单纯地分为一类。
    # combined_train_test['Ticket_Number'] = combined_train_test['Ticket'].apply(lambda x: pd.to_numeric(x, errors='coerce'))
    # combined_train_test['Ticket_Number'].fillna(0, inplace=True)

    # 将 Ticket_Letter factorize
    combined_train_test['Ticket_Letter'] = pd.factorize(combined_train_test['Ticket_Letter'])[0]


    (9) Cabin

    因为Cabin项的缺失值确实太多了,我们很难对其进行分析,或者预测。所以这里我们可以直接将Cabin这一项特征去除。但通过上面的分析,可以知道,该特征信息的有无也与生存率有一定的关系,所以这里我们暂时保留该特征,并将其分为有和无两类。

    combined_train_test.loc[combined_train_test.Cabin.isnull(), 'Cabin'] = 'U0'
    combined_train_test['Cabin'] = combined_train_test['Cabin'].apply(lambda x: 0 if x == 'U0' else 1)


    特征间相关性分析

    我们挑选一些主要的特征,生成特征之间的关联图,查看特征与特征之间的相关性:

    Correlation = pd.DataFrame(combined_train_test[
        ['Embarked', 'Sex', 'Title', 'Name_length', 'Family_Size', 'Family_Size_Category','Fare', 'Fare_bin_id', 'Pclass',
         'Pclass_Fare_Category', 'Age', 'Ticket_Letter', 'Cabin']])

    colormap = plt.cm.viridis
    plt.figure(figsize=(14,12))
    plt.title('Pearson Correlation of Features', y=1.05, size=15)
    sns.heatmap(Correlation.astype(float).corr(),linewidths=0.1,vmax=1.0, square=True, cmap=colormap, linecolor='white', annot=True)

    <matplotlib.axes._subplots.AxesSubplot at 0x230c7995208>


    这里写图片描述

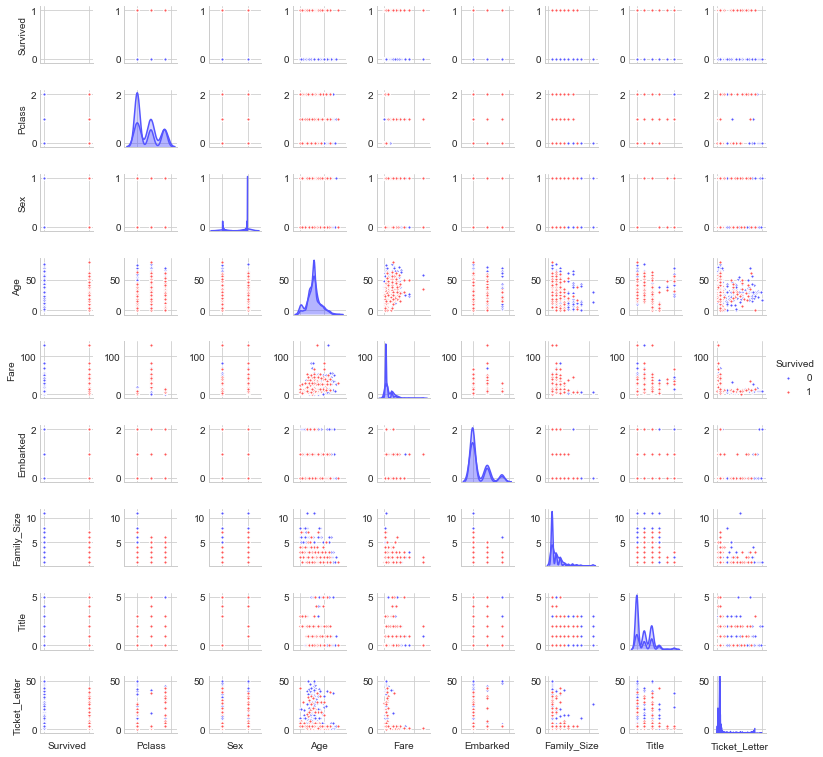

    特征之间的数据分布图

    g = sns.pairplot(combined_train_test[[u'Survived', u'Pclass', u'Sex', u'Age', u'Fare', u'Embarked',
           u'Family_Size', u'Title', u'Ticket_Letter']], hue='Survived', palette = 'seismic',size=1.2,diag_kind = 'kde',diag_kws=dict(shade=True),plot_kws=dict(s=10) )
    g.set(xticklabels=[])

    <seaborn.axisgrid.PairGrid at 0x230c62a84a8>


    这里写图片描述

    输入模型前的一些处理:

    1. 一些数据的正则化

    这里我们将Age和fare进行正则化:

    scale_age_fare = preprocessing.StandardScaler().fit(combined_train_test[['Age','Fare', 'Name_length']])
    combined_train_test[['Age','Fare', 'Name_length']] = scale_age_fare.transform(combined_train_test[['Age','Fare', 'Name_length']])


    2. 弃掉无用特征

    对于上面的特征工程中,我们从一些原始的特征中提取出了很多要融合到模型中的特征,但是我们需要剔除那些原本的我们用不到的或者非数值特征:

    首先对我们的数据先进行一下备份,以便后期的再次分析:

    combined_data_backup = combined_train_test

    combined_train_test.drop(['PassengerId', 'Embarked', 'Sex', 'Name', 'Title', 'Fare_bin_id', 'Pclass_Fare_Category',
                              'Parch', 'SibSp', 'Family_Size_Category', 'Ticket'],axis=1,inplace=True)


    3. 将训练数据和测试数据分开:

    train_data = combined_train_test[:891]
    test_data = combined_train_test[891:]

    titanic_train_data_X = train_data.drop(['Survived'],axis=1)
    titanic_train_data_Y = train_data['Survived']
    titanic_test_data_X = test_data.drop(['Survived'],axis=1)

    titanic_train_data_X.shape

    (891, 32)


    6. 模型融合及测试

    模型融合的过程需要分几步来进行。

    (1) 利用不同的模型来对特征进行筛选,选出较为重要的特征:

    from sklearn.ensemble import RandomForestClassifier
    from sklearn.ensemble import AdaBoostClassifier
    from sklearn.ensemble import ExtraTreesClassifier
    from sklearn.ensemble import GradientBoostingClassifier
    from sklearn.tree import DecisionTreeClassifier

    def get_top_n_features(titanic_train_data_X, titanic_train_data_Y, top_n_features):

        # random forest
        rf_est = RandomForestClassifier(random_state=0)
        rf_param_grid = {'n_estimators': [500], 'min_samples_split': [2, 3], 'max_depth': [20]}
        rf_grid = model_selection.GridSearchCV(rf_est, rf_param_grid, n_jobs=25, cv=10, verbose=1)
        rf_grid.fit(titanic_train_data_X, titanic_train_data_Y)
        print('Top N Features Best RF Params:' + str(rf_grid.best_params_))
        print('Top N Features Best RF Score:' + str(rf_grid.best_score_))
        print('Top N Features RF Train Score:' + str(rf_grid.score(titanic_train_data_X, titanic_train_data_Y)))
        feature_imp_sorted_rf = pd.DataFrame({'feature': list(titanic_train_data_X),
                                              'importance': rf_grid.best_estimator_.feature_importances_}).sort_values('importance', ascending=False)
        features_top_n_rf = feature_imp_sorted_rf.head(top_n_features)['feature']
        print('Sample 10 Features from RF Classifier')
        print(str(features_top_n_rf[:10]))

        # AdaBoost
        ada_est =AdaBoostClassifier(random_state=0)
        ada_param_grid = {'n_estimators': [500], 'learning_rate': [0.01, 0.1]}
        ada_grid = model_selection.GridSearchCV(ada_est, ada_param_grid, n_jobs=25, cv=10, verbose=1)
        ada_grid.fit(titanic_train_data_X, titanic_train_data_Y)
        print('Top N Features Best Ada Params:' + str(ada_grid.best_params_))
        print('Top N Features Best Ada Score:' + str(ada_grid.best_score_))
        print('Top N Features Ada Train Score:' + str(ada_grid.score(titanic_train_data_X, titanic_train_data_Y)))
        feature_imp_sorted_ada = pd.DataFrame({'feature': list(titanic_train_data_X),
                                               'importance': ada_grid.best_estimator_.feature_importances_}).sort_values('importance', ascending=False)
        features_top_n_ada = feature_imp_sorted_ada.head(top_n_features)['feature']
        print('Sample 10 Feature from Ada Classifier:')
        print(str(features_top_n_ada[:10]))

        # ExtraTree
        et_est = ExtraTreesClassifier(random_state=0)
        et_param_grid = {'n_estimators': [500], 'min_samples_split': [3, 4], 'max_depth': [20]}
        et_grid = model_selection.GridSearchCV(et_est, et_param_grid, n_jobs=25, cv=10, verbose=1)
        et_grid.fit(titanic_train_data_X, titanic_train_data_Y)
        print('Top N Features Best ET Params:' + str(et_grid.best_params_))
        print('Top N Features Best ET Score:' + str(et_grid.best_score_))
        print('Top N Features ET Train Score:' + str(et_grid.score(titanic_train_data_X, titanic_train_data_Y)))
        feature_imp_sorted_et = pd.DataFrame({'feature': list(titanic_train_data_X),
                                              'importance': et_grid.best_estimator_.feature_importances_}).sort_values('importance', ascending=False)
        features_top_n_et = feature_imp_sorted_et.head(top_n_features)['feature']
        print('Sample 10 Features from ET Classifier:')
        print(str(features_top_n_et[:10]))

        # GradientBoosting
        gb_est =GradientBoostingClassifier(random_state=0)
        gb_param_grid = {'n_estimators': [500], 'learning_rate': [0.01, 0.1], 'max_depth': [20]}
        gb_grid = model_selection.GridSearchCV(gb_est, gb_param_grid, n_jobs=25, cv=10, verbose=1)
        gb_grid.fit(titanic_train_data_X, titanic_train_data_Y)
        print('Top N Features Best GB Params:' + str(gb_grid.best_params_))
        print('Top N Features Best GB Score:' + str(gb_grid.best_score_))
        print('Top N Features GB Train Score:' + str(gb_grid.score(titanic_train_data_X, titanic_train_data_Y)))
        feature_imp_sorted_gb = pd.DataFrame({'feature': list(titanic_train_data_X),
                                               'importance': gb_grid.best_estimator_.feature_importances_}).sort_values('importance', ascending=False)
        features_top_n_gb = feature_imp_sorted_gb.head(top_n_features)['feature']
        print('Sample 10 Feature from GB Classifier:')
        print(str(features_top_n_gb[:10]))

        # DecisionTree
        dt_est = DecisionTreeClassifier(random_state=0)
        dt_param_grid = {'min_samples_split': [2, 4], 'max_depth': [20]}
        dt_grid = model_selection.GridSearchCV(dt_est, dt_param_grid, n_jobs=25, cv=10, verbose=1)
        dt_grid.fit(titanic_train_data_X, titanic_train_data_Y)
        print('Top N Features Best DT Params:' + str(dt_grid.best_params_))
        print('Top N Features Best DT Score:' + str(dt_grid.best_score_))
        print('Top N Features DT Train Score:' + str(dt_grid.score(titanic_train_data_X, titanic_train_data_Y)))
        feature_imp_sorted_dt = pd.DataFrame({'feature': list(titanic_train_data_X),
                                              'importance': dt_grid.best_estimator_.feature_importances_}).sort_values('importance', ascending=False)
        features_top_n_dt = feature_imp_sorted_dt.head(top_n_features)['feature']
        print('Sample 10 Features from DT Classifier:')
        print(str(features_top_n_dt[:10]))

        # merge the three models
        features_top_n = pd.concat([features_top_n_rf, features_top_n_ada, features_top_n_et, features_top_n_gb, features_top_n_dt],
                                   ignore_index=True).drop_duplicates()

        features_importance = pd.concat([feature_imp_sorted_rf, feature_imp_sorted_ada, feature_imp_sorted_et,
                                       feature_imp_sorted_gb, feature_imp_sorted_dt],ignore_index=True)

        return features_top_n , features_importance


    (2) 依据我们筛选出的特征构建训练集和测试集

    但如果在进行特征工程的过程中,产生了大量的特征,而特征与特征之间会存在一定的相关性。太多的特征一方面会影响模型训练的速度,另一方面也可能会使得模型过拟合。所以在特征太多的情况下,我们可以利用不同的模型对特征进行筛选,选取出我们想要的前n个特征。

    feature_to_pick = 30
    feature_top_n, feature_importance = get_top_n_features(titanic_train_data_X, titanic_train_data_Y, feature_to_pick)
    titanic_train_data_X = pd.DataFrame(titanic_train_data_X[feature_top_n])
    titanic_test_data_X = pd.DataFrame(titanic_test_data_X[feature_top_n])

    Fitting 10 folds for each of 2 candidates, totalling 20 fits


    [Parallel(n_jobs=25)]: Done  13 out of  20 | elapsed:   13.7s remaining:    7.3s
    [Parallel(n_jobs=25)]: Done  20 out of  20 | elapsed:   19.2s finished


    Top N Features Best RF Params:{'n_estimators': 500, 'min_samples_split': 3, 'max_depth': 20}
    Top N Features Best RF Score:0.822671156004
    Top N Features RF Train Score:0.979797979798
    Sample 10 Features from RF Classifier
    15      Name_length
    0               Age
    2              Fare
    7             Sex_0
    9           Title_0
    8             Sex_1
    27      Family_Size
    3            Pclass
    31    Ticket_Letter
    11          Title_2
    Name: feature, dtype: object
    Fitting 10 folds for each of 2 candidates, totalling 20 fits


    [Parallel(n_jobs=25)]: Done  13 out of  20 | elapsed:   10.3s remaining:    5.5s
    [Parallel(n_jobs=25)]: Done  20 out of  20 | elapsed:   14.9s finished


    Top N Features Best Ada Params:{'n_estimators': 500, 'learning_rate': 0.01}
    Top N Features Best Ada Score:0.81593714927
    Top N Features Ada Train Score:0.820426487093
    Sample 10 Feature from Ada Classifier:
    9                    Title_0
    2                       Fare
    27               Family_Size
    7                      Sex_0
    3                     Pclass
    28    Family_Size_Category_0
    1                      Cabin
    8                      Sex_1
    15               Name_length
    0                        Age
    Name: feature, dtype: object
    Fitting 10 folds for each of 2 candidates, totalling 20 fits


    [Parallel(n_jobs=25)]: Done  13 out of  20 | elapsed:    9.8s remaining:    5.3s
    [Parallel(n_jobs=25)]: Done  20 out of  20 | elapsed:   14.2s finished


    Top N Features Best ET Params:{'n_estimators': 500, 'min_samples_split': 4, 'max_depth': 20}
    Top N Features Best ET Score:0.828282828283
    Top N Features ET Train Score:0.971941638608
    Sample 10 Features from ET Classifier:
    9           Title_0
    8             Sex_1
    7             Sex_0
    15      Name_length
    0               Age
    2              Fare
    1             Cabin
    31    Ticket_Letter
    11          Title_2
    10          Title_1
    Name: feature, dtype: object
    Fitting 10 folds for each of 2 candidates, totalling 20 fits


    [Parallel(n_jobs=25)]: Done  13 out of  20 | elapsed:   25.9s remaining:   13.9s
    [Parallel(n_jobs=25)]: Done  20 out of  20 | elapsed:   27.9s finished


    Top N Features Best GB Params:{'n_estimators': 500, 'learning_rate': 0.1, 'max_depth': 20}
    Top N Features Best GB Score:0.789001122334
    Top N Features GB Train Score:0.996632996633
    Sample 10 Feature from GB Classifier:
    0               Age
    2              Fare
    15      Name_length
    31    Ticket_Letter
    9           Title_0
    27      Family_Size
    23         Pclass_2
    3            Pclass
    18           Fare_2
    14          Title_5
    Name: feature, dtype: object
    Fitting 10 folds for each of 2 candidates, totalling 20 fits


    [Parallel(n_jobs=25)]: Done  13 out of  20 | elapsed:    6.3s remaining:    3.3s
    [Parallel(n_jobs=25)]: Done  20 out of  20 | elapsed:    9.6s finished


    Top N Features Best DT Params:{'min_samples_split': 4, 'max_depth': 20}
    Top N Features Best DT Score:0.784511784512
    Top N Features DT Train Score:0.959595959596
    Sample 10 Features from DT Classifier:
    9           Title_0
    0               Age
    2              Fare
    15      Name_length
    27      Family_Size
    14          Title_5
    26         Pclass_5
    3            Pclass
    31    Ticket_Letter
    23         Pclass_2
    Name: feature, dtype: object


    用视图可视化不同算法筛选的特征排序:

    rf_feature_imp = feature_importance[:10]
    Ada_feature_imp = feature_importance[32:32+10].reset_index(drop=True)

    # make importances relative to max importance
    rf_feature_importance = 100.0 * (rf_feature_imp['importance'] / rf_feature_imp['importance'].max())
    Ada_feature_importance = 100.0 * (Ada_feature_imp['importance'] / Ada_feature_imp['importance'].max())

    # Get the indexes of all features over the importance threshold
    rf_important_idx = np.where(rf_feature_importance)[0]
    Ada_important_idx = np.where(Ada_feature_importance)[0]

    # Adapted from http://scikit-learn.org/stable/auto_examples/ensemble/plot_gradient_boosting_regression.html
    pos = np.arange(rf_important_idx.shape[0]) + .5

    plt.figure(1, figsize = (18, 8))

    plt.subplot(121)
    plt.barh(pos, rf_feature_importance[rf_important_idx][::-1])
    plt.yticks(pos, rf_feature_imp['feature'][::-1])
    plt.xlabel('Relative Importance')
    plt.title('RandomForest Feature Importance')

    plt.subplot(122)
    plt.barh(pos, Ada_feature_importance[Ada_important_idx][::-1])
    plt.yticks(pos, Ada_feature_imp['feature'][::-1])
    plt.xlabel('Relative Importance')
    plt.title('AdaBoost Feature Importance')

    plt.show()


    这里写图片描述

    (3) 模型融合(Model Ensemble)

    常见的模型融合方法有:Bagging、Boosting、Stacking、Blending。

    (3-1):Bagging

    Bagging 将多个模型,也就是多个基学习器的预测结果进行简单的加权平均或者投票。它的好处是可以并行地训练基学习器。Random Forest就用到了Bagging的思想。

    (3-2): Boosting

    Boosting 的思想有点像知错能改,每个基学习器是在上一个基学习器学习的基础上,对上一个基学习器的错误进行弥补。我们将会用到的 AdaBoost,Gradient Boost 就用到了这种思想。

    (3-3): Stacking

    Stacking是用新的次学习器去学习如何组合上一层的基学习器。如果把 Bagging 看作是多个基分类器的线性组合,那么Stacking就是多个基分类器的非线性组合。Stacking可以将学习器一层一层地堆砌起来,形成一个网状的结构。

    相比来说Stacking的融合框架相对前面的二者来说在精度上确实有一定的提升,所以在下面的模型融合上,我们也使用Stacking方法。

    (3-4): Blending

    Blending 和 Stacking 很相似,但同时它可以防止信息泄露的问题。

    Stacking框架融合:

    这里我们使用了两层的模型融合,Level 1使用了:RandomForest、AdaBoost、ExtraTrees、GBDT、DecisionTree、KNN、SVM ,一共7个模型,Level 2使用了XGBoost使用第一层预测的结果作为特征对最终的结果进行预测。

    Level 1:

    Stacking框架是堆叠使用基础分类器的预测作为对二级模型的训练的输入。 然而,我们不能简单地在全部训练数据上训练基本模型,产生预测,输出用于第二层的训练。如果我们在Train Data上训练,然后在Train Data上预测,就会造成标签。为了避免标签,我们需要对每个基学习器使用K-fold,将K个模型对Valid Set的预测结果拼起来,作为下一层学习器的输入。

    所以这里我们建立输出fold预测方法:

    from sklearn.model_selection import KFold

    # Some useful parameters which will come in handy later on
    ntrain = titanic_train_data_X.shape[0]
    ntest = titanic_test_data_X.shape[0]
    SEED = 0 # for reproducibility
    NFOLDS = 7 # set folds for out-of-fold prediction
    kf = KFold(n_splits = NFOLDS, random_state=SEED, shuffle=False)

    def get_out_fold(clf, x_train, y_train, x_test):
        oof_train = np.zeros((ntrain,))
        oof_test = np.zeros((ntest,))
        oof_test_skf = np.empty((NFOLDS, ntest))

        for i, (train_index, test_index) in enumerate(kf.split(x_train)):
            x_tr = x_train[train_index]
            y_tr = y_train[train_index]
            x_te = x_train[test_index]

            clf.fit(x_tr, y_tr)

            oof_train[test_index] = clf.predict(x_te)
            oof_test_skf[i, :] = clf.predict(x_test)

        oof_test[:] = oof_test_skf.mean(axis=0)
        return oof_train.reshape(-1, 1), oof_test.reshape(-1, 1)


    构建不同的基学习器,这里我们使用了RandomForest、AdaBoost、ExtraTrees、GBDT、DecisionTree、KNN、SVM 七个基学习器:(这里的模型可以使用如上面的GridSearch方法对模型的超参数进行搜索选择)

    from sklearn.neighbors import KNeighborsClassifier
    from sklearn.svm import SVC

    rf = RandomForestClassifier(n_estimators=500, warm_start=True, max_features='sqrt',max_depth=6,
                                min_samples_split=3, min_samples_leaf=2, n_jobs=-1, verbose=0)

    ada = AdaBoostClassifier(n_estimators=500, learning_rate=0.1)

    et = ExtraTreesClassifier(n_estimators=500, n_jobs=-1, max_depth=8, min_samples_leaf=2, verbose=0)

    gb = GradientBoostingClassifier(n_estimators=500, learning_rate=0.008, min_samples_split=3, min_samples_leaf=2, max_depth=5, verbose=0)

    dt = DecisionTreeClassifier(max_depth=8)

    knn = KNeighborsClassifier(n_neighbors = 2)

    svm = SVC(kernel='linear', C=0.025)


    将pandas转换为arrays:

    # Create Numpy arrays of train, test and target (Survived) dataframes to feed into our models
    x_train = titanic_train_data_X.values # Creates an array of the train data
    x_test = titanic_test_data_X.values # Creats an array of the test data
    y_train = titanic_train_data_Y.values

    # Create our OOF train and test predictions. These base results will be used as new features
    rf_oof_train, rf_oof_test = get_out_fold(rf, x_train, y_train, x_test) # Random Forest
    ada_oof_train, ada_oof_test = get_out_fold(ada, x_train, y_train, x_test) # AdaBoost
    et_oof_train, et_oof_test = get_out_fold(et, x_train, y_train, x_test) # Extra Trees
    gb_oof_train, gb_oof_test = get_out_fold(gb, x_train, y_train, x_test) # Gradient Boost
    dt_oof_train, dt_oof_test = get_out_fold(dt, x_train, y_train, x_test) # Decision Tree
    knn_oof_train, knn_oof_test = get_out_fold(knn, x_train, y_train, x_test) # KNeighbors
    svm_oof_train, svm_oof_test = get_out_fold(svm, x_train, y_train, x_test) # Support Vector

    print("Training is complete")

    Training is complete


    (4) 预测并生成提交文件

    Level 2:

    我们利用XGBoost,使用第一层预测的结果作为特征对最终的结果进行预测。

    x_train = np.concatenate((rf_oof_train, ada_oof_train, et_oof_train, gb_oof_train, dt_oof_train, knn_oof_train, svm_oof_train), axis=1)
    x_test = np.concatenate((rf_oof_test, ada_oof_test, et_oof_test, gb_oof_test, dt_oof_test, knn_oof_test, svm_oof_test), axis=1)

    from xgboost import XGBClassifier

    gbm = XGBClassifier( n_estimators= 2000, max_depth= 4, min_child_weight= 2, gamma=0.9, subsample=0.8,
                            colsample_bytree=0.8, objective= 'binary:logistic', nthread= -1, scale_pos_weight=1).fit(x_train, y_train)
    predictions = gbm.predict(x_test)

    D:\Anaconda\anaconda3\envs\tensorflow\lib\site-packages\sklearn\cross_validation.py:41: DeprecationWarning: This module was deprecated in version 0.18 in favor of the model_selection module into which all the refactored classes and functions are moved. Also note that the interface of the new CV iterators are different from that of this module. This module will be removed in 0.20.
      "This module will be removed in 0.20.", DeprecationWarning)

    StackingSubmission = pd.DataFrame({'PassengerId': PassengerId, 'Survived': predictions})
    StackingSubmission.to_csv('StackingSubmission.csv',index=False,sep=',')


    7. 验证:学习曲线

    在我们对数据不断地进行特征工程,产生的特征越来越多,用大量的特征对模型进行训练,会使我们的训练集拟合得越来越好,但同时也可能会逐渐丧失泛化能力,从而在测试数据上表现不佳,发生过拟合现象。

    当然我们建立的模型可能不仅在预测集上表型不好,也很可能是因为在训练集上的表现就不佳,处于欠拟合状态。

    下图是在吴恩达老师的机器学习课程上给出的四种学习曲线:

    这里写图片描述

    上面红线代表test error(Cross-validation error),蓝线代表train error。这里我们也可以把错误率替换为准确率,那么相应曲线的走向就应该是上下颠倒的,(score = 1 - error)。

    注意我们的图中是error曲线。

    1. 左上角是最优情况,随着样本的增加,train error虽然有一定的增加吗,但是 test error却有很明显的降低;
    1. 右上角是最差情况,train error很大,模型并没有从特征中学习到什么,导致test error非常大,模型几乎无法预测数据,需要去寻找数据本身和训练阶段的原因;
    2. 左下角是high variance的情况,train error虽然较低,但是模型产生了过拟合,缺乏泛化能力,导致test error很高;
    3. 右下角是high bias的情况,train error很高,这时需要去调整模型的参数,减小train error。

    所以我们通过学习曲线观察模型处于什么样的状态。从而决定对模型进行如何的操作。当然,我们把验证放到最后,并不是是这一步是在最后去做。对于我们的Stacking框架中第一层的各个基学习器我们都应该对其学习曲线进行观察,从而去更好地调节超参数,进而得到更好的最终结果。

    构建绘制学习曲线的函数:

    from sklearn.learning_curve import learning_curve

    def plot_learning_curve(estimator, title, X, y, ylim=None, cv=None,
                            n_jobs=1, train_sizes=np.linspace(.1, 1.0, 5), verbose=0):
        """
        Generate a simple plot of the test and traning learning curve.

        Parameters
        ----------
        estimator : object type that implements the "fit" and "predict" methods
            An object of that type which is cloned for each validation.

        title : string
            Title for the chart.

        X : array-like, shape (n_samples, n_features)
            Training vector, where n_samples is the number of samples and
            n_features is the number of features.

        y : array-like, shape (n_samples) or (n_samples, n_features), optional
            Target relative to X for classification or regression;
            None for unsupervised learning.

        ylim : tuple, shape (ymin, ymax), optional
            Defines minimum and maximum yvalues plotted.

        cv : integer, cross-validation generator, optional
            If an integer is passed, it is the number of folds (defaults to 3).
            Specific cross-validation objects can be passed, see
            sklearn.cross_validation module for the list of possible objects

        n_jobs : integer, optional
            Number of jobs to run in parallel (default 1).
        """
        plt.figure()
        plt.title(title)
        if ylim is not None:
            plt.ylim(*ylim)
        plt.xlabel("Training examples")
        plt.ylabel("Score")
        train_sizes, train_scores, test_scores = learning_curve(
            estimator, X, y, cv=cv, n_jobs=n_jobs, train_sizes=train_sizes)
        train_scores_mean = np.mean(train_scores, axis=1)
        train_scores_std = np.std(train_scores, axis=1)
        test_scores_mean = np.mean(test_scores, axis=1)
        test_scores_std = np.std(test_scores, axis=1)
        plt.grid()

        plt.fill_between(train_sizes, train_scores_mean - train_scores_std,
                         train_scores_mean + train_scores_std, alpha=0.1,
                         color="r")
        plt.fill_between(train_sizes, test_scores_mean - test_scores_std,
                         test_scores_mean + test_scores_std, alpha=0.1, color="g")
        plt.plot(train_sizes, train_scores_mean, 'o-', color="r",
                 label="Training score")
        plt.plot(train_sizes, test_scores_mean, 'o-', color="g",
                 label="Cross-validation score")

        plt.legend(loc="best")
        return plt

    D:\Anaconda\anaconda3\envs\tensorflow\lib\site-packages\sklearn\learning_curve.py:22: DeprecationWarning: This module was deprecated in version 0.18 in favor of the model_selection module into which all the functions are moved. This module will be removed in 0.20
      DeprecationWarning)


    逐一观察不同模型的学习曲线:

    X = x_train
    Y = y_train

    # RandomForest
    rf_parameters = {'n_jobs': -1, 'n_estimators': 500, 'warm_start': True, 'max_depth': 6, 'min_samples_leaf': 2,
                     'max_features' : 'sqrt','verbose': 0}

    # AdaBoost
    ada_parameters = {'n_estimators':500, 'learning_rate':0.1}

    # ExtraTrees
    et_parameters = {'n_jobs': -1, 'n_estimators':500, 'max_depth': 8, 'min_samples_leaf': 2, 'verbose': 0}

    # GradientBoosting
    gb_parameters = {'n_estimators': 500, 'max_depth': 5, 'min_samples_leaf': 2, 'verbose': 0}

    # DecisionTree
    dt_parameters = {'max_depth':8}

    # KNeighbors
    knn_parameters = {'n_neighbors':2}

    # SVM
    svm_parameters = {'kernel':'linear', 'C':0.025}

    # XGB
    gbm_parameters = {'n_estimators': 2000, 'max_depth': 4, 'min_child_weight': 2, 'gamma':0.9, 'subsample':0.8,
                      'colsample_bytree':0.8, 'objective': 'binary:logistic', 'nthread':-1, 'scale_pos_weight':1}

    title = "Learning Curves"
    plot_learning_curve(RandomForestClassifier(**rf_parameters), title, X, Y, cv=None,  n_jobs=4, train_sizes=[50, 100, 150, 200, 250, 350, 400, 450, 500])
    plt.show()


    这里写图片描述

    由上面的分析我们可以看出,对于RandomForest的模型,这里是存在一定的问题的,所以我们需要去调整模型的超参数,从而达到更好的效果。

    8. 超参数调试

    将生成的提交文件到Kaggle提交,得分结果:

    • xgboost stacking:0.78468;
    • voting bagging :0.79904;

    这也说明了我们的stacking模型还有很大的改进空间。所以我们可以在以下几个方面进行改进,提高模型预测的精度:

    • 特征工程:寻找更好的特征、删去影响较大的冗余特征;
    • 模型超参数调试:改进欠拟合或者过拟合的状态;
    • 改进模型框架:对于stacking框架的各层模型进行更好的选择;

    调参的过程…慢慢尝试吧。


    参考引用:

    1. 分分钟带你杀入Kaggle Top 1%
    2. 机器学习实战之Kaggle_Titanic预测
    3. 泰坦尼克号乘客数据分析
    4. Kaggle泰坦尼克号生存模型——250个特征量的融合模型,排名8%
    5. Introduction to Ensembling/Stacking in Python
    6. A Journey through Titanic

    如有错误之处,欢迎各位批评指正。

    展开全文
  • Titanic生存预测2

    2018-02-06 18:41:06
    上一篇:Titanic生存预测1,主要讲了如何做的特征工程。 这一篇讲如何训练模型来实现预测。 %matplotlib inline from sklearn import svm, tree, linear_model, neighbors, naive_bayes, ensemble, discriminant_...

    背景音乐:保留 - 郭顶

    上一篇:Titanic生存预测1,主要讲了如何做的特征工程。

    这一篇讲如何训练模型来实现预测。

    %matplotlib inline
    from sklearn import svm, tree, linear_model, neighbors, naive_bayes, ensemble, discriminant_analysis, gaussian_process
    from xgboost import XGBClassifier
    from sklearn.preprocessing import OneHotEncoder, LabelEncoder
    from sklearn import feature_selection
    from sklearn import model_selection
    from sklearn import metrics
    import pandas as pd
    import time
    import seaborn as sns
    import matplotlib.pyplot as plt
    from sklearn.preprocessing import StandardScaler


    1. 读取数据

    path_data = '../../data/titanic/'
    df = pd.read_csv(path_data + 'fe_data.csv')

    df_data_y = df['Survived']
    df_data_x = df.drop(['Survived', 'PassengerId'], 1)

    df_train_x = df_data_x.iloc[:891, :]  # 前891个数据是训练集
    df_train_y = df_data_y[:891]


    2. 特征选择

    我选择用GBDT来进行特征选择,这是由决策树本身的算法特性所决定的,每次通过计算信息增益(或其他准则)来选择特征进行分割,在预测的同时也对特征的贡献进行了“衡量”,因此比较容易可视化~

    cv_split = model_selection.ShuffleSplit(n_splits = 10, test_size = .3, train_size = .6, random_state = 0)
    gbdt_rfe = feature_selection.RFECV(ensemble.GradientBoostingClassifier(random_state=2018), step = 1, scoring = 'accuracy', cv = cv_split)
    gbdt_rfe.fit(df_train_x, df_train_y)
    columns_rfe = df_train_x.columns.values[gbdt_rfe.get_support()]
    print('Picked columns: {}'.format(columns_rfe))
    print("Optimal number of features : {}/{}".format(gbdt_rfe.n_features_, len(df_train_x.columns)))
    plt.figure()
    plt.xlabel("Number of features selected")
    plt.ylabel("Cross validation score (nb of correct classifications)")
    plt.plot(range(1, len(gbdt_rfe.grid_scores_) + 1), gbdt_rfe.grid_scores_)
    plt.show()


    结果显示:

    Picked columns: ['Age' 'Fare' 'Pclass' 'SibSp' 'FamilySize' 'Family_Survival' 'Sex_Code' 'Title_Master' 'Title_Mr' 'Cabin_C' 'Cabin_E' 'Cabin_X']
    Optimal number of features : 12/24


    大约在5个以上特征的时候,交叉验证集的分数就已经趋于稳定了。说明在现有特征中,有贡献的特征并不多……

    最好的结果出现在12个特征的时候。但需要注意的是,比赛的比分不是由你的交叉验证集决定,所以存在一定的偶然性,鉴于特征数量在比较长的跨度上表现接近,因此我觉得有机会的话,特征数量从5到24的每种选择都值得一试。

    我个人比较了24个特征和12个特征,表现最好的是24个全选……没试其他的。

    然后对特征进行标准化,用以训练:

    stsc = StandardScaler()
    df_data_x = stsc.fit_transform(df_data_x)
    print('mean:\n', stsc.mean_)
    print('var:\n', stsc.var_)

    df_train_x = df_data_x[:891]
    df_train_y = df_data_y[:891]

    df_test_x = df_data_x[891:]
    df_test_output = df.iloc[891:, :][['PassengerId','Survived']]


    3.模型融合

    机器学习的套路是:

    1. 先选择一个基础模型,进行训练和预测,最快建立起一个pipeline。
    2. 在此基础上用交叉验证和GridSearch对模型调参,查看模型的表现。
    3. 用模型融合进行多个模型的组合,用投票的方式(或其他)来预测结果。

    一般来说,模型融合得到的结果会比单个模型的要好。

    在这里,我跳过了步骤1和2,直接进行步骤3。

    3.1 设置基本参数

    vote_est = [
        ('ada', ensemble.AdaBoostClassifier()),
        ('bc', ensemble.BaggingClassifier()),
        ('etc', ensemble.ExtraTreesClassifier()),
        ('gbc', ensemble.GradientBoostingClassifier()),
        ('rfc', ensemble.RandomForestClassifier()),
        ('gpc', gaussian_process.GaussianProcessClassifier()),
        ('lr', linear_model.LogisticRegressionCV()),
        ('bnb', naive_bayes.BernoulliNB()),
        ('gnb', naive_bayes.GaussianNB()),
        ('knn', neighbors.KNeighborsClassifier()),
        ('svc', svm.SVC(probability=True)),
        ('xgb', XGBClassifier())
    ]

    grid_n_estimator = [10, 50, 100, 300, 500]
    grid_ratio = [.5, .8, 1.0]
    grid_learn = [.001, .005, .01, .05, .1]
    grid_max_depth = [2, 4, 6, 8, 10]
    grid_criterion = ['gini', 'entropy']
    grid_bool = [True, False]
    grid_seed = [0]

    grid_param = [
        # AdaBoostClassifier
        {
            'n_estimators':grid_n_estimator,
            'learning_rate':grid_learn,
            'random_state':grid_seed
        },
        # BaggingClassifier
        {
            'n_estimators':grid_n_estimator,
            'max_samples':grid_ratio,
            'random_state':grid_seed
        },
        # ExtraTreesClassifier
        {
            'n_estimators':grid_n_estimator,
            'criterion':grid_criterion,
            'max_depth':grid_max_depth,
            'random_state':grid_seed
        },
        # GradientBoostingClassifier
        {
            'learning_rate':grid_learn,
            'n_estimators':grid_n_estimator,
            'max_depth':grid_max_depth,
            'random_state':grid_seed,

        },
        # RandomForestClassifier
        {
            'n_estimators':grid_n_estimator,
            'criterion':grid_criterion,
            'max_depth':grid_max_depth,
            'oob_score':[True],
            'random_state':grid_seed
        },
        # GaussianProcessClassifier
        {
            'max_iter_predict':grid_n_estimator,
            'random_state':grid_seed
        },
        # LogisticRegressionCV
        {
            'fit_intercept':grid_bool,  # default: True
            'solver':['newton-cg', 'lbfgs', 'liblinear', 'sag', 'saga'],
            'random_state':grid_seed
        },
        # BernoulliNB
        {
            'alpha':grid_ratio,
        },
        # GaussianNB
        {},
        # KNeighborsClassifier
        {
            'n_neighbors':range(6, 25),
            'weights':['uniform', 'distance'],
            'algorithm':['auto', 'ball_tree', 'kd_tree', 'brute']
        },
        # SVC
        {
            'C':[1, 2, 3, 4, 5],
            'gamma':grid_ratio,
            'decision_function_shape':['ovo', 'ovr'],
            'probability':[True],
            'random_state':grid_seed
        },
        # XGBClassifier
        {
            'learning_rate':grid_learn,
            'max_depth':[1, 2, 4, 6, 8, 10],
            'n_estimators':grid_n_estimator,
            'seed':grid_seed
        }
    ]


    3.2 训练

    对于每个模型都进行调参再组合,不过有的迭代次数较多,为了节省时间我就用了RandomizedSearchCV来简化(还没来得及试验全部GridSearchCV)。

    start_total = time.perf_counter()
    N = 0
    for clf, param in zip (vote_est, grid_param):
        start = time.perf_counter()
        cv_split = model_selection.ShuffleSplit(n_splits = 10, test_size = .3, train_size = .6, random_state = 0)
        if 'n_estimators' not in param.keys():
            print(clf[1].__class__.__name__, 'GridSearchCV')
            best_search = model_selection.GridSearchCV(estimator = clf[1], param_grid = param, cv = cv_split, scoring = 'accuracy')
            best_search.fit(df_train_x, df_train_y)
            best_param = best_search.best_params_
        else:
            print(clf[1].__class__.__name__, 'RandomizedSearchCV')
            best_search2 = model_selection.RandomizedSearchCV(estimator = clf[1], param_distributions = param, cv = cv_split, scoring = 'accuracy')
            best_search2.fit(df_train_x, df_train_y)
            best_param = best_search2.best_params_
        run = time.perf_counter() - start

        print('The best parameter for {} is {} with a runtime of {:.2f} seconds.'.format(clf[1].__class__.__name__, best_param, run))
        clf[1].set_params(**best_param)

    run_total = time.perf_counter() - start_total
    print('Total optimization time was {:.2f} minutes.'.format(run_total/60))


    4. 预测

    投票有两种方式——软投票和硬投票。

    • 硬投票:少数服从多数。
    • 软投票:没研究过,有文章表明,计算的是加权平均概率,预测结果是概率高的。

    如果没有先验经验,那么最好是两种投票方式都算一遍,看看结果如何。

    对于Titanic生存预测,我发现每次都是硬投票的结果要好。

    grid_hard = ensemble.VotingClassifier(estimators = vote_est , voting = 'hard')
    grid_hard_cv = model_selection.cross_validate(grid_hard, df_train_x, df_train_y, cv = cv_split, scoring = 'accuracy')
    grid_hard.fit(df_train_x, df_train_y)

    print("Hard Voting w/Tuned Hyperparameters Training w/bin score mean: {:.2f}". format(grid_hard_cv['train_score'].mean()*100))
    print("Hard Voting w/Tuned Hyperparameters Test w/bin score mean: {:.2f}". format(grid_hard_cv['test_score'].mean()*100))
    print("Hard Voting w/Tuned Hyperparameters Test w/bin score 3*std: +/- {:.2f}". format(grid_hard_cv['test_score'].std()*100*3))
    print('-'*10)

    grid_soft = ensemble.VotingClassifier(estimators = vote_est , voting = 'soft')
    grid_soft_cv = model_selection.cross_validate(grid_soft, df_train_x, df_train_y, cv = cv_split, scoring = 'accuracy')
    grid_soft.fit(df_train_x, df_train_y)

    print("Soft Voting w/Tuned Hyperparameters Training w/bin score mean: {:.2f}". format(grid_soft_cv['train_score'].mean()*100))
    print("Soft Voting w/Tuned Hyperparameters Test w/bin score mean: {:.2f}". format(grid_soft_cv['test_score'].mean()*100))
    print("Soft Voting w/Tuned Hyperparameters Test w/bin score 3*std: +/- {:.2f}". format(grid_soft_cv['test_score'].std()*100*3))


    结果为:

    Hard Voting w/Tuned Hyperparameters Training w/bin score mean: 89.70
    Hard Voting w/Tuned Hyperparameters Test w/bin score mean: 85.97
    Hard Voting w/Tuned Hyperparameters Test w/bin score 3*std: +/- 5.95
    ----------
    Soft Voting w/Tuned Hyperparameters Training w/bin score mean: 90.02
    Soft Voting w/Tuned Hyperparameters Test w/bin score mean: 85.52
    Soft Voting w/Tuned Hyperparameters Test w/bin score 3*std: +/- 6.07


    硬投票得出的预测结果,在测试集上的分数较高,标准差较小,优选硬投票。

    5. 提交结果:

    用硬投票作为预测的方案,得到结果并提交。

    df_test_output['Survived'] = grid_hard.predict(df_test_x)
    df_test_output.to_csv('../../data/titanic/hardvote.csv', index = False)


    在官网上提交结果,给出的分数是0.81339。


    后记

    Titanic这个项目很值得一试,在实践的过程中,我参考了一些参赛者在kaggle上分享的kernel,收益良多。

    但作为入门项目,重在参与,后面有空了再做一遍,看是否能有提高。

    接下来,我会尝试参加猫狗大战
    也就是编写一个算法来分类图像是否包含狗或猫。
    这对人类,狗和猫来说很容易,但用算法如何实现呢?拭目以待。

    展开全文
  • 原标题:Kaggle Titanic 生存预测比赛超完整笔记(下) 本文作者大树先生,首发于作者的知乎专栏《机器学习之路》, AI研习社获其授权发布。一直想在Kaggle上参加一次比赛,奈何被各种事情所拖累。为了熟悉一下比赛...

    原标题:Kaggle Titanic 生存预测比赛超完整笔记(下)


    本文作者大树先生,首发于作者的知乎专栏《机器学习之路》, AI研习社获其授权发布。

    一直想在Kaggle上参加一次比赛,奈何被各种事情所拖累。为了熟悉一下比赛的流程和对数据建模有个较为直观的认识,断断续续用一段时间做了Kaggle上的入门比赛:Titanic: Machine Learning from Disaster。

    总的来说收获还算是挺大的吧。本来想的是只简单的做一下,在整个进行的过程中发现有很多好的Kernels以及数据分析的流程和方法,但是却鲜有比较清晰直观的流程和较为全面的分析方法。所以,本着自己强迫症的精神,同时也算对这次小比赛的一些方式方法以及绘图分析技巧做一个较为系统的笔记,经过几天快要吐血的整理下,本文新鲜出炉。

    本文参考了若干kernels以及博客知文,文章下方均有引用说明。

    6. 模型融合及测试

    模型融合的过程需要分几步来进行。

    (1) 利用不同的模型来对特征进行筛选,选出较为重要的特征:

    fromsklearn.ensembleimportRandomForestClassifierfromsklearn.ensembleimportAdaBoostClassifierfromsklearn.ensembleimportExtraTreesClassifierfromsklearn.ensembleimportGradientBoostingClassifierfromsklearn.treeimportDecisionTreeClassifierdefget_top_n_features(titanic_train_data_X,titanic_train_data_Y,top_n_features):# random forestrf_est=RandomForestClassifier(random_state=0)rf_param_grid={'n_estimators':[500],'min_samples_split':[2,3],'max_depth':[20]}rf_grid=model_selection.GridSearchCV(rf_est,rf_param_grid,n_jobs=25,cv=10,verbose=1)rf_grid.fit(titanic_train_data_X,titanic_train_data_Y)print('Top N Features Best RF Params:'+str(rf_grid.best_params_))print('Top N Features Best RF Score:'+str(rf_grid.best_score_))print('Top N Features RF Train Score:'+str(rf_grid.score(titanic_train_data_X,titanic_train_data_Y)))feature_imp_sorted_rf=pd.DataFrame({'feature':list(titanic_train_data_X),'importance':rf_grid.best_estimator_.feature_importances_}).sort_values('importance',ascending=False)features_top_n_rf=feature_imp_sorted_rf.head(top_n_features)['feature']print('Sample 10 Features from RF Classifier')print(str(features_top_n_rf[:10]))# AdaBoostada_est=AdaBoostClassifier(random_state=0)ada_param_grid={'n_estimators':[500],'learning_rate':[0.01,0.1]}ada_grid=model_selection.GridSearchCV(ada_est,ada_param_grid,n_jobs=25,cv=10,verbose=1)ada_grid.fit(titanic_train_data_X,titanic_train_data_Y)print('Top N Features Best Ada Params:'+str(ada_grid.best_params_))print('Top N Features Best Ada Score:'+str(ada_grid.best_score_))print('Top N Features Ada Train Score:'+str(ada_grid.score(titanic_train_data_X,titanic_train_data_Y)))feature_imp_sorted_ada=pd.DataFrame({'feature':list(titanic_train_data_X),'importance':ada_grid.best_estimator_.feature_importances_}).sort_values('importance',ascending=False)features_top_n_ada=feature_imp_sorted_ada.head(top_n_features)['feature']print('Sample 10 Feature from Ada Classifier:')print(str(features_top_n_ada[:10]))# ExtraTreeet_est=ExtraTreesClassifier(random_state=0)et_param_grid={'n_estimators':[500],'min_samples_split':[3,4],'max_depth':[20]}et_grid=model_selection.GridSearchCV(et_est,et_param_grid,n_jobs=25,cv=10,verbose=1)et_grid.fit(titanic_train_data_X,titanic_train_data_Y)print('Top N Features Best ET Params:'+str(et_grid.best_params_))print('Top N Features Best ET Score:'+str(et_grid.best_score_))print('Top N Features ET Train Score:'+str(et_grid.score(titanic_train_data_X,titanic_train_data_Y)))feature_imp_sorted_et=pd.DataFrame({'feature':list(titanic_train_data_X),'importance':et_grid.best_estimator_.feature_importances_}).sort_values('importance',ascending=False)features_top_n_et=feature_imp_sorted_et.head(top_n_features)['feature']print('Sample 10 Features from ET Classifier:')print(str(features_top_n_et[:10]))# GradientBoostinggb_est=GradientBoostingClassifier(random_state=0)gb_param_grid={'n_estimators':[500],'learning_rate':[0.01,0.1],'max_depth':[20]}gb_grid=model_selection.GridSearchCV(gb_est,gb_param_grid,n_jobs=25,cv=10,verbose=1)gb_grid.fit(titanic_train_data_X,titanic_train_data_Y)print('Top N Features Best GB Params:'+str(gb_grid.best_params_))print('Top N Features Best GB Score:'+str(gb_grid.best_score_))print('Top N Features GB Train Score:'+str(gb_grid.score(titanic_train_data_X,titanic_train_data_Y)))feature_imp_sorted_gb=pd.DataFrame({'feature':list(titanic_train_data_X),'importance':gb_grid.best_estimator_.feature_importances_}).sort_values('importance',ascending=False)features_top_n_gb=feature_imp_sorted_gb.head(top_n_features)['feature']print('Sample 10 Feature from GB Classifier:')print(str(features_top_n_gb[:10]))# DecisionTreedt_est=DecisionTreeClassifier(random_state=0)dt_param_grid={'min_samples_split':[2,4],'max_depth':[20]}dt_grid=model_selection.GridSearchCV(dt_est,dt_param_grid,n_jobs=25,cv=10,verbose=1)dt_grid.fit(titanic_train_data_X,titanic_train_data_Y)print('Top N Features Best DT Params:'+str(dt_grid.best_params_))print('Top N Features Best DT Score:'+str(dt_grid.best_score_))print('Top N Features DT Train Score:'+str(dt_grid.score(titanic_train_data_X,titanic_train_data_Y)))feature_imp_sorted_dt=pd.DataFrame({'feature':list(titanic_train_data_X),'importance':dt_grid.best_estimator_.feature_importances_}).sort_values('importance',ascending=False)features_top_n_dt=feature_imp_sorted_dt.head(top_n_features)['feature']print('Sample 10 Features from DT Classifier:')print(str(features_top_n_dt[:10]))# merge the three modelsfeatures_top_n=pd.concat([features_top_n_rf,features_top_n_ada,features_top_n_et,features_top_n_gb,features_top_n_dt],ignore_index=True).drop_duplicates()features_importance=pd.concat([feature_imp_sorted_rf,feature_imp_sorted_ada,feature_imp_sorted_et,feature_imp_sorted_gb,feature_imp_sorted_dt],ignore_index=True)returnfeatures_top_n,features_importance

    (2) 依据我们筛选出的特征构建训练集和测试集

    但如果在进行特征工程的过程中,产生了大量的特征,而特征与特征之间会存在一定的相关性。太多的特征一方面会影响模型训练的速度,另一方面也可能会使得模型过拟合。所以在特征太多的情况下,我们可以利用不同的模型对特征进行筛选,选取出我们想要的前n个特征。

    feature_to_pick=30feature_top_n,feature_importance=get_top_n_features(titanic_train_data_X,titanic_train_data_Y,feature_to_pick)titanic_train_data_X=pd.DataFrame(titanic_train_data_X[feature_top_n])titanic_test_data_X=pd.DataFrame(titanic_test_data_X[feature_top_n])

    Fitting 10 folds for each of 2 candidates, totalling 20 fits [Parallel(n_jobs=25)]: Done 13 out of 20 | elapsed: 13.7s remaining: 7.3s [Parallel(n_jobs=25)]: Done 20 out of 20 | elapsed: 19.2s finished Top N Features Best RF Params:{'n_estimators': 500, 'min_samples_split': 3, 'max_depth': 20} Top N Features Best RF Score:0.822671156004 Top N Features RF Train Score:0.979797979798 Sample 10 Features from RF Classifier 15 Name_length 0 Age 2 Fare 7 Sex_0 9 Title_0 8 Sex_1 27 Family_Size 3 Pclass 31 Ticket_Letter 11 Title_2 Name: feature, dtype: object Fitting 10 folds for each of 2 candidates, totalling 20 fits [Parallel(n_jobs=25)]: Done 13 out of 20 | elapsed: 10.3s remaining: 5.5s [Parallel(n_jobs=25)]: Done 20 out of 20 | elapsed: 14.9s finished Top N Features Best Ada Params:{'n_estimators': 500, 'learning_rate': 0.01} Top N Features Best Ada Score:0.81593714927 Top N Features Ada Train Score:0.820426487093 Sample 10 Feature from Ada Classifier: 9 Title_0 2 Fare 27 Family_Size 7 Sex_0 3 Pclass 28 Family_Size_Category_0 1 Cabin 8 Sex_1 15 Name_length 0 Age Name: feature, dtype: object Fitting 10 folds for each of 2 candidates, totalling 20 fits [Parallel(n_jobs=25)]: Done 13 out of 20 | elapsed: 9.8s remaining: 5.3s [Parallel(n_jobs=25)]: Done 20 out of 20 | elapsed: 14.2s finished Top N Features Best ET Params:{'n_estimators': 500, 'min_samples_split': 4, 'max_depth': 20} Top N Features Best ET Score:0.828282828283 Top N Features ET Train Score:0.971941638608 Sample 10 Features from ET Classifier: 9 Title_0 8 Sex_1 7 Sex_0 15 Name_length 0 Age 2 Fare 1 Cabin 31 Ticket_Letter 11 Title_2 10 Title_1 Name: feature, dtype: object Fitting 10 folds for each of 2 candidates, totalling 20 fits [Parallel(n_jobs=25)]: Done 13 out of 20 | elapsed: 25.9s remaining: 13.9s [Parallel(n_jobs=25)]: Done 20 out of 20 | elapsed: 27.9s finished Top N Features Best GB Params:{'n_estimators': 500, 'learning_rate': 0.1, 'max_depth': 20} Top N Features Best GB Score:0.789001122334 Top N Features GB Train Score:0.996632996633 Sample 10 Feature from GB Classifier: 0 Age 2 Fare 15 Name_length 31 Ticket_Letter 9 Title_0 27 Family_Size 23 Pclass_2 3 Pclass 18 Fare_2 14 Title_5 Name: feature, dtype: object Fitting 10 folds for each of 2 candidates, totalling 20 fits [Parallel(n_jobs=25)]: Done 13 out of 20 | elapsed: 6.3s remaining: 3.3s [Parallel(n_jobs=25)]: Done 20 out of 20 | elapsed: 9.6s finished Top N Features Best DT Params:{'min_samples_split': 4, 'max_depth': 20} Top N Features Best DT Score:0.784511784512 Top N Features DT Train Score:0.959595959596 Sample 10 Features from DT Classifier: 9 Title_0 0 Age 2 Fare 15 Name_length 27 Family_Size 14 Title_5 26 Pclass_5 3 Pclass 31 Ticket_Letter 23 Pclass_2 Name: feature, dtype: object

    用视图可视化不同算法筛选的特征排序:

    rf_feature_imp=feature_importance[:10]Ada_feature_imp=feature_importance[32:32+10].reset_index(drop=True)# make importances relative to max importancerf_feature_importance=100.0*(rf_feature_imp['importance']/rf_feature_imp['importance'].max())Ada_feature_importance=100.0*(Ada_feature_imp['importance']/Ada_feature_imp['importance'].max())# Get the indexes of all features over the importance thresholdrf_important_idx=np.where(rf_feature_importance)[0]Ada_important_idx=np.where(Ada_feature_importance)[0]# Adapted from Gradient Boosting regressionpos=np.arange(rf_important_idx.shape[0])+.5plt.figure(1,figsize=(18,8))plt.subplot(121)plt.barh(pos,rf_feature_importance[rf_important_idx][::-1])plt.yticks(pos,rf_feature_imp['feature'][::-1])plt.xlabel('Relative Importance')plt.title('RandomForest Feature Importance')plt.subplot(122)plt.barh(pos,Ada_feature_importance[Ada_important_idx][::-1])plt.yticks(pos,Ada_feature_imp['feature'][::-1])plt.xlabel('Relative Importance')plt.title('AdaBoost Feature Importance')plt.show()


    (3) 模型融合(Model Ensemble)

    常见的模型融合方法有:Bagging、Boosting、Stacking、Blending。

    (3-1):Bagging

    Bagging 将多个模型,也就是多个基学习器的预测结果进行简单的加权平均或者投票。它的好处是可以并行地训练基学习器。Random Forest就用到了Bagging的思想。

    (3-2): Boosting

    Boosting 的思想有点像知错能改,每个基学习器是在上一个基学习器学习的基础上,对上一个基学习器的错误进行弥补。我们将会用到的 AdaBoost,Gradient Boost 就用到了这种思想。

    (3-3): Stacking

    Stacking是用新的次学习器去学习如何组合上一层的基学习器。如果把 Bagging 看作是多个基分类器的线性组合,那么Stacking就是多个基分类器的非线性组合。Stacking可以将学习器一层一层地堆砌起来,形成一个网状的结构。

    相比来说Stacking的融合框架相对前面的二者来说在精度上确实有一定的提升,所以在下面的模型融合上,我们也使用Stacking方法。

    (3-4): Blending

    Blending 和 Stacking 很相似,但同时它可以防止信息泄露的问题。

    Stacking框架融合:

    这里我们使用了两层的模型融合,Level 1使用了:RandomForest、AdaBoost、ExtraTrees、GBDT、DecisionTree、KNN、SVM ,一共7个模型,Level 2使用了XGBoost使用第一层预测的结果作为特征对最终的结果进行预测。

    Level 1:

    Stacking框架是堆叠使用基础分类器的预测作为对二级模型的训练的输入。 然而,我们不能简单地在全部训练数据上训练基本模型,产生预测,输出用于第二层的训练。如果我们在Train Data上训练,然后在Train Data上预测,就会造成标签。为了避免标签,我们需要对每个基学习器使用K-fold,将K个模型对Valid Set的预测结果拼起来,作为下一层学习器的输入。

    所以这里我们建立输出K-fold预测的方法:

    fromsklearn.model_selectionimportKFold# Some useful parameters which will come in handy later onntrain=titanic_train_data_X.shape[0]ntest=titanic_test_data_X.shape[0]SEED=0# for reproducibilityNFOLDS=7# set folds for out-of-fold predictionkf=KFold(n_splits=NFOLDS,random_state=SEED,shuffle=False)defget_out_fold(clf,x_train,y_train,x_test):oof_train=np.zeros((ntrain,))oof_test=np.zeros((ntest,))oof_test_skf=np.empty((NFOLDS,ntest))fori,(train_index,test_index)inenumerate(kf.split(x_train)):x_tr=x_train[train_index]y_tr=y_train[train_index]x_te=x_train[test_index]clf.fit(x_tr,y_tr)oof_train[test_index]=clf.predict(x_te)oof_test_skf[i,:]=clf.predict(x_test)oof_test[:]=oof_test_skf.mean(axis=0)returnoof_train.reshape(-1,1),oof_test.reshape(-1,1)

    构建不同的基学习器,这里我们使用了RandomForest、AdaBoost、ExtraTrees、GBDT、DecisionTree、KNN、SVM 七个基学习器:(这里的模型可以使用如上面的GridSearch方法对模型的超参数进行搜索选择)

    fromsklearn.neighborsimportKNeighborsClassifierfromsklearn.svmimportSVCrf=RandomForestClassifier(n_estimators=500,warm_start=True,max_features='sqrt',max_depth=6,min_samples_split=3,min_samples_leaf=2,n_jobs=-1,verbose=0)ada=AdaBoostClassifier(n_estimators=500,learning_rate=0.1)et=ExtraTreesClassifier(n_estimators=500,n_jobs=-1,max_depth=8,min_samples_leaf=2,verbose=0)gb=GradientBoostingClassifier(n_estimators=500,learning_rate=0.008,min_samples_split=3,min_samples_leaf=2,max_depth=5,verbose=0)dt=DecisionTreeClassifier(max_depth=8)knn=KNeighborsClassifier(n_neighbors=2)svm=SVC(kernel='linear',C=0.025)

    将pandas转换为arrays:

    # Create Numpy arrays of train, test and target (Survived) dataframes to feed into our modelsx_train=titanic_train_data_X.values# Creates an array of the train datax_test=titanic_test_data_X.values# Creats an array of the test datay_train=titanic_train_data_Y.values

    # Create our OOF train and test predictions. These base results will be used as new featuresrf_oof_train,rf_oof_test=get_out_fold(rf,x_train,y_train,x_test)# Random Forestada_oof_train,ada_oof_test=get_out_fold(ada,x_train,y_train,x_test)# AdaBoostet_oof_train,et_oof_test=get_out_fold(et,x_train,y_train,x_test)# Extra Treesgb_oof_train,gb_oof_test=get_out_fold(gb,x_train,y_train,x_test)# Gradient Boostdt_oof_train,dt_oof_test=get_out_fold(dt,x_train,y_train,x_test)# Decision Treeknn_oof_train,knn_oof_test=get_out_fold(knn,x_train,y_train,x_test)# KNeighborssvm_oof_train,svm_oof_test=get_out_fold(svm,x_train,y_train,x_test)# Support Vectorprint("Training is complete")

    (4) 预测并生成提交文件

    Level 2:

    我们利用XGBoost,使用第一层预测的结果作为特征对最终的结果进行预测。

    x_train=np.concatenate((rf_oof_train,ada_oof_train,et_oof_train,gb_oof_train,dt_oof_train,knn_oof_train,svm_oof_train),axis=1)x_test=np.concatenate((rf_oof_test,ada_oof_test,et_oof_test,gb_oof_test,dt_oof_test,knn_oof_test,svm_oof_test),axis=1)

    fromxgboostimportXGBClassifiergbm=XGBClassifier(n_estimators=2000,max_depth=4,min_child_weight=2,gamma=0.9,subsample=0.8,colsample_bytree=0.8,objective='binary:logistic',nthread=-1,scale_pos_weight=1).fit(x_train,y_train)predictions=gbm.predict(x_test)

    StackingSubmission=pd.DataFrame({'PassengerId':PassengerId,'Survived':predictions})StackingSubmission.to_csv('StackingSubmission.csv',index=False,sep=',')

    7. 验证:学习曲线

    在我们对数据不断地进行特征工程,产生的特征越来越多,用大量的特征对模型进行训练,会使我们的训练集拟合得越来越好,但同时也可能会逐渐丧失泛化能力,从而在测试数据上表现不佳,发生过拟合现象。

    当然我们建立的模型可能不仅在预测集上表型不好,也很可能是因为在训练集上的表现就不佳,处于欠拟合状态。

    下图是在吴恩达老师的机器学习课程上给出的四种学习曲线:


    上面红线代表test error(Cross-validation error),蓝线代表train error。这里我们也可以把错误率替换为准确率,那么相应曲线的走向就应该是上下颠倒的,(score = 1 - error)。

    注意我们的图中是error曲线。

    左上角是最优情况,随着样本的增加,train error虽然有一定的增加吗,但是 test error却有很明显的降低;

    右上角是最差情况,train error很大,模型并没有从特征中学习到什么,导致test error非常大,模型几乎无法预测数据,需要去寻找数据本身和训练阶段的原因;

    左下角是high variance的情况,train error虽然较低,但是模型产生了过拟合,缺乏泛化能力,导致test error很高;

    右下角是high bias的情况,train error很高,这时需要去调整模型的参数,减小train error。

    所以我们通过学习曲线观察模型处于什么样的状态。从而决定对模型进行如何的操作。当然,我们把验证放到最后,并不是是这一步是在最后去做。对于我们的Stacking框架中第一层的各个基学习器我们都应该对其学习曲线进行观察,从而去更好地调节超参数,进而得到更好的最终结果。

    构建绘制学习曲线的函数:

    fromsklearn.learning_curveimportlearning_curvedefplot_learning_curve(estimator,title,X,y,ylim=None,cv=None,n_jobs=1,train_sizes=np.linspace(.1,1.0,5),verbose=0):""" Generate a simple plot of the test and traning learning curve. Parameters ---------- estimator : object type that implements the "fit" and "predict" methods An object of that type which is cloned for each validation. title : string Title for the chart. X : array-like, shape (n_samples, n_features) Training vector, where n_samples is the number of samples and n_features is the number of features. y : array-like, shape (n_samples) or (n_samples, n_features), optional Target relative to X for classification or regression; None for unsupervised learning. ylim : tuple, shape (ymin, ymax), optional Defines minimum and maximum yvalues plotted. cv : integer, cross-validation generator, optional If an integer is passed, it is the number of folds (defaults to 3). Specific cross-validation objects can be passed, see sklearn.cross_validation module for the list of possible objects n_jobs : integer, optional Number of jobs to run in parallel (default 1). """plt.figure()plt.title(title)ifylimisnotNone:plt.ylim(*ylim)plt.xlabel("Training examples")plt.ylabel("Score")train_sizes,train_scores,test_scores=learning_curve(estimator,X,y,cv=cv,n_jobs=n_jobs,train_sizes=train_sizes)train_scores_mean=np.mean(train_scores,axis=1)train_scores_std=np.std(train_scores,axis=1)test_scores_mean=np.mean(test_scores,axis=1)test_scores_std=np.std(test_scores,axis=1)plt.grid()plt.fill_between(train_sizes,train_scores_mean-train_scores_std,train_scores_mean+train_scores_std,alpha=0.1,color="r")plt.fill_between(train_sizes,test_scores_mean-test_scores_std,test_scores_mean+test_scores_std,alpha=0.1,color="g")plt.plot(train_sizes,train_scores_mean,'o-',color="r",label="Training score")plt.plot(train_sizes,test_scores_mean,'o-',color="g",label="Cross-validation score")plt.legend(loc="best")returnplt

    逐一观察不同模型的学习曲线:

    X=x_trainY=y_train# RandomForestrf_parameters={'n_jobs':-1,'n_estimators':500,'warm_start':True,'max_depth':6,'min_samples_leaf':2,'max_features':'sqrt','verbose':0}# AdaBoostada_parameters={'n_estimators':500,'learning_rate':0.1}# ExtraTreeset_parameters={'n_jobs':-1,'n_estimators':500,'max_depth':8,'min_samples_leaf':2,'verbose':0}# GradientBoostinggb_parameters={'n_estimators':500,'max_depth':5,'min_samples_leaf':2,'verbose':0}# DecisionTreedt_parameters={'max_depth':8}# KNeighborsknn_parameters={'n_neighbors':2}# SVMsvm_parameters={'kernel':'linear','C':0.025}# XGBgbm_parameters={'n_estimators':2000,'max_depth':4,'min_child_weight':2,'gamma':0.9,'subsample':0.8,'colsample_bytree':0.8,'objective':'binary:logistic','nthread':-1,'scale_pos_weight':1}

    title="Learning Curves"plot_learning_curve(RandomForestClassifier(**rf_parameters),title,X,Y,cv=None,n_jobs=4,train_sizes=[50,100,150,200,250,350,400,450,500])plt.show()


    由上面的分析我们可以看出,对于RandomForest的模型,这里是存在一定的问题的,所以我们需要去调整模型的超参数,从而达到更好的效果。

    8. 超参数调试

    将生成的提交文件到Kaggle提交,得分结果:

    xgboost stacking:0.78468;

    voting bagging :0.79904;

    这也说明了我们的stacking模型还有很大的改进空间。所以我们可以在以下几个方面进行改进,提高模型预测的精度:

    特征工程:寻找更好的特征、删去影响较大的冗余特征;

    模型超参数调试:改进欠拟合或者过拟合的状态;

    改进模型框架:对于stacking框架的各层模型进行更好的选择;

    调参的过程.............................................慢慢尝试吧。

    参考引用:

    分分钟带你杀入Kaggle Top 1%(http://t.cn/RoXGHto)

    机器学习实战之Kaggle_Titanic预测(http://t.cn/RYd3Xlu)

    泰坦尼克号乘客数据分析(http://t.cn/RYd3HCK)

    Kaggle泰坦尼克号生存模型——250个特征量的融合模型,排名8%(http://t.cn/RYd31l9)

    Introduction to Ensembling/Stacking in Python(http://t.cn/ROI2HyK)

    A Journey through Titanic(http://t.cn/RYd1mij)

    (完)

    Kaggle Titanic 生存预测比赛超完整笔记(中)返回搜狐,查看更多

    责任编辑:

    展开全文
  • Titanic生存预测1

    2018-02-06 02:09:31
    前段时间玩了一下Kaggle平台上的Titanic生存预测竞赛,这是一个非常适合入门机器学习的项目。 这场竞赛的内容是,通过一部分乘客的数据及其存活率,来预测另一部分乘客的存活率,目标是预测的准确率尽可能高。 我...
  • Titanic生存预测-数据分析 数据分析学习之路 1.当我们拿到一个数据,首先要对数据进行观察,可以用Excel等工具,这里我 使用的是jupyter notebook 首先对数据进行观察,并进行简单的预处理 我们发现表中Age有177个...
  • 本文将以Titanic生存预测问题为范例,介绍对结构化数据进行预处理并喂入Keras模型的方法。Titanic数据集的目标是根据乘客信息预测他们在Titanic号撞击冰山沉没后能否生存。没错,就是那个Jack and Rose的Titanic,...
  • Titanic 生存预测详细笔记

    千次阅读 2017-12-29 15:43:15
    ...Titanic生存模型预测,其中包含了两组数据:train.csv 和 test.csv,分别为训练集合和测试集合。 import re import numpy as np import pandas as pd import matplotlib.pyplot as plt im
  • 本次竞赛的目的是根据Titanic的人员信息来预测最终的生存情况。采用Python3来完成本次竞赛。 一、数据总览 从Kaggle平台我们了解到,Training set一共有891条记录,Test set一共有418条记录。提供的相关变量有: ...
  • Python机器学习/数据挖掘项目实战 泰坦尼克号Titanic生存预测 Kaggle入门比赛Titanic : Machine Learning from Disaster 随机森林分类器
  • 转载自...Kaggle_Titanic生存预测 -- 详细流程吐血梳理 原创 2017年12月06日 10:55:55 标签:Kaggle /泰坦尼克 /数据分析 /机器学习 /xgboost / 989 编辑删除 作者: 大树先生  博客:
  • Kaggle_Titanic生存预测

    2019-10-27 16:34:30
    https://www.kaggle.com/c/titanic/data 数据中相关数据标签含义如下: 从这里,我们大致了解了关于这份数据的存在形式,于是我们便可以进行python的使用与分析了,在此之前,导入基本我们需要使用的第三方库与...

空空如也

空空如也

1 2 3 4 5 ... 20
收藏数 1,631
精华内容 652
关键字:

titanic生存预测
