Ureport2 安装,配置及问题详解
本文详细介绍了笔者Ureport2的 安装,配置以及在此过程中遇到的问题和解决方法。
本安装 基于 IDEA+SpringBoot, 存储使用mysql数据库
1 pre-condition
1)首先需要安装IDEA, jdk8, maven
2) 安装mysql 用于测试
可以参考cboard安装
2 安装ureport
先学习如何用IDEA创建SpringBoot 项目:
https://blog.csdn.net/qq_35206244/article/details/81671387
2)
基于SpringBoot 安装 ureport2: https://www.cnblogs.com/Seven-cjy/p/9542616.html
基于maven安装ureport2:
http://wiki.bsdn.org/pages/viewpage.action?pageId=76448360
3 maven 配置文件
3.1 pom.xml
org.springframework.bootspring-boot-starter-weborg.springframework.bootspring-boot-starter-testtestcom.bstek.ureportureport2-console2.2.9commons-dbcpcommons-dbcp20030825.184428mysqlmysql-connector-java8.0.17
3.2 application.properties
src/main/resources/application.properties
ureport.fileStoreDir=E:/web/ureportfilesspring.datasource.url=jdbc:mysql://localhost:3306/bookstore?serverTimezone=UTCspring.datasource.username=rootspring.datasource.password=123spring.datasource.driverClassName=com.mysql.jdbc.Driver
3.3 content.xml
src/main/resources/content.xml
xml version="1.0"encoding="UTF-8"?>
xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">
resource="classpath:ureport-console-context.xml"/>id="propertyConfigurer"parent="ureport.props">
name="location">classpath:application.properties
4 运行
4.1 IDEA 开发环境运行

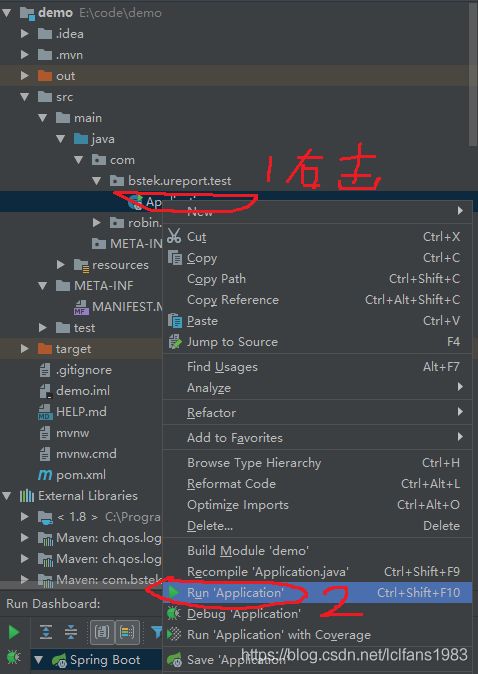

右键单击main class 文件 -> Run ‘xxxxx’

4.2编译成Jar包运行

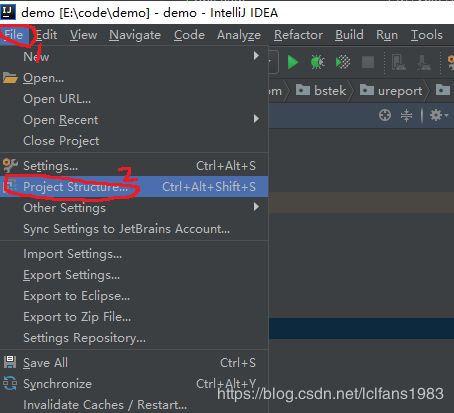

4.2.1 打开Project Structure…

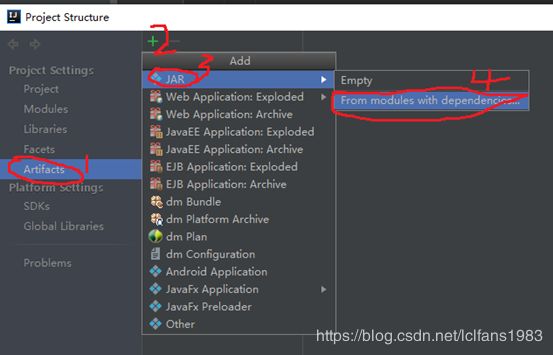

4.2.2 add Artifacts

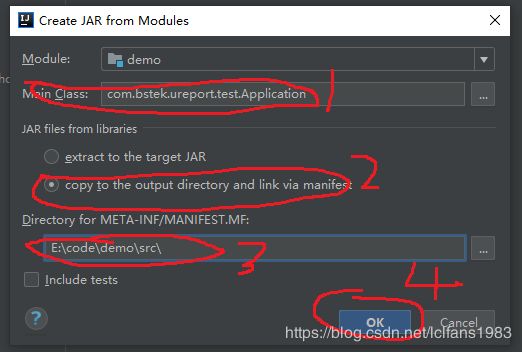

4.2.3 设置jar属性
切记step 3,要删除默认的‘main\java’, 仅保留到src 目录

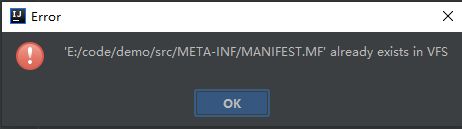

点击‘OK’后,如果报如下错误,只需要删除文件MANIFEST.MF即可。

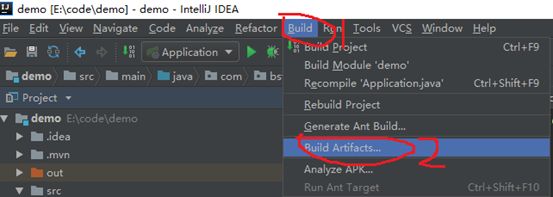

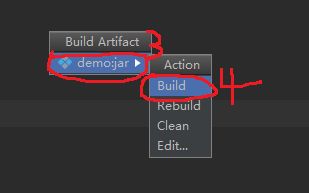

4.2.4 build


4.2.5 run jar 包
编译好的jar包在工程目录的 .\out\artifacts 目录下
例如demo\out\artifacts\demo_jar
Run > java -jar demo.jar
5 使用配置
浏览器输入: http://localhost:8080/ureport/designer

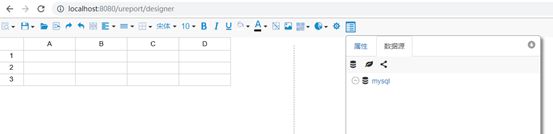

5.1 进入ureport页面

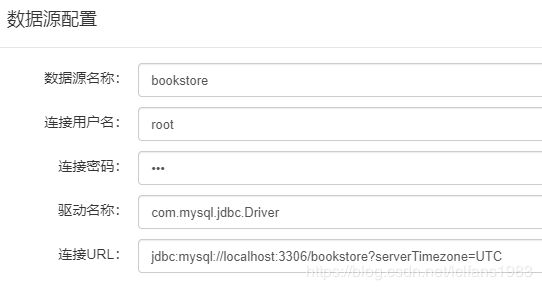

5.2 mysql数据源配置

具体使用可以参考教程:
http://wiki.bsdn.org/pages/viewpage.action?pageId=76448360
ureport2 常用的url 说明:
https://blog.csdn.net/qq_37686250/article/details/90698932
6 Trouble shooting
6.1 dependency library没有出现在External Libraries列

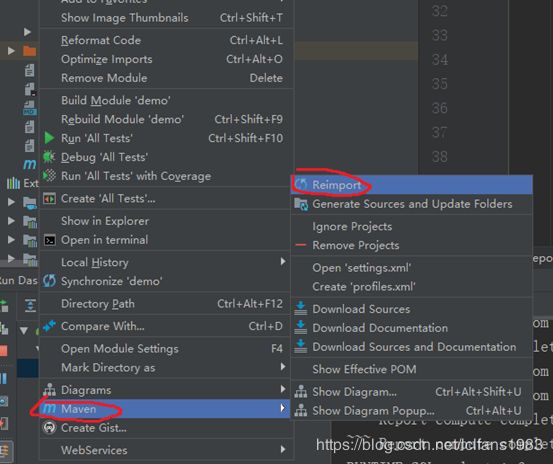

如果dependency library没有出现在External Libraries 中时,可以重现import

6.2 连接mysql数据库出现错误
连接mysql数据库出现如下错误:
使用JDBC连接MySql时出现:The server time zone value '�й���ʱ��' is unrecognized or represents more than one time zone. You must configure either the server or JDBC driver (via the serverTimezone configuration
可以在连接字符串后面加上?serverTimezone=UTC
完整的连接字符串示例:jdbc:mysql://localhost:3306/test?serverTimezone=UTC
或者还有另一种选择:jdbc:mysql://127.0.0.1:3306/test?useUnicode=true&characterEncoding=UTF-8,
当然也可以和上面的一起结合:jdbc:mysql://127.0.0.1:3306/test?useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC
