2019-05-18 16:05:32
一 概念
外置tomcat:独立安装在电脑上的Tomcat服务器
springboot内置服务器:springboot自己集成tomcat,不用使用外置的tomcat即可运行网站项目二 原理
三 使用
1)修改项目的打包方式
<packaging>war</packaging>
2)在pom.xml中移除内置的tomcat
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> <version>${spring-boot.version}</version> <!-- 移除嵌入式tomcat插件 --> <exclusions> <exclusion> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-tomcat</artifactId> </exclusion> </exclusions> </dependency>
3)由于移除了内置tomcat,所以需要添加Servlet相关的api
<!--tomcat jsp依赖--> <dependency> <groupId>javax.servlet</groupId> <artifactId>javax.servlet-api</artifactId> <version>3.1.0</version> <scope>provided</scope> </dependency>
4)在springboot启动类同级目录下创建一个继承SpringBootServletInitializer接口的类
package com.myworld; import org.springframework.boot.builder.SpringApplicationBuilder; import org.springframework.boot.web.servlet.support.SpringBootServletInitializer; import org.springframework.stereotype.Component; @Component public class ServletInitializer extends SpringBootServletInitializer { @Override protected SpringApplicationBuilder configure(SpringApplicationBuilder application) { // 注意这里要指向原先用main方法执行的Application启动类 return application.sources(WebAppSpringbootApplication.class); } }
经过以上操作即可正常部署自己的项目到外置tomcat中去
更多相关内容 -
【SpringBoot】三、分别在内置服务器和外置服务器开发JSP页面
2020-09-01 16:20:52目录 一、使用内置服务器 1. File->New->Project... 2. Spring Initializr->next 3. war包 4. 勾选web ...二、外置服务器 1. 同上1~4创建web应用 2. 配置pom.xml,不用上面那些依赖了目录
10. 访问路径localhost:8080/index即可
一、使用内置服务器
请注意SpringBoot 2.x的内置tomcat版本为9.x
1. File->New->Project...
2. Spring Initializr->next
没有Spring Initializr的插件找Spring Boot安装重启下就有了
3. war包
4. 勾选web
5. 编写pom.xml文件
<!--内置tomcat对Jsp支持的依赖,用于编译Jsp--> <dependency> <groupId>org.apache.tomcat.embed</groupId> <artifactId>tomcat-embed-jasper</artifactId> <scope>provided</scope> </dependency> <!-- 开启servlet支持 --> <dependency> <groupId>javax.servlet</groupId> <artifactId>javax.servlet-api</artifactId> </dependency>
注:tomcat-embed-jasper的scope(作用域)值为provided,表示打包的时候不用打包进去,其他设备会提供,如果打包进去会和外部Tomcat提供的jar冲突,导致项目启动失败。
带有.jsp后缀的请求会被servlet容器分发给JspServlet处理,而JspServlet在第一次被调用时使用jsp引擎解析jsp文件,并生成servlet,并注册,随后调用。如果没有配置tomcat-embed-jasper,则JspServlet没有被注册到Servlet容器中,所以请求分发到DispatcherServlet来处理,就访问不到页面了。
使用外置tomcat时,不需要配置上边的依赖,因为这个在tomcat安装目录的lib里引入了,并且conf/web.xml全局注册了。而使用内置tomcat时,需要手动导入,只有导入了,内置tomcat才帮你自动注册JspServet:
TomcatServletWebServerFactory#prepareContext
protected void prepareContext(Host host, ServletContextInitializer[] initializers) { File documentRoot = this.getValidDocumentRoot(); TomcatEmbeddedContext context = new TomcatEmbeddedContext(); if (documentRoot != null) { context.setResources(new TomcatServletWebServerFactory.LoaderHidingResourceRoot(context)); } context.setName(this.getContextPath()); context.setDisplayName(this.getDisplayName()); context.setPath(this.getContextPath()); File docBase = documentRoot != null ? documentRoot : this.createTempDir("tomcat-docbase"); context.setDocBase(docBase.getAbsolutePath()); context.addLifecycleListener(new FixContextListener()); context.setParentClassLoader(this.resourceLoader != null ? this.resourceLoader.getClassLoader() : ClassUtils.getDefaultClassLoader()); this.resetDefaultLocaleMapping(context); this.addLocaleMappings(context); try { context.setCreateUploadTargets(true); } catch (NoSuchMethodError var8) { } this.configureTldSkipPatterns(context); WebappLoader loader = new WebappLoader(); loader.setLoaderClass(TomcatEmbeddedWebappClassLoader.class.getName()); loader.setDelegate(true); context.setLoader(loader); if (this.isRegisterDefaultServlet()) { this.addDefaultServlet(context); } // 是否需要注册JspServlet if (this.shouldRegisterJspServlet()) { this.addJspServlet(context); this.addJasperInitializer(context); } context.addLifecycleListener(new TomcatServletWebServerFactory.StaticResourceConfigurer(context)); ServletContextInitializer[] initializersToUse = this.mergeInitializers(initializers); host.addChild(context); this.configureContext(context, initializersToUse); this.postProcessContext(context); }
6. 创建jsp文件
7. 配置application.properties
spring.mvc.view.prefix=/WEB-INF/pages/ spring.mvc.view.suffix=.jsp
8. 写个控制器
/** * 测试 * * @author ZRH * @version 1.0.0 * @date 2020/8/31 */ @RestController @RequestMapping public class MyController { @GetMapping("/index") public ModelAndView goIndex(ModelAndView modelAndView) { modelAndView.setViewName("index"); return modelAndView; } }
9. 运行入口类
10. 访问路径localhost:8080/index即可
二、外置服务器
1. 同上1~4创建web应用
2. 配置pom.xml,不用上面那些依赖了
<dependencies> <!--web支持--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> <exclusions> <exclusion> <groupId>org.junit.vintage</groupId> <artifactId>junit-vintage-engine</artifactId> </exclusion> </exclusions> </dependency> </dependencies>
3. 配置外部的tomcat
4. 起飞
-
hbuilder外置服务器设置(局域网移动端调试)

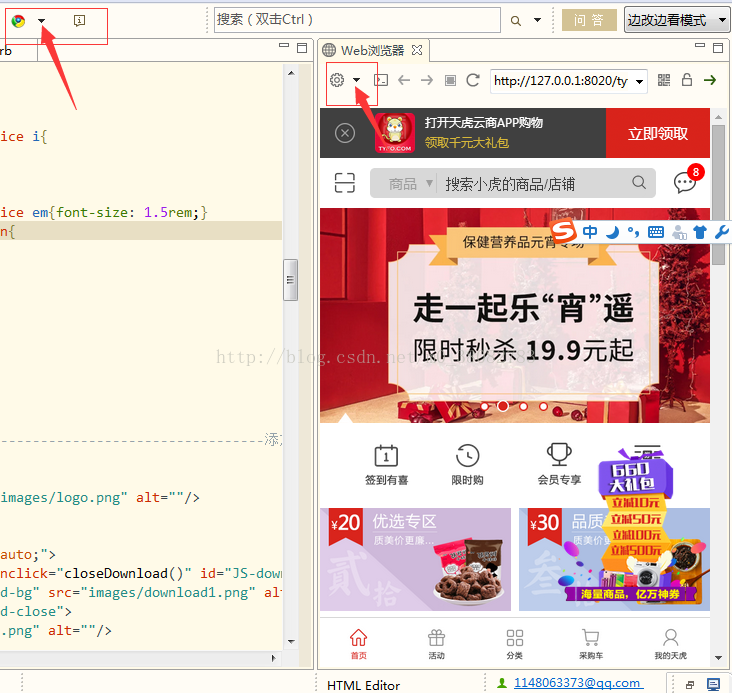

2017-07-03 15:54:481、选择浏览器的最后一个... 外置web服务器 ----> 新建 3、外置web服务器名称 ----> 浏览器运行路径 ----> 确定 注意:浏览器运行路径必须和IP4的IP相同,端口好hbuilder默认的为8020 ...1、选择浏览器的最后一个选项(设置web服务器)或者边改边看模式 ----> 设置按钮 ----> 设置web服务器

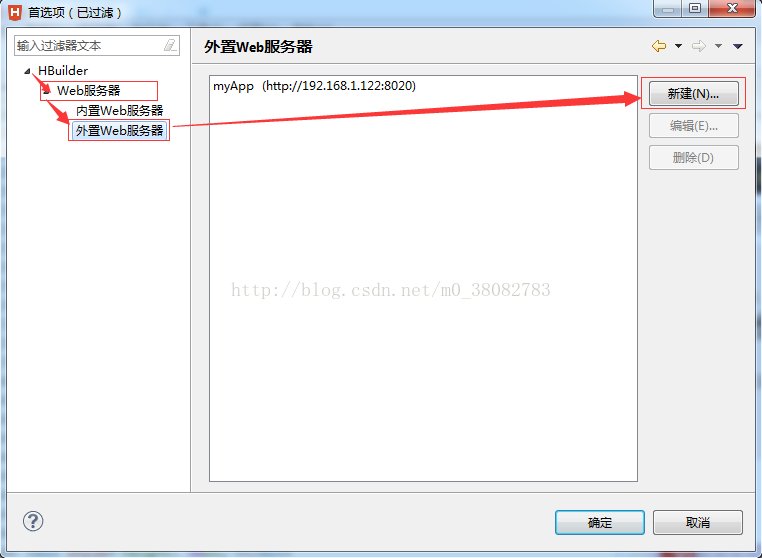

2、web服务器 ----> 外置web服务器 ----> 新建

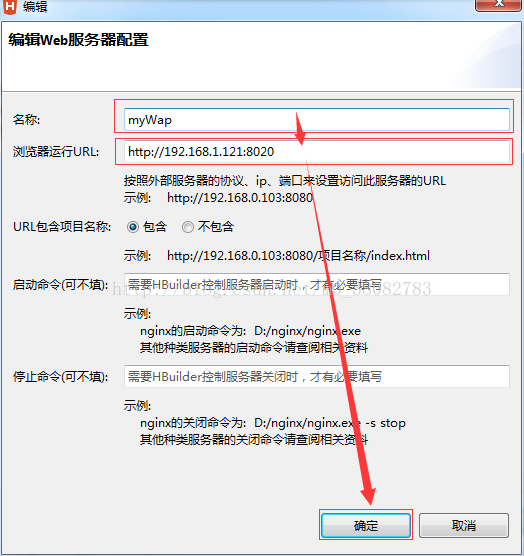

3、外置web服务器名称 ----> 浏览器运行路径 ----> 确定

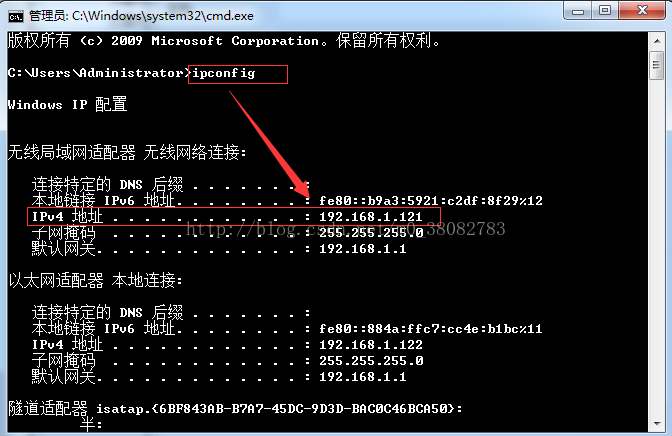

注意:浏览器运行路径必须和IP4的IP相同,端口好hbuilder默认的为8020

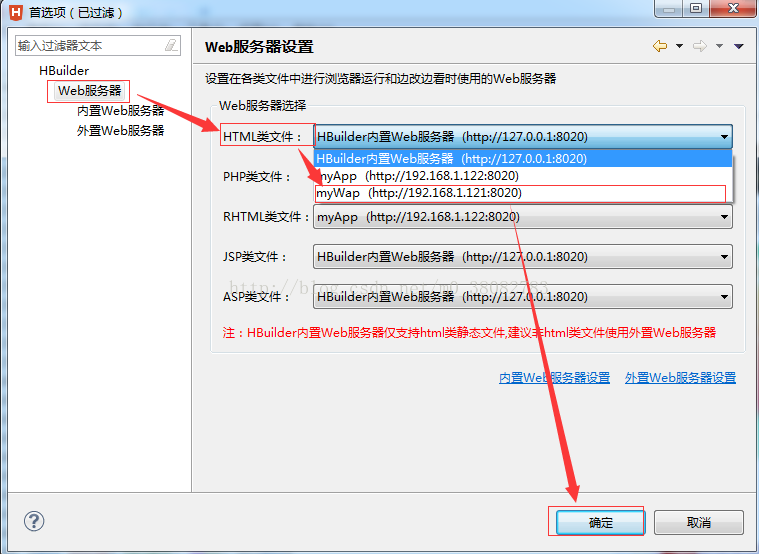

4、运行:web服务器 ----> HTML类文件 ----> 选择你刚刚新建的外置服务器地址 ----> 确定

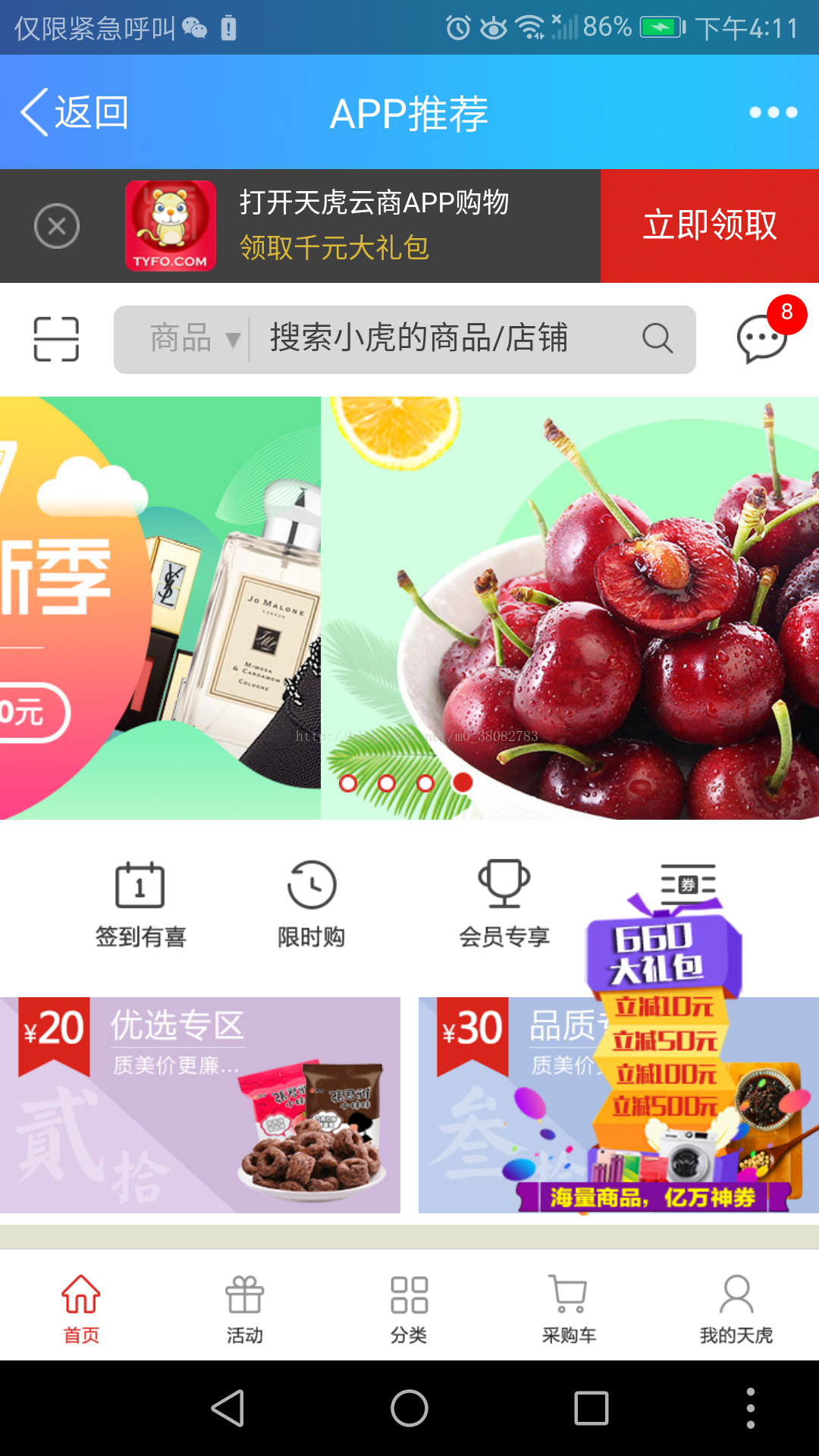

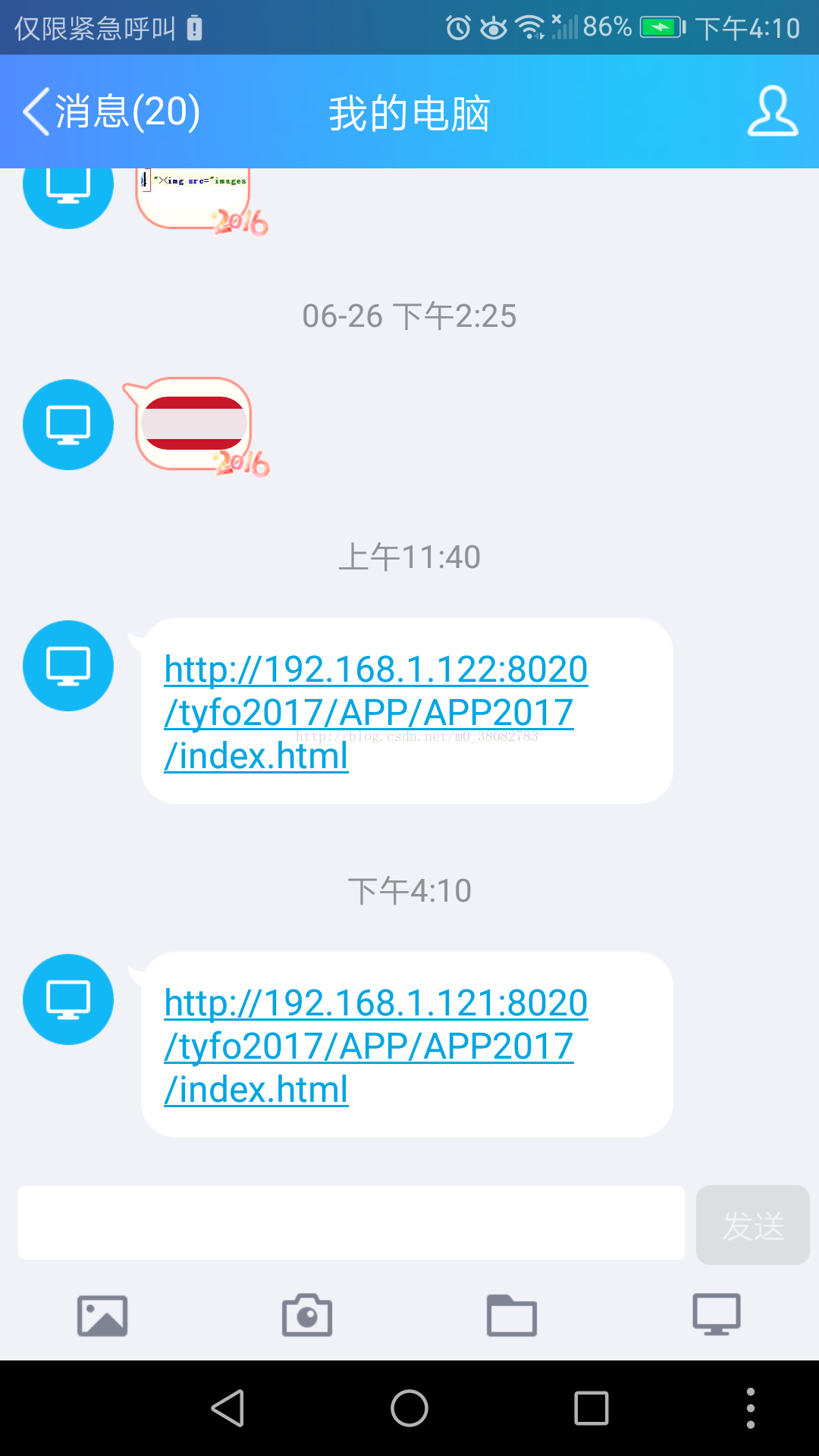

5、运行结果
注意:第三步设置的浏览器URL必须外置设备在一个局域网内。
