    WPF 虚拟键盘

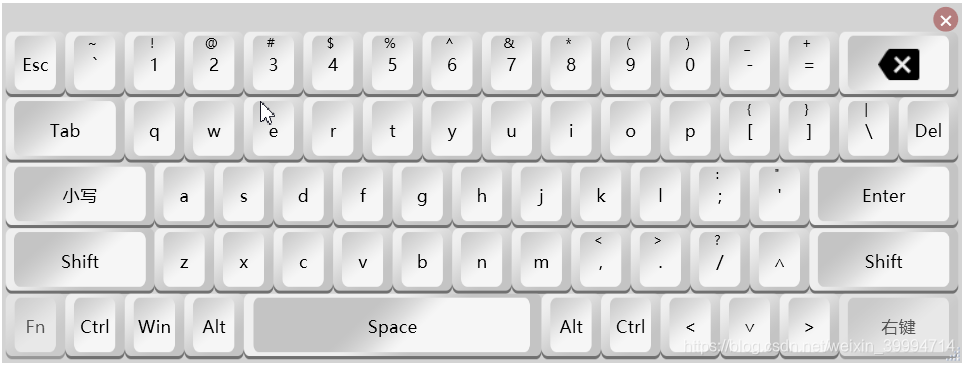

    效果:

    键盘,放大缩小,键位大小及字体自适应大小

    源码下载

    背景

            Windows 提供了一个模拟键盘 API 函数 Keybd_event(),使用该函数可以相应的屏蔽键盘的动作。Keybd_event()函数能触发一个按键事件,也就是说会产生一个 WM_KEYDOWN 或 WM_KEYUP 消息。

    public static partial class KeyHelper
        {
            [DllImport("user32.dll", EntryPoint = "keybd_event")]
            public static extern void keybd_event(
            byte bVk, //虚拟键值
            byte bScan,// 一般为0
            int dwFlags, //这里是整数类型 0 为按下,2为释放
            int dwExtraInfo //这里是整数类型 一般情况下设成为0
            );

            [DllImport("user32.dll")]
            public static extern int GetFocus();
        }


        /// <summary> 模拟键盘按键 </summary>
        public static partial class KeyHelper
        {
            #region 模拟按键
            public static void Play()
            {
                keybd_event(179, 0, 0, 0);
                keybd_event(179, 0, 2, 0);
            }

            public static void Stop()
            {
                keybd_event(178, 0, 0, 0);
                keybd_event(178, 0, 2, 0);
            }

            public static void Last()
            {
                keybd_event(177, 0, 0, 0);
                keybd_event(177, 0, 2, 0);
            }

            public static void Next()
            {
                keybd_event(176, 0, 0, 0);
                keybd_event(176, 0, 2, 0);
            }
            #endregion

            /// <summary> 模拟按下指定建 Keys.ControlKey </summary>
            public static void OnKeyPress(byte keyCode)
            {
                keybd_event(keyCode, 0, 0, 0);
                keybd_event(keyCode, 0, 2, 0);
            }

            public static void OnKeyDown(byte keyCode)
            {
                keybd_event(keyCode, 0, 0, 0);
            }

            public static void OnKeyUp(byte keyCode)
            {
                keybd_event(keyCode, 0, 2, 0);
            }

            static Dictionary<string, string> _dic = new Dictionary<string, string>();

            public static Dictionary<string, string> CodeToByte
            {
                get
                {
                    if(_dic.Count==0)
                    {
                        ConvertASCII();
                    }

                    return _dic;
                }
            }

            static void ConvertASCII()
            {
                string configer = @"0010 0000	32	20	(空格)(␠)
    0010 0001	33	21	!
    0010 0010	34	22	双引号
    00100011   35  23	#
    00100100   36  24  $
    00100101   37  25 %
    00100110   38  26 &
    00100111   39  27  '
    00101000   40  28 (
    00101001   41  29 )
    00101010   42  2A *
    00101011   43  2B +
    00101100   44  2C  ,
    00101101   45  2D -
    00101110   46  2E .
    00101111   47  2F /
    00110000   48  30  0
    00110001   49  31  1
    00110010   50  32  2
    00110011   51  33  3
    00110100   52  34  4
    00110101   53  35  5
    00110110   54  36  6
    00110111   55  37  7
    00111000   56  38  8
    00111001   57  39  9
    00111010   58  3A :
    00111011   59  3B ;
    00111100   60  3C <
    00111101   61  3D =
    00111110   62  3E >
    00111111   63  3F ?
    01000000   64  40  @
    01000001   65  41  A
    01000010   66  42  B
    01000011   67  43  C
    01000100   68  44  D
    01000101   69  45  E
    01000110   70  46  F
    01000111   71  47  G
    01001000   72  48  H
    01001001   73  49  I
    01001010   74  4A J
    01001011   75  4B K
    01001100   76  4C L
    01001101   77  4D  M
    01001110   78  4E  N
    01001111   79  4F  O
    01010000   80  50  P
    01010001   81  51  Q
    01010010   82  52  R
    01010011   83  53  S
    01010100   84  54  T
    01010101   85  55  U
    01010110   86  56  V
    01010111   87  57  W
    01011000   88  58  X
    01011001   89  59  Y
    01011010   90  5A Z
    01011011   91  5B [
    01011100   92  5C	\
    01011101   93  5D ]
    01011110   94  5E ^
    01011111   95  5F  _
    01100000   96  60  `
    01100001   97  61  a
    01100010   98  62  b
    01100011   99  63  c
    01100100   100 64  d
    01100101   101 65  e
    01100110   102 66  f
    01100111   103 67  g
    01101000   104 68  h
    01101001   105 69  i
    01101010   106 6A j
    01101011   107 6B k
    01101100   108 6C l
    01101101   109 6D  m
    01101110   110 6E  n
    01101111   111 6F  o
    01110000   112 70  p
    01110001   113 71  q
    01110010   114 72  r
    01110011   115 73  s
    01110100   116 74  t
    01110101   117 75  u
    01110110   118 76  v
    01110111   119 77  w
    01111000   120 78  x
    01111001   121 79  y
    01111010   122 7A z
    01111011   123 7B  {
    01111100   124 7C |
    01111101   125 7D  }
    01111110   126 7E  ~";


                var collection = configer.Split('\r');

                foreach (var item in collection)
                {
                    var current = item.Split(' ', '\t').ToList();

                    current.RemoveAll(l => string.IsNullOrEmpty(l));

                    var result = current.ToList().Aggregate((l, k) => l + "-" + k);


                    if (current.Count != 4)
                    {
                        Debug.WriteLine("ERR:" + result);
                    }
                    else
                    {
                        _dic.Add(current[3], current[1]);

                        Debug.WriteLine(result);
                    }
                }

            }

    KeyBoardControl :

    /// <summary>
        /// InputNumControl.xaml 的交互逻辑
        /// </summary>
        public partial class KeyBoardControl : UserControl
        {
            public KeyBoardControl()
            {
                InitializeComponent();
                this.btn_caps.IsChecked = Console.CapsLock;
                this.RefreshCaps();
            }

            void RefreshCapsText()
            {
                if (this.btn_caps.IsChecked)
                {
                    this.btn_caps.Content = "大写";
                }
                else
                {
                    this.btn_caps.Content = "小写";
                }
            }

            private void Grid_Click(object sender, RoutedEventArgs e)
            {
                FuncButtonControl button = e.OriginalSource as FuncButtonControl;
                if (button == null) return;

                Debug.WriteLine(button.Content);
                //if (button.Equals(this.btn_win))
                //    return;

                string content = button.Content.ToString();

                if (content == "确定")
                {
                    this.OnSumitClick();
                }
                else if (content == "取消")
                {
                    this.OnCancelClick();
                }
                else
                {
                     Do :打开大写
                    if (this.btn_shift.IsChecked)
                    {
                        KeyHelper.OnKeyDown(Convert.ToByte(this.btn_shift.Tag.ToString()));
                    }

                    if (this.btn_shift.IsChecked)
                    {
                        KeyHelper.OnKeyDown(Convert.ToByte(this.btn_shift.Tag.ToString()));
                    }
                    if (this.btn_win.IsChecked)
                    {
                        KeyHelper.OnKeyDown(Convert.ToByte(this.btn_win.Tag.ToString()));
                    }
                    string tag = button.Tag.ToString();
                    byte b = Convert.ToByte(tag);
                    KeyHelper.OnKeyPress(b);
                }
                e.Handled = false;
            }

            //声明和注册路由事件
            public static readonly RoutedEvent SumitClickRoutedEvent =
                EventManager.RegisterRoutedEvent("SumitClick", RoutingStrategy.Bubble, typeof(EventHandler<RoutedEventArgs>), typeof(KeyBoardControl));
            //CLR事件包装
            public event RoutedEventHandler SumitClick
            {
                add { this.AddHandler(SumitClickRoutedEvent, value); }
                remove { this.RemoveHandler(SumitClickRoutedEvent, value); }
            }

            //激发路由事件,借用Click事件的激发方法

            protected void OnSumitClick()
            {
                RoutedEventArgs args = new RoutedEventArgs(SumitClickRoutedEvent, this);
                this.RaiseEvent(args);
            }

            //声明和注册路由事件
            public static readonly RoutedEvent CancelClickRoutedEvent =
                EventManager.RegisterRoutedEvent("CancelClick", RoutingStrategy.Bubble, typeof(EventHandler<RoutedEventArgs>), typeof(KeyBoardControl));
            //CLR事件包装
            public event RoutedEventHandler CancelClick
            {
                add { this.AddHandler(CancelClickRoutedEvent, value); }
                remove { this.RemoveHandler(CancelClickRoutedEvent, value); }
            }

            //激发路由事件,借用Click事件的激发方法

            protected void OnCancelClick()
            {
                RoutedEventArgs args = new RoutedEventArgs(CancelClickRoutedEvent, this);
                this.RaiseEvent(args);
            }



            public string InputText
            {
                get { return (string)GetValue(InputTextProperty); }
                set { SetValue(InputTextProperty, value); }
            }

            // Using a DependencyProperty as the backing store for MyProperty.  This enables animation, styling, binding, etc...
            public static readonly DependencyProperty InputTextProperty =
                DependencyProperty.Register("InputText", typeof(string), typeof(KeyBoardControl), new PropertyMetadata(default(string), (d, e) =>
                 {
                     KeyBoardControl control = d as KeyBoardControl;

                     if (control == null) return;

                     string config = e.NewValue as string;

                     control.txt_input.Text = config;

                 }));

            private void Btn_Click(object sender, RoutedEventArgs e)
            {
                FuncButtonControl btn = sender as FuncButtonControl;
                string tag = btn.Tag.ToString();
                byte b = Convert.ToByte(tag);
                if (btn.IsChecked)
                {
                    KeyHelper.OnKeyUp(b);
                }
                else
                {
                    KeyHelper.OnKeyDown(b);
                }

                btn.IsChecked = !btn.IsChecked;

            }

            void RefreshCaps()
            {


                var btns = FindVisualChild<FuncButtonControl>(this.grid_center);

                foreach (var btn in btns)
                {
                    if (btn.Content == null) continue;

                    if (btn.Content.ToString().Length != 1) continue;

                    btn.Content = this.btn_caps.IsChecked ? btn.Content.ToString().ToUpper() : btn.Content.ToString().ToLower();

                }

                this.RefreshCapsText();

            }

            List<T> FindVisualChild<T>(DependencyObject obj) where T : DependencyObject
            {
                List<T> collecion = new List<T>();

                for (int i = 0; i < VisualTreeHelper.GetChildrenCount(obj); i++)
                {
                    DependencyObject child = VisualTreeHelper.GetChild(obj, i);

                    if (child != null && child is T)
                        collecion.Add((T)child);
                    else
                    {
                        collecion.AddRange(FindVisualChild<T>(child));
                    }
                }

                return collecion;
            }

            private void btn_caps_Click(object sender, RoutedEventArgs e)
            {
                FuncButtonControl btn = sender as FuncButtonControl;

                string tag = btn.Tag.ToString();

                byte b = Convert.ToByte(tag);

                KeyHelper.OnKeyDown(b);

                btn.IsChecked = !btn.IsChecked;

                this.RefreshCaps();
            }

            private void TextBlock_MouseDown(object sender, MouseButtonEventArgs e)
            {
                this.OnCancelClick();
            }


        }
        <Border Focusable="False" Grid.Row="1" Background="LightGray" Opacity="1" CornerRadius="0">
            <Grid Focusable="False">
                <Grid.RowDefinitions>
                    <RowDefinition Height="20"/>
                    <RowDefinition/>
                </Grid.RowDefinitions>
                <DockPanel LastChildFill="False" Focusable="False">
                    <!--<TextBlock DockPanel.Dock="Left" Text="SK.Lai虚拟键盘"  Margin="20 0 0 0" VerticalAlignment="Center" Focusable="False"/>-->
                    <Grid DockPanel.Dock="Right" Height="20" Width="20" Margin="0 0 0 0" Focusable="False">
                        <Ellipse Focusable="False" Fill="#FFB47E7E"/>
                        <TextBlock Focusable="False" Text="×" HorizontalAlignment="Center" VerticalAlignment="Center" MouseDown="TextBlock_MouseDown" Foreground="White"  FontSize="18" />
                    </Grid>
                </DockPanel>
                <Grid Focusable="False" Grid.Row="1" x:Name="grid_center" ButtonBase.Click="Grid_Click" Margin="0">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="0"/>
                        <RowDefinition/>
                        <RowDefinition/>
                        <RowDefinition/>
                        <RowDefinition/>
                        <RowDefinition/>
                    </Grid.RowDefinitions>
                    <Grid Visibility="Collapsed">
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="5*"/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                        </Grid.ColumnDefinitions>
                        <TextBox HorizontalContentAlignment="Center" x:Name="txt_input" Foreground="Black"
                                 BorderBrush="#1fd800" BorderThickness="1.5" Height="80" FontWeight="Bold" FontSize="30"
                                 CaretBrush="Black" VerticalAlignment="Center" VerticalContentAlignment="Center" HorizontalAlignment="Left"
                                 Text="{Binding ElementName=control,Path=InputText}"
                                 Width="800" />
                        <local:FuncButtonControl Grid.Row="0" Grid.Column="2" Grid.ColumnSpan="1" Width="200"  Content="确定">
                            <Button.Background>
                                <ImageBrush ImageSource="Image/确认按钮.png" />
                            </Button.Background>
                        </local:FuncButtonControl>
                        <local:FuncButtonControl Grid.Row="0" Grid.Column="1" Grid.ColumnSpan="1" Width="200"  Content="取消"/>
                    </Grid>
                    <Grid Grid.Row="1">
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition Width="2*"/>
                        </Grid.ColumnDefinitions>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="0"   Content="Esc" Tag="23"/>
                        <local:FuncButtonControl IsEnabled="True" Grid.Row="1" Grid.Column="1" Content="`"  Tag="192" ShiftValue="~"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="2"   Content="1" Tag="49" ShiftValue="!"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="3"   Content="2" Tag="50"  ShiftValue="@"/>
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="4"   Content="3" Tag="51"  ShiftValue="#"/>
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="5"   Content="4"  Tag="52"  ShiftValue="$"/>
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="6"   Content="5" Tag="53"  ShiftValue="%"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="7"   Content="6"  Tag="54"  ShiftValue="^"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="8"   Content="7" Tag="55"  ShiftValue="&amp;"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="9"   Content="8" Tag="56"  ShiftValue="*"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="10"   Content="9"  Tag="57"   ShiftValue="("/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="11"   Content="0" Tag="48"  ShiftValue=")"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="12"   Content="-" Tag="189"  ShiftValue="_"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="13" Content="=" Tag="61"  ShiftValue="+"/>
                        <local:FuncButtonControl Style="{StaticResource Resource.Style.FuncButton.Lenght.2}" Grid.Row="1" Grid.Column="14"  Content="      " Tag="8"/>
                        <local:FuncButtonControl Style="{StaticResource Resource.Style.FuncButton.Lenght.2}" Grid.Row="1" Grid.Column="14" Content="      "  Tag="8" IsHitTestVisible="False">
                            <Button.Background>
                                <ImageBrush ImageSource="Image/Backspace.png" Stretch="None" />
                            </Button.Background>
                        </local:FuncButtonControl>
                    </Grid>
                    <Grid Grid.Row="2">
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="2*"/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                        </Grid.ColumnDefinitions>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="0" Style="{StaticResource Resource.Style.FuncButton.Lenght.2}" Content="Tab" Tag="9"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="1" Content="q"  Tag="81"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="2"   Content="w" Tag="87"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="3"   Content="e" Tag="69" />
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="4"   Content="r" Tag="82"/>
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="5"   Content="t"  Tag="84"/>
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="6"   Content="y" Tag="89"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="7"   Content="u"  Tag="85"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="8"   Content="i" Tag="73" />
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="9"   Content="o" Tag="79"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="10"   Content="p" Tag="80"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="11" Content="[" Tag="219"  ShiftValue=" {"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="12"   Content="]" Tag="221"  ShiftValue="}"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="13"   Content="\" Tag="226"  ShiftValue="|"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="14"   Content="Del" Tag="46"/>
                    </Grid>
                    <Grid Grid.Row="3">
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="2.5*"/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition Width="2.5*"/>
                        </Grid.ColumnDefinitions>
                        <local:FuncButtonControl x:Name="btn_caps" Click="btn_caps_Click" Style="{StaticResource Resource.Style.FuncButton.Lenght.2.5}"
                                             IsCheckedControl="True"
                                             Grid.Column="0"
                                             Content="Caps" Tag="20" />
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="1" Content="a"  Tag="65"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="2"   Content="s" Tag="83" />
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="3"   Content="d" Tag="68"/>
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="4"   Content="f" Tag="70" />
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="5"   Content="g"  Tag="71"/>
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="6"   Content="h" Tag="72"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="7"   Content="j"  Tag="74"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="8"   Content="k" Tag="75"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="9"   Content="l" Tag="76"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="10"   Content=";" Tag="59"  ShiftValue=":"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="11" Content="&apos;" Tag="8"  ShiftValue="&quot;"/>
                        <local:FuncButtonControl Style="{StaticResource Resource.Style.FuncButton.Lenght.2.5}" Grid.Row="1" Grid.Column="14"  Content="Enter" Tag="13"/>
                    </Grid>
                    <Grid Grid.Row="4">
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="2.5*"/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition Width="2.5*"/>
                        </Grid.ColumnDefinitions>
                        <local:FuncButtonControl Style="{StaticResource Resource.Style.FuncButton.Lenght.2.5}"
                                             x:Name="btn_shift" Click="Btn_Click"
                                             Grid.Row="1"
                                             Grid.Column="0"
                                             Content="Shift" Tag="160"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="1" Content="z"  Tag="90"/>
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="2"   Content="x" Tag="88" />
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="3"   Content="c" Tag="67" />
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="4"   Content="v" Tag="86" />
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="5"   Content="b"  Tag="66"/>
                        <local:FuncButtonControl Grid.Row="2" Grid.Column="6"   Content="n" Tag="78" />
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="7"   Content="m"  Tag="77"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="8"   Content="," Tag="219"   ShiftValue="&lt;" />
                        <!--188-->
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="9"   Content="." Tag="119"  ShiftValue="&gt;" />
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="10"   Content="/" Tag="111"  ShiftValue="?" />
                        <local:FuncButtonControl Grid.Row="1" Grid.Column="11" Content="∧" Tag="38"/>
                        <local:FuncButtonControl Style="{StaticResource Resource.Style.FuncButton.Lenght.2.5}" IsCheckedControl="True" Grid.Row="1" Grid.Column="14" Content="Shift" Tag="161"/>
                    </Grid>
                    <Grid Grid.Row="5 ">
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition Width="5*"/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                            <ColumnDefinition/>
                        </Grid.ColumnDefinitions>
                        <local:FuncButtonControl IsEnabled="False"  IsCheckedControl="True" Grid.Row="1" Grid.Column="0"  Content="Fn" Tag="49"/>
                        <local:FuncButtonControl  Click="Btn_Click"  IsCheckedControl="True" Grid.Row="1" Grid.Column="1" Content="Ctrl"  Tag="162"/>
                        <local:FuncButtonControl x:Name="btn_win" Click="Btn_Click"  IsEnabled="True"  IsCheckedControl="True" Grid.Row="1" Grid.Column="2"   Content="Win" Tag="91"/>
                        <local:FuncButtonControl  Click="Btn_Click" IsCheckedControl="True" Grid.Row="1" Grid.Column="3"   Content="Alt" Tag="164" />
                        <local:FuncButtonControl Grid.Row="2" Style="{StaticResource Resource.Style.FuncButton.Lenght.5.5}" Grid.Column="4" Content="Space" Tag="32"/>
                        <local:FuncButtonControl Click="Btn_Click"  IsCheckedControl="True" Grid.Row="2" Grid.Column="5"   Content="Alt"  Tag="165"/>
                        <local:FuncButtonControl Click="Btn_Click"  IsCheckedControl="True" Grid.Row="2" Grid.Column="6"   Content="Ctrl" Tag="163" />
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="7"   Content="&lt;"  Tag="37"/>
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="8"   Content="∨" Tag="40" />
                        <local:FuncButtonControl Grid.Row="3" Grid.Column="9"   Content="&gt;" Tag="39" />
                        <local:FuncButtonControl IsEnabled="False" Style="{StaticResource Resource.Style.FuncButton.Lenght.2}" Grid.Row="1" Grid.Column="10" Grid.ColumnSpan="2"   Content="右键" Tag="2"/>
                    </Grid>
                </Grid>
            </Grid>
        </Border>



    展开全文
  • WPF 虚拟键盘 屏幕键盘 系统源码
  • 使用Keybd_event,wpf 开发实现的全键盘和数字键盘键盘字体随键盘大小自适应,测试使用通过
  • WPF虚拟键盘输入

    2013-04-12 12:29:18
    WPF的TextBox Password虚拟键盘输入dll文件与使用例子
  • [分享]WPF 虚拟键盘

    2016-12-07 22:58:00
    思路:既然是虚拟键盘,那么我的目的就是模拟键盘输入即可。 1.模拟键盘输入 模拟键盘输入?那么肯定免不了调用Win32API了。所以查看下Win32API是否提供了键盘输入的功能,找到发送按键的函数:   [DllImport...

    场景:用WPF做触屏的软件难免会需要用户输入的问题,至少是简单的数字,这个时候就免不了需要键盘输入。

    思路:既然是虚拟键盘,那么我的目的就是模拟键盘输入即可。

    1.模拟键盘输入

    模拟键盘输入?那么肯定免不了调用Win32API了。所以查看下Win32API是否提供了键盘输入的功能,找到发送按键的函数:



    [DllImport("user32.dll", EntryPoint = "PostMessageW")]

    public static extern int PostMessage( int hwnd,int wMsg,int wParam,int lParam);

    2.找到需要输入的控件:

    [DllImport("user32.dll")]
    public static extern int GetFocus();

    3.找到当前窗体



    [DllImport("user32.dll")]
    public static extern int GetForegroundWindow();

    [DllImport("user32.dll")]
    public static extern int AttachThreadInput(int idAttach,int idAttachTo,int fAttach);

    [DllImport("user32.dll")]
    public static extern int GetWindowThreadProcessId(int hwnd, int lpdwProcessId);



    关键代码:

    (1)Win32API功能类:

       /// <summary>
        /// Win32接口功能类
        /// </summary>
        public static class Win32API
        {
            /// <summary>
            /// 键入
            /// </summary>
            public const int WM_KEYDOWN = 0x100;

            [DllImport("user32.dll", EntryPoint = "SendMessageW")]
            public static extern int SendMessage(
                 int hwnd,
                 int wMsg,
                 int wParam,
                 int lParam);
            [DllImport("user32.dll", EntryPoint = "PostMessageW")]
            public static extern int PostMessage(
                 int hwnd,
                 int wMsg,
                 int wParam,
                 int lParam);
            [DllImport("user32.dll")]
            public static extern int GetForegroundWindow();
            [DllImport("user32.dll")]
            public static extern IntPtr GetLastActivePopup(IntPtr hWnd);
            [DllImport("user32.dll")]
            public static extern bool SetForegroundWindow(IntPtr hWnd);
            [DllImport("user32.dll")]
            public static extern int GetFocus();
            [DllImport("user32.dll")]
            public static extern int AttachThreadInput(
                 int idAttach,
                 int idAttachTo,
                 int fAttach);
            [DllImport("user32.dll")]
            public static extern int GetWindowThreadProcessId(
                 int hwnd,
                 int lpdwProcessId);
            [DllImport("kernel32.dll")]
            public static extern int GetCurrentThreadId();

            [DllImport("user32.dll")]
            public static extern IntPtr GetDesktopWindow();
        }

    (2)发送按键实现

         /// <summary>
            /// 发送按键
            /// </summary>
            /// <param name="asiiCode">键盘ascii码</param>
            private void SendKey(byte asiiCode)
            {
                AttachThreadInput(true);
                int getFocus = Win32API.GetFocus();
                //向前台窗口发送按键消息
                Win32API.PostMessage(getFocus, Win32API.WM_KEYDOWN, asiiCode, 0);
                AttachThreadInput(false); //取消线程亲和的关联
            }
            /// <summary>
            /// 设置线程亲和,附到前台窗口所在线程,只有在线程内才可以获取线程内控件的焦点
            /// </summary>
            /// <param name="b">是否亲和</param>
            private void AttachThreadInput(bool b)
            {
                Win32API.AttachThreadInput(
                       Win32API.GetWindowThreadProcessId(
                       Win32API.GetForegroundWindow(), 0),
                       Win32API.GetCurrentThreadId(), Convert.ToInt32(b));
            }

    (3)附上按键ascii码表:

    4.时间关系就做个简单的吧:



    欢迎指正,转载请注明出处http://www.cnblogs.com/xinwang/p/6143169.html



    转载于:https://www.cnblogs.com/xinwang/p/6143169.html

    展开全文
  • WPF .net Framework 4.6.2 虚拟键盘自定义控件;适合新手借鉴、程序应急使用;直接上源码,可自行修改; 虚拟键盘(支持英文,数字输入,及部分特殊字符(特殊字符都为英文字符)) 1.0版本;后续慢慢增加其他功能及其他...
  • wpf 触屏虚拟键盘支持中英文切换

    热门讨论 2016-10-10 11:50:18
    wpf 触控下的虚拟键盘,支持中英文切换,根据textbox显示虚拟键盘位置
  • Visual Studio 2017用C#WPF实现自定义软键盘(虚拟键盘)
  • 在使用WPF做触屏功能开发时,发现有时候对触屏支持不甚友好,特别是虚拟键盘。于是上网找资料,发现一般有两种方法,一种是打开C:\Program Files\Common Files\microsoft shared\ink\目录下的TapTip.exe程序,可后来...

    在使用WPF做触屏功能开发时,发现有时候对触屏支持不甚友好,特别是虚拟键盘。于是上网找资料,发现一般有两种方法,一种是打开C:\Program Files\Common Files\microsoft shared\ink\目录下的TapTip.exe程序,可后来发现该方法实现概率太低。所以没有实行。另一种方法是打开C:\Windows\System32\目录下的osk.exe文件,但我在测试时使用
    Process.Start(@“C:\Windows\System32\osk.exe”)
    却总是报错,说是找不到文件。于是我想单独把那个文件拷贝出来,看看能否使用,后来发现只能用管理员模式才能够打开。
    于是,我便把osk.exe文件拷贝到程序目录下,然后写了个方法:
    public void ExecuteAsAdmin()
    {
    Process proc = new Process();
    proc.StartInfo.FileName =Environment.CurrentDirectory+ @"\Resources\ExcuteFile\osk.exe";
    proc.StartInfo.UseShellExecute = true;
    proc.StartInfo.Verb = “runas”;
    proc.Start();
    }
    唯一不好之处在于弹出的虚拟键盘位置不是很理想,需要自己调节。
    经测试,可以运行,大家也可以试试。

    展开全文
  • WPF中软键盘调用

    2018-07-22 09:06:36
    1 wpf 中显示、隐藏虚拟键盘的实现; 2 基本功能已实现,具体还要根据实际完善; 3 主要为了测试使用
  • WPF开发的触摸屏虚拟键盘,支持中英文切换,样式简洁,可以自定义调用。
  • WPF 禁用TextBox的触摸后自动弹出虚拟键盘 原文:WPF 禁用TextBox的触摸后自动弹出虚拟键盘前言 & 问题 如下截图,TextBox,在触摸点击后,会自动弹出windows的虚拟键盘。 如何,禁用键盘的自动...
    原文:WPF 禁用TextBox的触摸后自动弹出虚拟键盘

    前言 & 问题

    如下截图,TextBox,在触摸点击后,会自动弹出windows的虚拟键盘。

    如何,禁用键盘的自动弹出?

    调用虚拟键盘

    通过调用TapTip.exe或者osk.exe,主动弹出虚拟键盘

    详细调用可参考:c#调用windows虚拟键盘

    如何禁用键盘的弹出

    TextBox在触摸点击后,会自动弹出虚拟键盘,是因为在控件中作了封装。

    处理方案:重写TextBox的方法OnCreateAutomationPeer,返回一个UIElementAutomationPeer而不是AutomationPeer。

    可能原因:TextBox自定义实现中返回的是AutomationPeer,而UIElementAutomationPeer继承AutomationPeer,重写了相关键盘属性。

    猜测与HasKeyboardFocusCore属性有关。

    方案参考:

     1     /// <summary>
     2     /// 禁用自动弹出虚拟键盘的TextBox控件
     3     /// </summary>
     4     public class TextBoxNoAutoKeyboard : TextBox
     5     {
     6         protected override AutomationPeer OnCreateAutomationPeer()
     7         {
     8             return new FrameworkElementAutomationPeer(this);
     9         }
    10     }

     以上参考自:【stackoverflow】“Hide” text box from automatic Win10 keyboard showing

    posted on 2019-03-25 23:14 NET未来之路 阅读(...) 评论(...) 编辑 收藏

    转载于:https://www.cnblogs.com/lonelyxmas/p/10597521.html

    展开全文
  • WPF自定义软键盘

    2018-02-09 10:55:15
    WPF开发的触摸屏虚拟键盘,用WPF开发的触摸屏虚拟键盘,支持中英文切换,样式简洁,可以自定义调用。
  • 如下图所示,目前是当窗体中的文本框获取焦点后将 自定义虚拟键盘(keyboard.xaml) 通过keyboard.show() 显示出来,但是文本框获取不到通过虚拟键盘输入的值,反而是电脑上任意一个软件中能输入文本值的地方,...
  • 要实现就点击输入框时,弹出软键盘,点击其他地方...当手触击textbox时,调用系统软键盘.exe 现在有问题:如何判断 当手触击其他地方时,关闭软键盘。 没有键盘鼠标,完全触控,这类问题如何解决,谢谢大家。。。
  • 之前使用QT的虚拟键盘觉得挺好用的,后来封装成独立程序给其他程序使用。QT运行环境加上封装dll 七八个文件,给其他程序使用很不方便,于是自己就简单制作了一个通用的组件给WPF程序使用。 界面 文件大小 只有569K...
  • WPF 自由拖拽控件

    千次阅读 2017-12-20 11:21:51
    为了演示,布局文件很简单,只是放了我一个自己做的自定义虚拟键盘控件,也可以放其他各种控件,例如button…. <Grid > ,75,0,0" VerticalAlignment="Top" Width="588
  • 我的控件已经写好了,是一个虚拟键盘,现在的做法是获取textbox的焦点, 判断控件与界面之间的大小关系使其能在固定的位置显示,但现在我想要实 现其能在界面上自由拖动/移动,暂时没有想到什么好的办法。网上有说...
  • WPF编程宝典 part1

    2015-07-20 23:33:59
    19.3.1 虚拟化 518 19.3.2 项容器再循环 519 19.3.3 缓存长度 519 19.3.4 延迟滚动 520 19.4 验证 521 19.4.1 在数据对象中进行验证 521 19.4.2 自定义验证规则 526 19.4.3 响应验证错误 528 19.4.4 获取错误列表 ...
  • 1、WPF的一个触摸屏项目,需要输入姓名,但是屏幕不支持汉字输入,使用虚拟键盘不稳定,为了解决该问题特此进行处理。 2、新建一个类转换类,里面初始化一个数组,数组包含拼音,以及拼音下的常用的汉字。 3、根据...
  • 现在需要做个功能在windows平台上实现类似android和ios那样的虚拟键盘获取到输入焦点自动呼出,失去焦点自动关闭,使用普通的带输入控件可以获取到焦点的事件所以做起来并不难,但是现在的问题是客户主要是在程序...
  • WPF项目调用win10自带触摸键盘,适用于开发触摸屏项目,含示例和源码demo。 WPFTabTip.TabTipAutomation.IgnoreHardwareKeyboard=...当任何此类元素获得焦点时,虚拟键盘将打开,而当元素失去焦点时,将会关闭。

空空如也

空空如也

1 2
收藏数 30
精华内容 12
关键字:

wpf虚拟键盘
