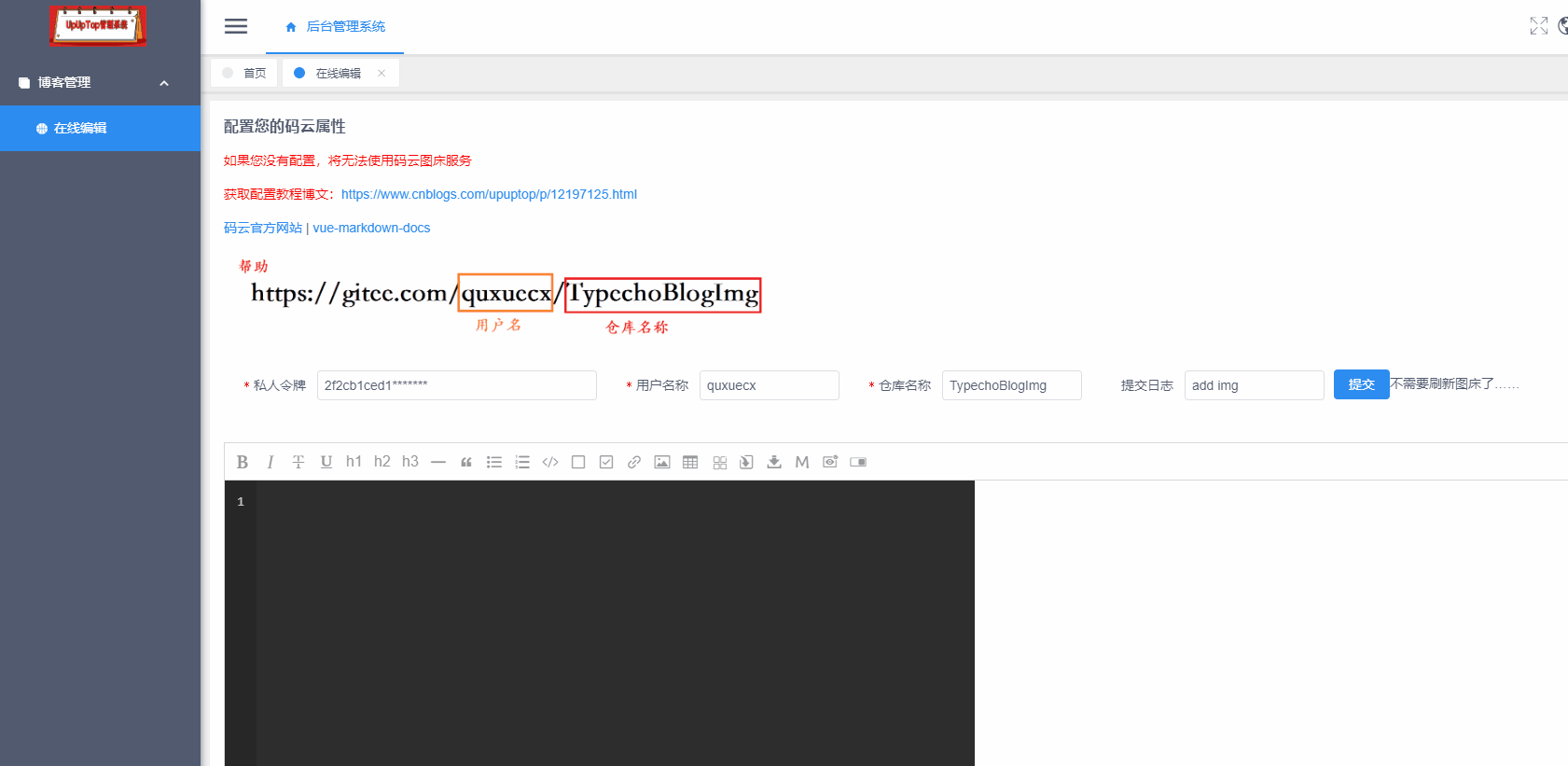

效果

前言
第一版已完成,这篇文章是在第一版的基础上进行改造升级了。第一版的详细文章请见>>>
https://blog.csdn.net/pyfysf/article/details/103990753
https://www.cnblogs.com/upuptop/p/12197125.html

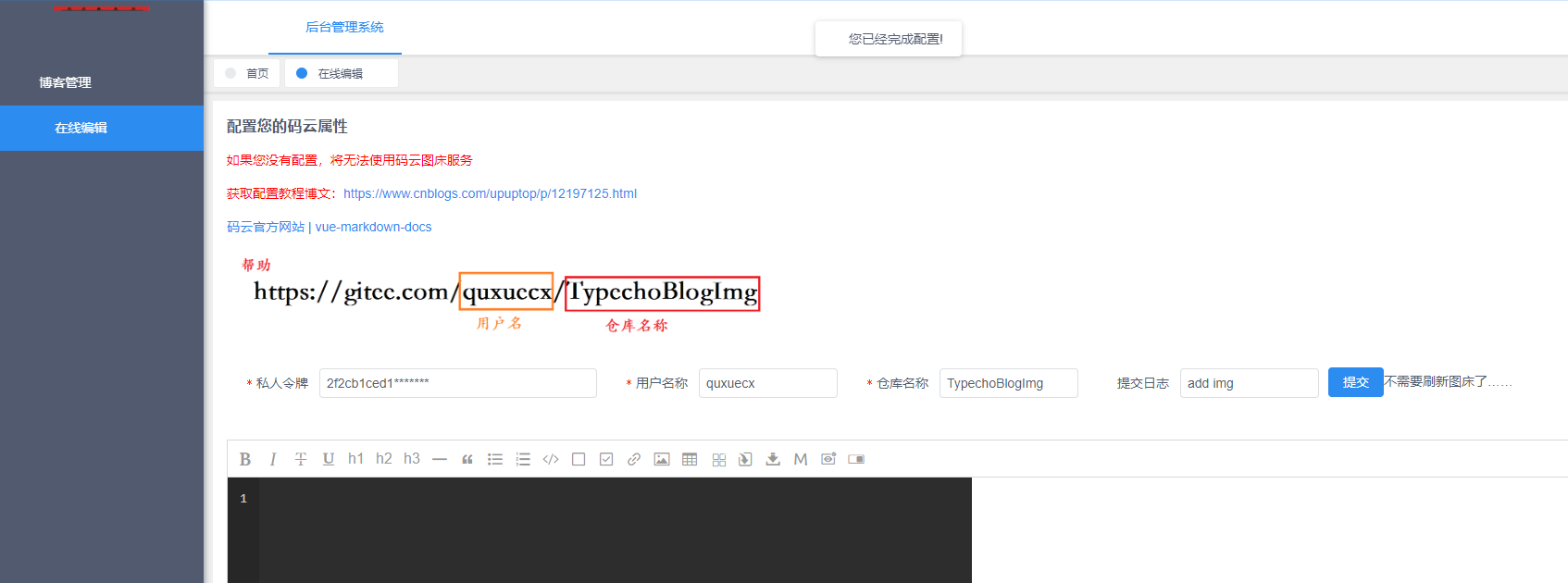

第一版完成的预览图,目前我这里已经开发好了免费图床多人版本,并且已经部署到服务器上了,服务器比较廉价,访问速度一般。如果想使用免费图床的朋友们,可以添加我微信(pyfysf_123)领取免费账号哟!

第一个版本的缺陷
V1.0 的做法逻辑是 利用gitee的gitpage服务,通过上传文件,将文件链接转换为gitpage服务的访问地址
,缺陷:因为是使用了gitpage服务,所以每次上传完成之后都需要刷新图床操作(重新发布gitpage),还会出现频繁操作的错误。
解决问题

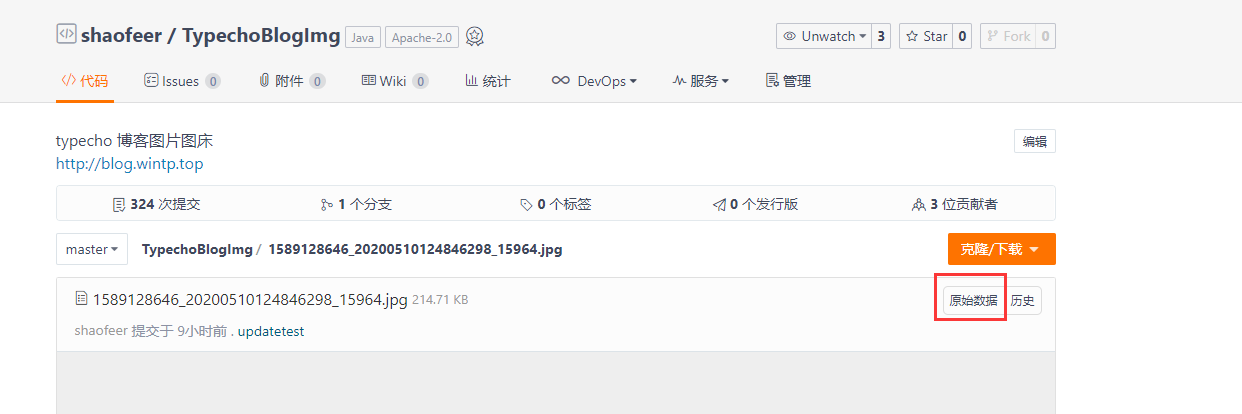

V2.0使用了资源文件的访问方式操作直接对仓库的文件进行raw访问

https://gitee.com/quxuecx/TypechoBlogImg/raw/master/1589128646_20200510124846298_15964.jpg
具体步骤

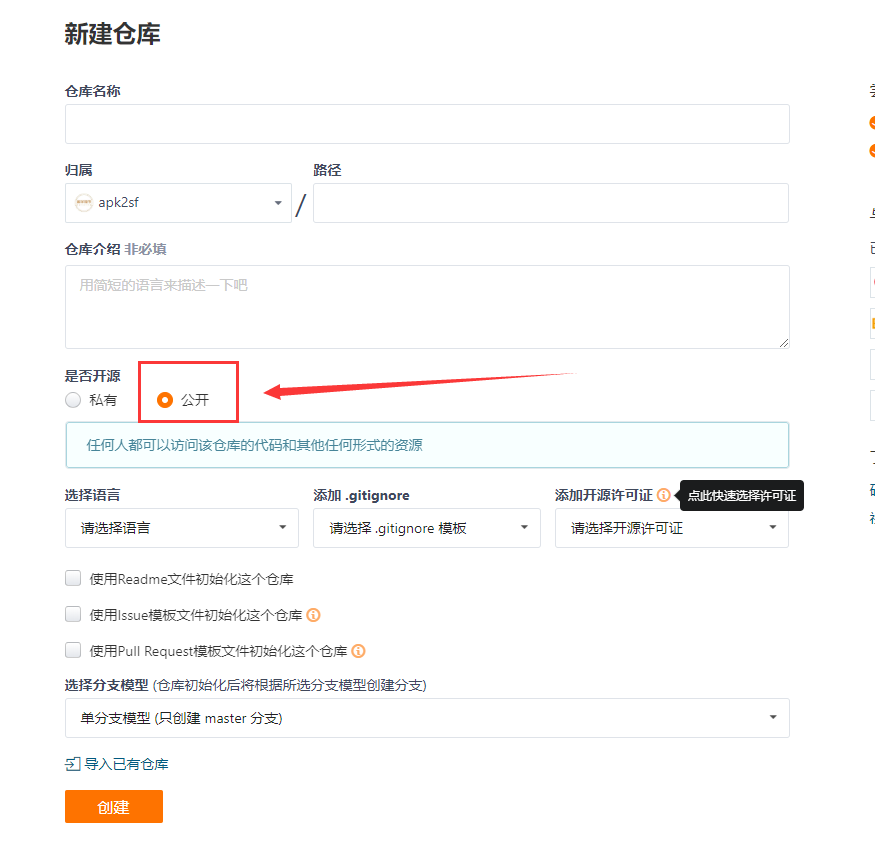

创建一个新的公开仓库

创建成功之后,获取你的仓库git地址:
这个地方后续开发中会用到,一定要记得哦
https://gitee.com/apk2sf/TypechoBlogImg.git
apk2sf: 用户标识
TypechoBlogImg: 仓库名称
不需要开启gitpage服务

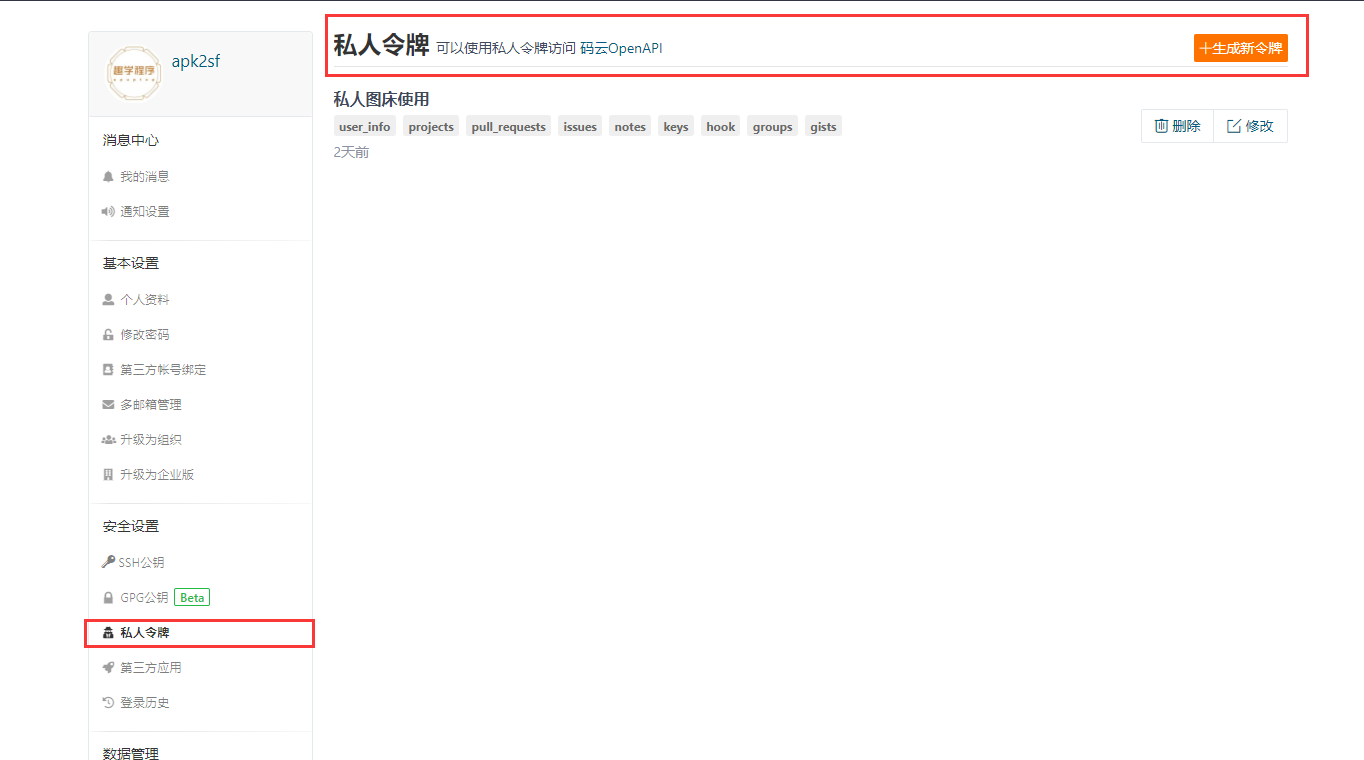

创建私人令牌

开始开发
码云OpenAPI :
https://gitee.com/api/v5/swagger
我们这里主要使用到了

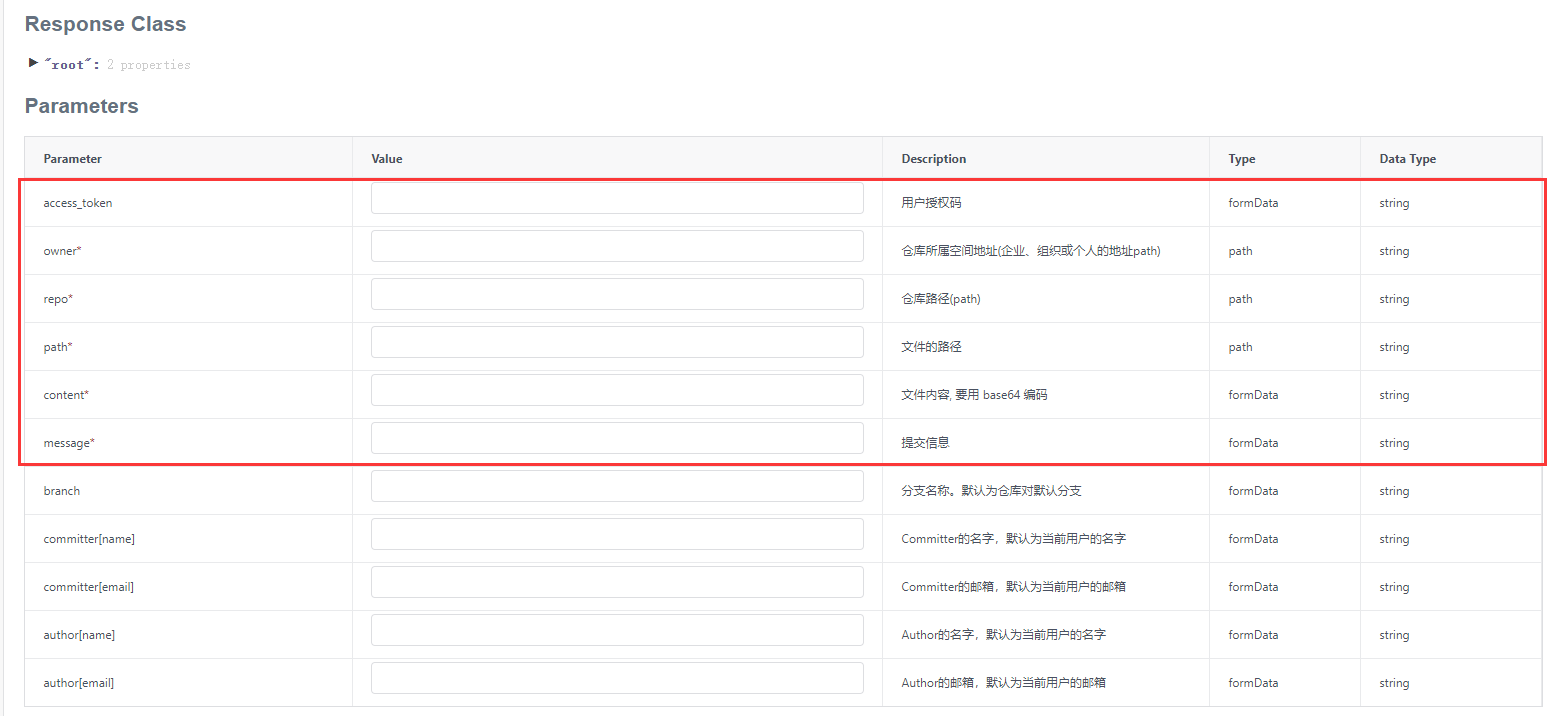

参数列表:点击下方的测试按钮,可以查看到请求地址

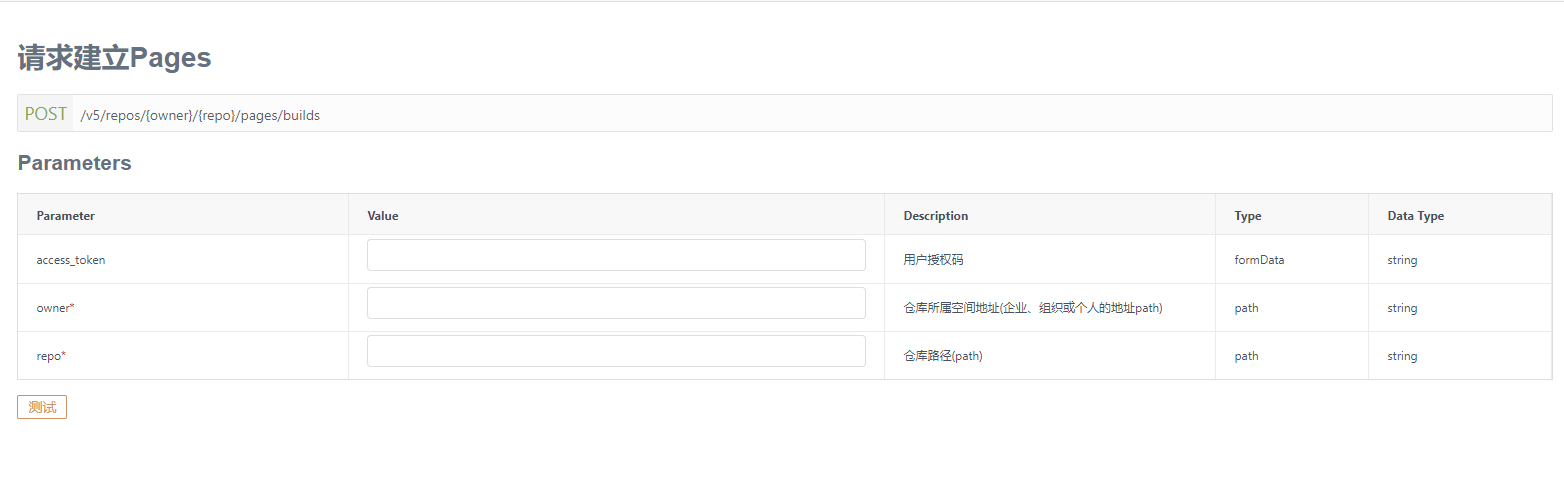

- 请求建立Pages --> 刷新仓库的giteePages服务

码代码
代码基本上没有什么逻辑,通过http协议请求码云的api就好了。下面是后端java代码分享
常量管理类
GiteeImgBedConstant.java
public interface GiteeImgBedConstant {
String ACCESS_TOKEN =
String OWNER =
String REPO_NAME =
String CREATE_REPOS_MESSAGE = "add img";
String IMG_FILE_DEST_PATH = "/img/" + DateUtil.format(new Date(), "yyyy_MM_dd") + "/";
String CREATE_REPOS_URL = "https://gitee.com/api/v5/repos/%s/%s/contents/%s";
String BUILD_PAGE_URL = "https://gitee.com/api/v5/repos/%s/%s/pages/builds";
String GITPAGE_REQUEST_URL =
}
GiteeBlogImgMController.java
import org.springframework.transaction.annotation.Transactional;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.multipart.MultipartFile;
import java.util.HashMap;
import java.util.Map;
import cn.hutool.core.codec.Base64;
import cn.hutool.core.util.IdUtil;
import cn.hutool.http.HttpUtil;
import cn.hutool.json.JSONObject;
import cn.hutool.json.JSONUtil;
import io.swagger.annotations.Api;
import lombok.extern.slf4j.Slf4j;
import top.wintp.upuptopboot.common.constant.GiteeImgBedConstant;
import top.wintp.upuptopboot.common.utils.ResultUtil;
import top.wintp.upuptopboot.common.vo.Result;
@Slf4j
@RestController
@Api(description = "码云博客图床管理接口")
@RequestMapping("/api/giteeBlogImg")
@Transactional
public class GiteeBlogImgMController {
@RequestMapping("saveImg")
@ResponseBody
public Result<Map<String, Object>> saveImg(@RequestParam(value = "imgFile", required = true) MultipartFile imgFile) throws Exception {
Result<Map<String, Object>> result = ResultUtil.success("请求成功");
Map<String, Object> resultMap = new HashMap<String, Object>();
String trueFileName = imgFile.getOriginalFilename();
assert trueFileName != null;
String suffix = trueFileName.substring(trueFileName.lastIndexOf("."));
String fileName = System.currentTimeMillis() + "_" + IdUtil.randomUUID() + suffix;
String paramImgFile = Base64.encode(imgFile.getBytes());
Map<String, Object> paramMap = new HashMap<>();
paramMap.put("access_token", GiteeImgBedConstant.ACCESS_TOKEN);
paramMap.put("message", GiteeImgBedConstant.CREATE_REPOS_MESSAGE);
paramMap.put("content", paramImgFile);
String targetDir = GiteeImgBedConstant.IMG_FILE_DEST_PATH + fileName;
String requestUrl = String.format(GiteeImgBedConstant.CREATE_REPOS_URL, GiteeImgBedConstant.OWNER,
GiteeImgBedConstant.REPO_NAME, targetDir);
System.out.println(requestUrl);
String resultJson = HttpUtil.post(requestUrl, paramMap);
JSONObject jsonObject = JSONUtil.parseObj(resultJson);
if (jsonObject.getObj("commit") != null) {
String resultImgUrl = GiteeImgBedConstant.GITPAGE_REQUEST_URL + targetDir;
resultMap.put("resultImgUrl", resultImgUrl);
System.out.println(resultJson);
result.setCode(200);
} else {
result.setCode(400);
}
result.setResult(resultMap);
return result;
}
}
Result类:
@Data
public class Result<T> implements Serializable{
private static final long serialVersionUID = 1L;
private boolean success;
private String message;
private Integer code;
private long timestamp = System.currentTimeMillis();
private T result;
}
关于代码说明:里面所用到的工具包在Hutool中,具体的import已在博文中提供。如遇到问题,欢迎加我好友哦~ QQ:337081267
后端代码就这样愉快的结束了……
前端代码
V1.0穿越门
与V1.0一致
略……
升级优点
通过raw的地址进行访问,就可以不需要gitpage服务了,也不需要重新刷新图床了。
一个公开的仓库,一个token 既可完成。省略了开通gitpage的服务步骤,修复了无法及时刷新图片的问题。

如果你想使用这样一个图床,但是又不想自己开发,你可以添加我的微信,可以免费使用我的平台……
